CRANKSHAFT/BALANCER Ckt400T

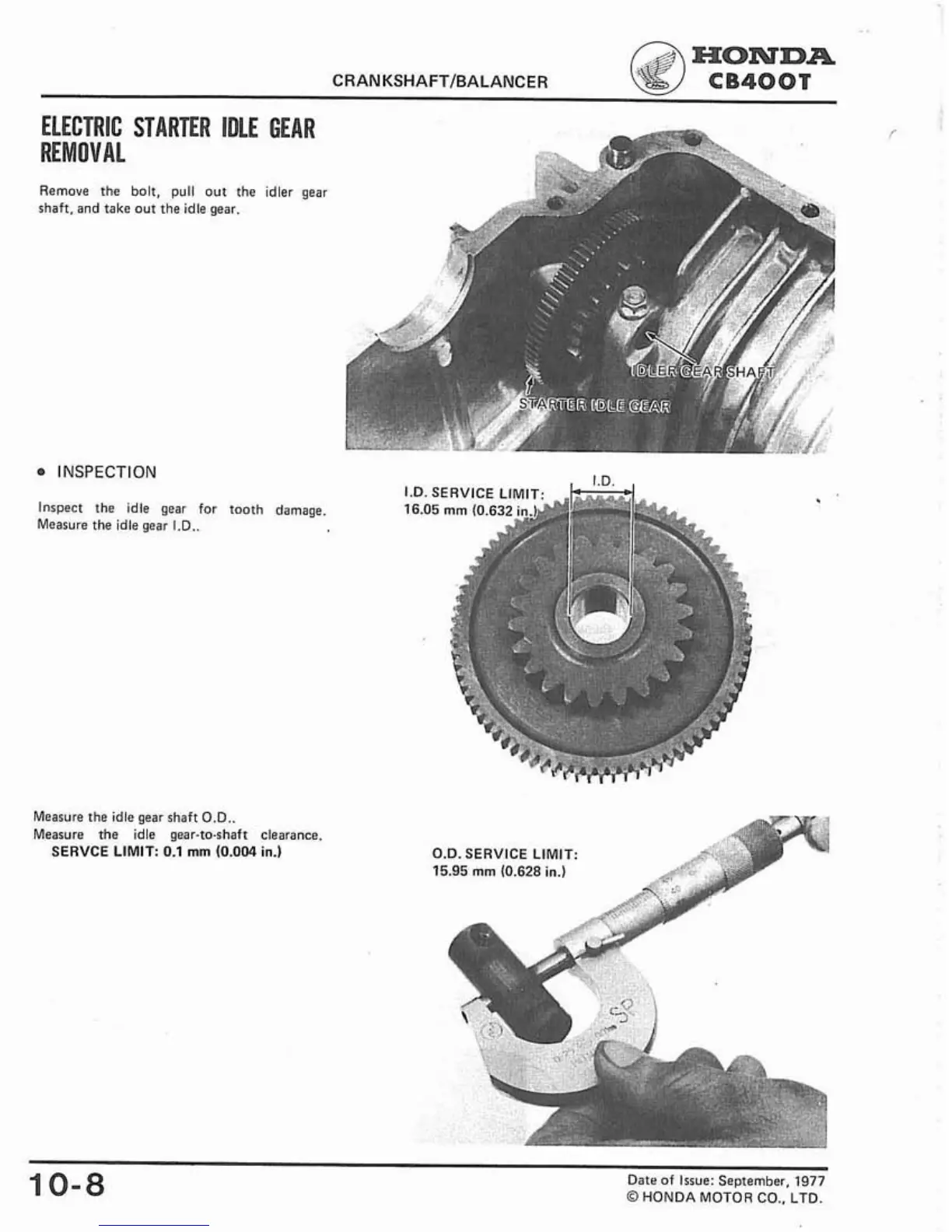

ELECTRIC STARTER IDLE GEAR
REMOVAL
Remove the bolt, pull out the idler gear
shaft. and take out the idle gear.
INSPECTION , r.
Inspect
Measure
the idle gear for tooth damage.
the idle gear
I.D..
Measure the idle gear shaft O.D..
Measure the idle gear-to-shaft clearance.
SERVCE LIMIT: 0.1 mm (0.004 in.)
O.D. SERVICE LIMIT:
15.95 mm 10.628 in.)
. .
10-8
Date of Issue: September, 1977
O HONDA MOTOR CO., LTD.
