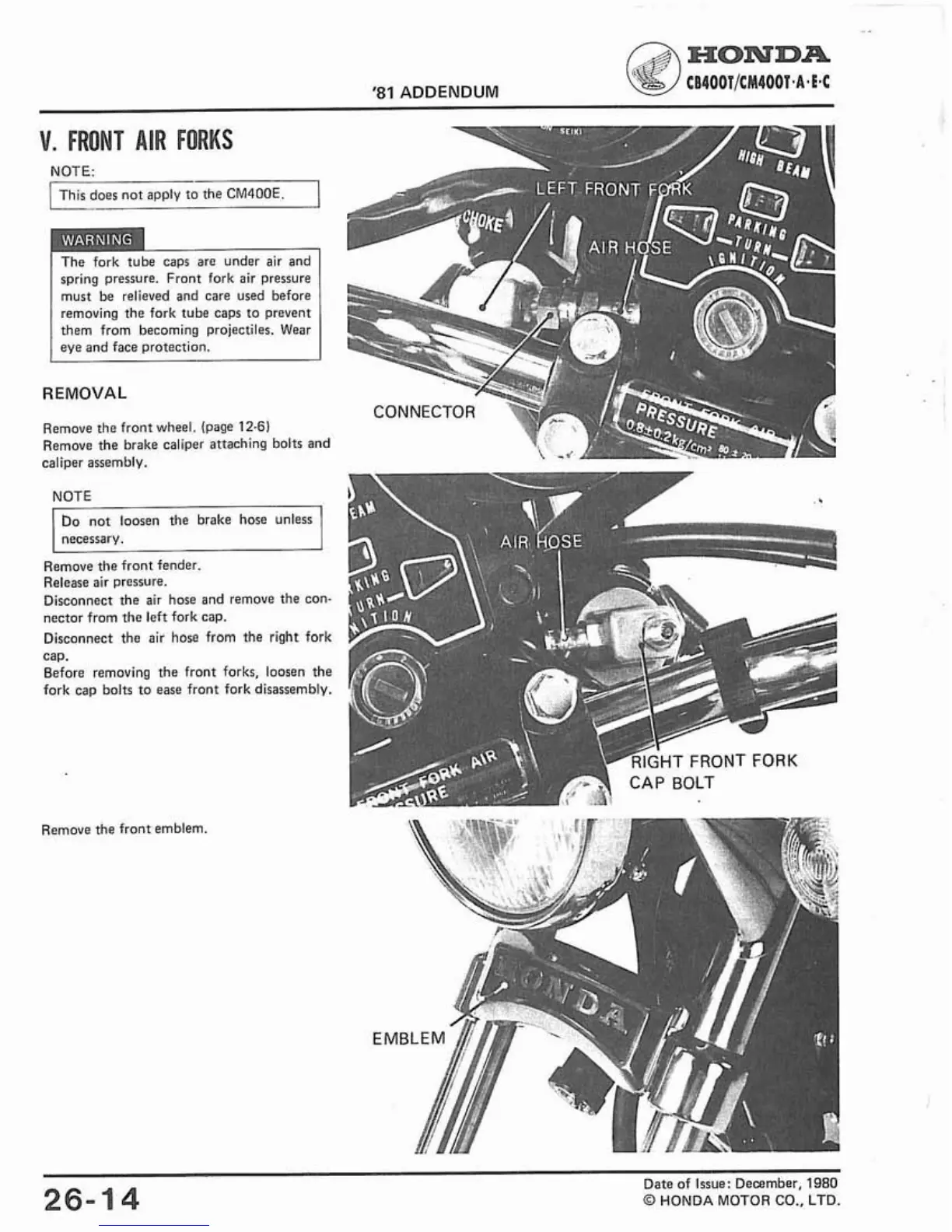

Honda CM400A - Front Air Forks Service

HONDA
'81 ADDENDUM
CB400T/CM400T-A.E.C
V. FRONT AIR FORKS
NOTE:
I This does not apply to the CM4OOE.
1
spring pressure. Front fork air pressure
must be relieved and care used before
removing the fork tube caps to prevent
them from becoming projectiles. Wear
eye and face protection.
REMOVAL
Remove the front wheel. (page 12-6)
Remove the brake caliper attaching bolts and
caliper assembly.
NOTE
Do not loosen the brake hose unless
necessary.
Remove the front fender.
Release air pressure.
Disconnect the air hose and remove the con-
nector from the left fork cap.
Disconnect the air hose from the right fork
cap.
Before removing the front forks, loosen the
fork cap bolts to ease front fork disassembly.
Remove the front emblem.
Date of Issue:
Deoember, 1980
26-14
o HoNDA MOTOR co., LTD.
