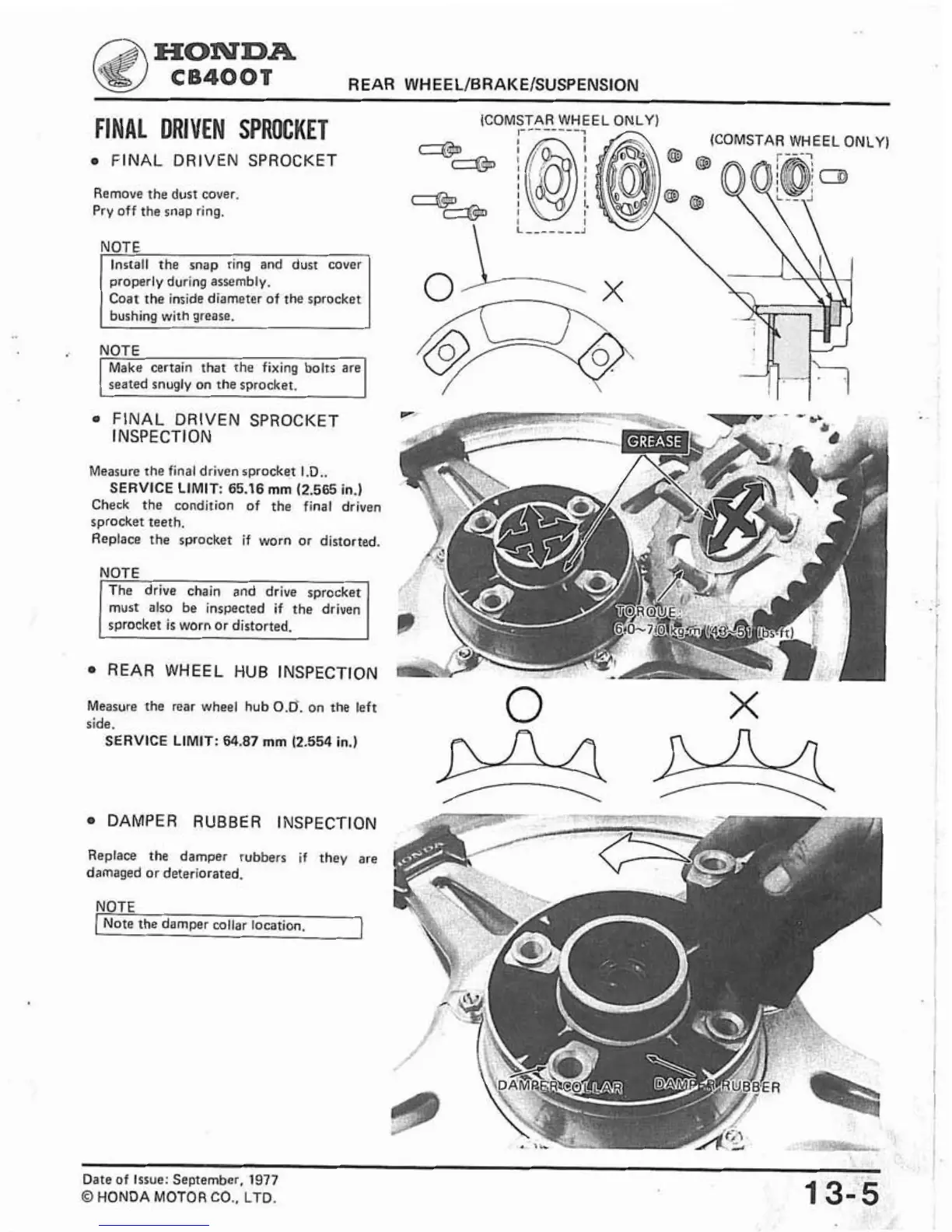

Honda CM400A - Damper Rubber Inspection; Final Driven Sprocket; Final Driven Sprocket Inspection; Rear Wheel Hub Inspection

~.
HONDA
CB40OT
REAR WHEEL/BRAKE/SUSPENSION
FINAL DRIVEN SPROCKET
(COMSTAR WHEEL ONLY)
(COMSTAR WHEEL ONLY)
FINAL DRIVEN SPROCKET
Remove the dust cover.
Pry off the snap ring.
properly during assembly.
Coat the inside diameter of the sprocket
NOTE
Make certain that the fixing bolts are
seated snugly on the sprocket.
FINAL DRIVEN SPROCKET
INSPECTION
Measure the final driven sprocket I.D..
SERVICE LIMIT: 65.16 mm (2.565 in.)
Check the condition of the final driven
sprocket teeth.
Replace the sprocket if worn or distorted.
must also be inspected if the driven
REAR WHEEL HUB INSPECTION
Measure the rear wheel hub O.D. on the left
side.
SERVICE LIMIT:
64.87 mm (2.554 in.)
~
DAMPER RUBBER INSPECTION
Replace the damper rubbers if they are
damaged or deteriorated.
NOTE
( Note the damper collar location.
Date of Issue: September,
1977
