CB400T

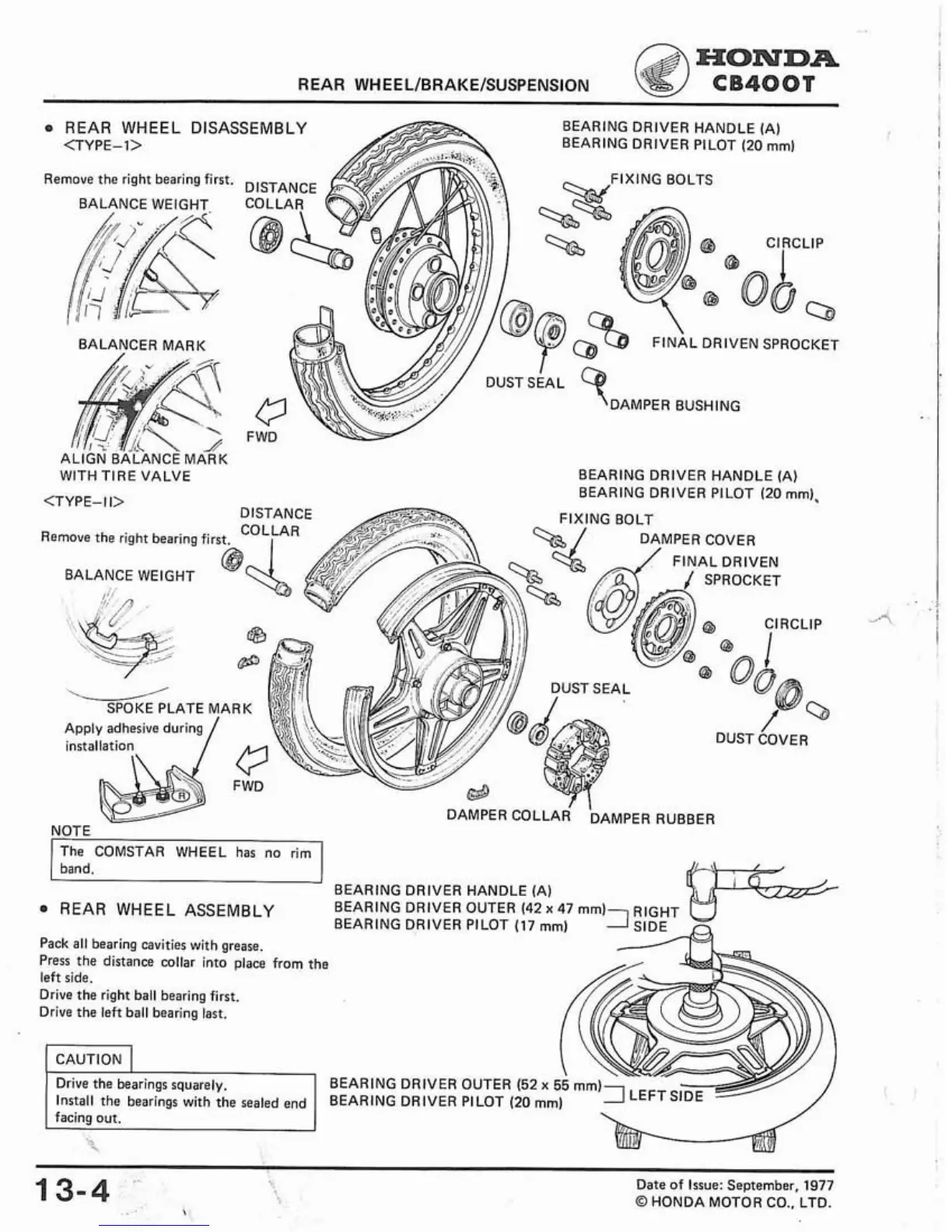

REAR WHEEL DISASSEMBLY
BEARING DRIVER HANDLE (A)
<TYPE-1>
BEARING DRIVER PILOT (20 mm)
Remove the right bearing first.
DIST~NcE
FINAL DRIVEN SPROCKET
DAMPER BUSHING
WITH TIRE VALVE
BEARING DRIVER HANDLE (A)
BEARING DRIVER PILOT
120 mm),
<TYPE-11>
DAMPER COVER
BALANCE WEIGHT
w
SPOKE PLATE MARK
Apply adhesive during
installation
NOTE
The COMSTAR WHEEL has no rim
band.
BEARING DRIVER HANDLE
(A)
REAR WHEEL ASSEMBLY
BEARING DRIVER OUTER (42
x
47 mm)
BEARING DRIVER PILOT (17 mm)
Pack
all
bearing cavities with grease.
Press the distance collar into place from the
left side.
Drive the right ball bearing first.
Drive the left ball bearing last.
BEARING DRIVER OUTER
(52 x
BEARING DRIVER PILOT (20 mm)
-.
1
3-4
Date of Issue: September, 1977
0
HONDA MOTOR CO., LTD.
Install the bearings with the sealed end
