Honda CM400A - Oil Pump Assembly; Oil Pump Installation

HONDA
CB400T
CLUTCHIOIL PUMP

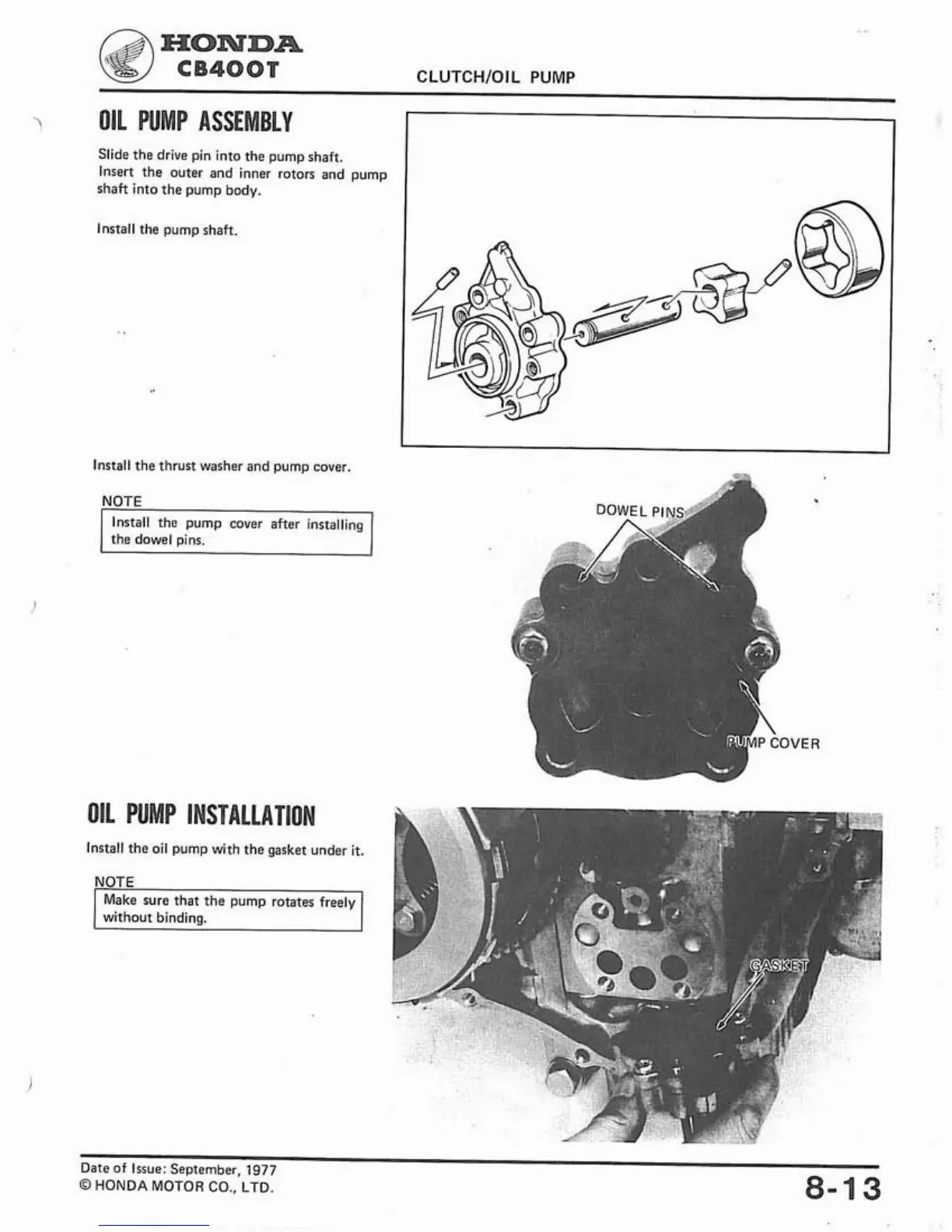

\ OIL PUMP ASSEMBLY
Slide the drive pin into the pump shaft.
Insert the outer and inner rotors and pump
shaft into the pump body.
Install the pump shaft
Install the thrust washer and pump cover.
NOTE
Install the pump cover after installing
the dowel pins.
OIL PUMP INSTALLATION
Install the oil pump with the gasket under it.
NOTE
Make sure that the pump rotates freely
without
bindins.
IER
Date of Issue: September, 1977
O HONDA MOTOR CO., LTD.
8-13
