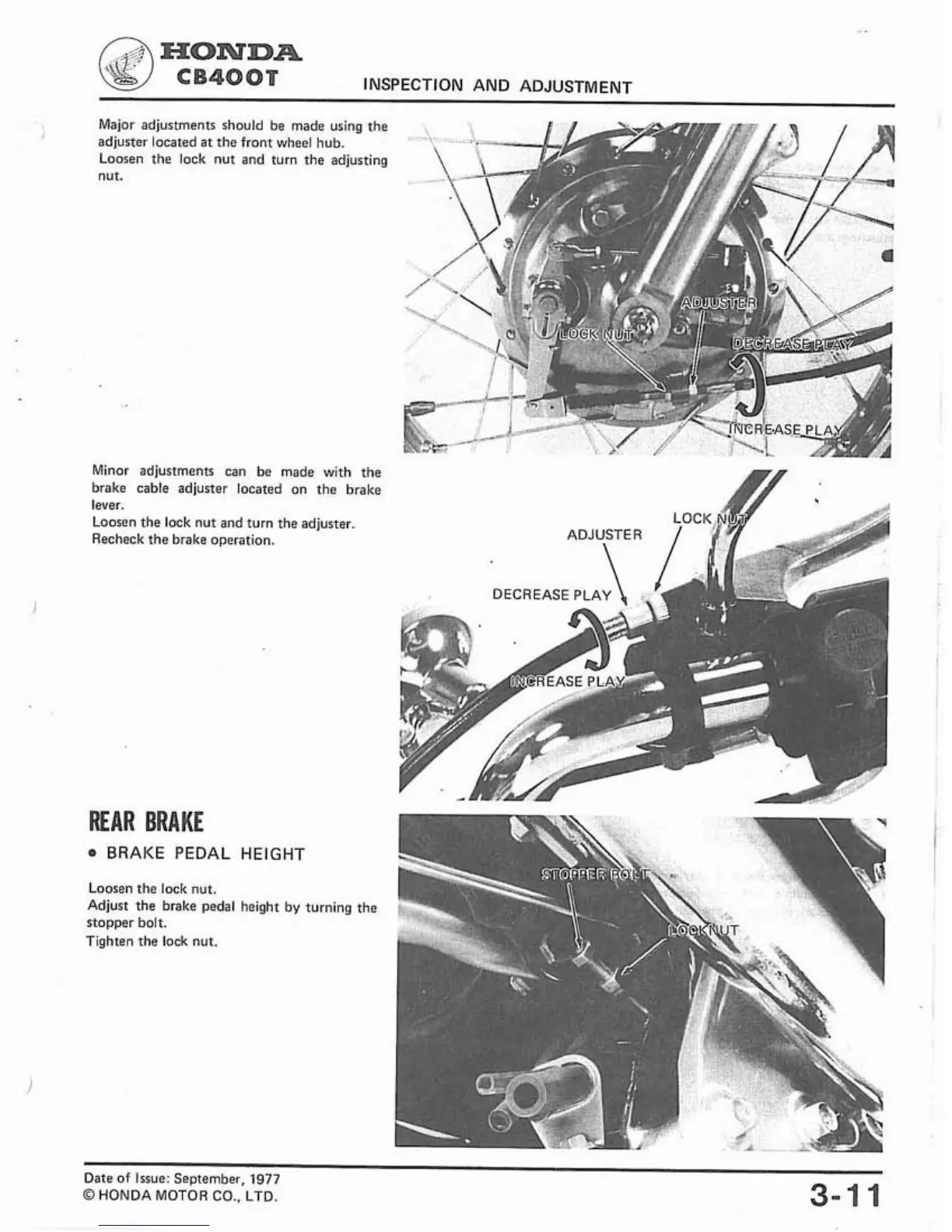

0 INSPECTION AND ADJUSTMENT
Major adjustments should be made using the
adjuster located at the front wheel hub.
Loosen the lock nut and turn the adjusting
nut.
Minor adjustments can be made with the
brake cable adjuster located on the brake
lever.
Loosen the lock nut and turn the adjuster.
Recheck the brake operation.
REAR BRAKE
BRAKE PEDAL HEIGHT
Loosen the lock nut.
Adjust the brake pedal height by turning the
stopper bolt.
Tighten the lock nut.
Date
of Issue: September, 1977
