Honda CM400A - Accelerator Pump Adjustment; Accelerator Pump Inspection

HONDA
'80 ADDENDUM CMlaOOT.40QA

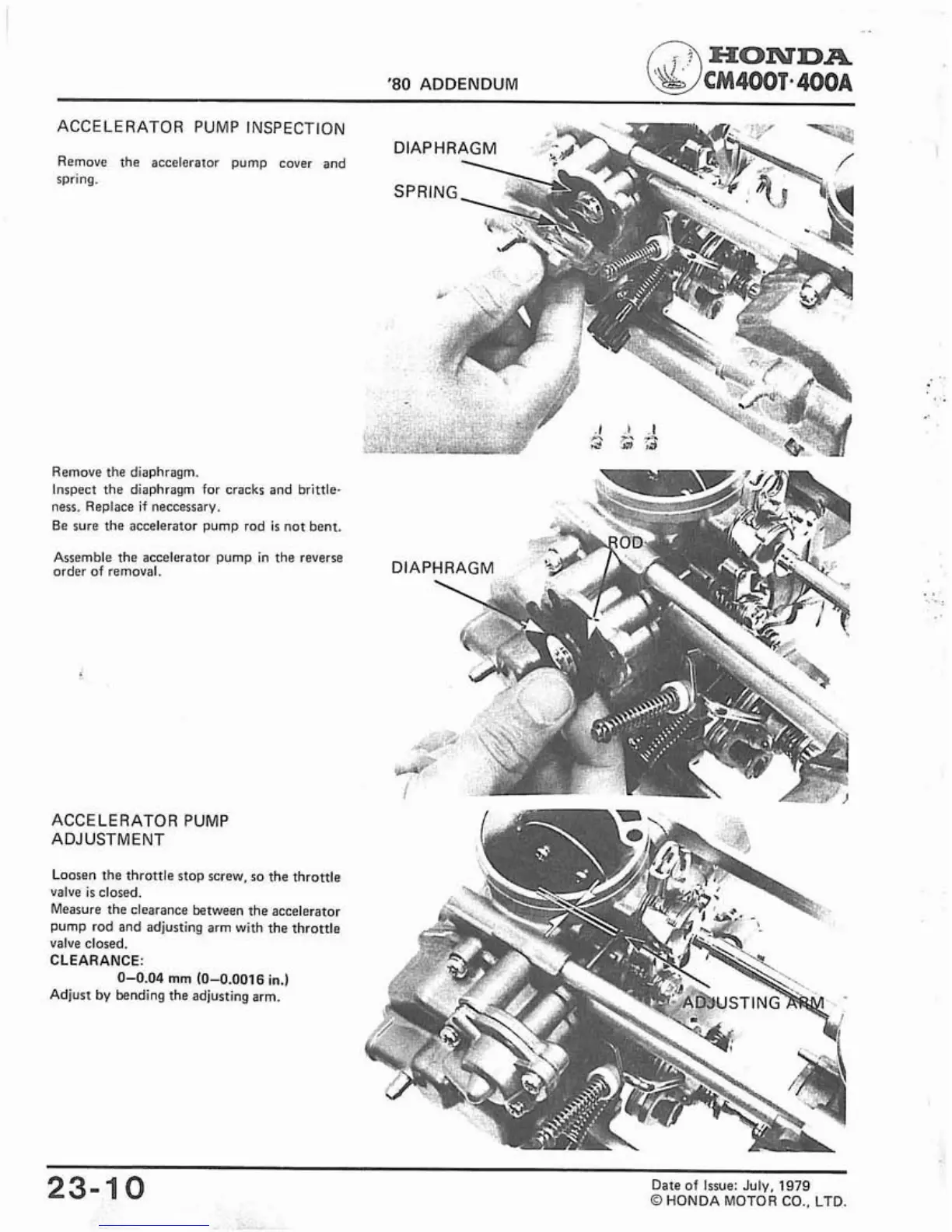

ACCELERATOR PUMP INSPECTION
Remove the accelerator pump cover and
spring.
Remove the diaphragm.
Inspect the diaphragm for cracks and brittle-
ness. Replace
If neccessary.
Be sure the accelerator pump rod is not bent.
Assemble the accelerator pump in the reverse
order of removal.
ACCELERATOR PUMP
ADJUSTMENT
Loosen the throttle stop screw, so the throttle
valve is closed.
Measure the clearance between the accelerator
pump rod and adjusting arm with the throttle
valve closed.
CLEARANCE:
0-0.04 mrn (0-0.0016 in.)
Adjust by bending the adjusting arm.
Date of
Issue: July, 1979
O HONDA MOTOR CO.. LTD.
