HONDA
@
C8400T
1
8.
TECHNIC8
\
1.

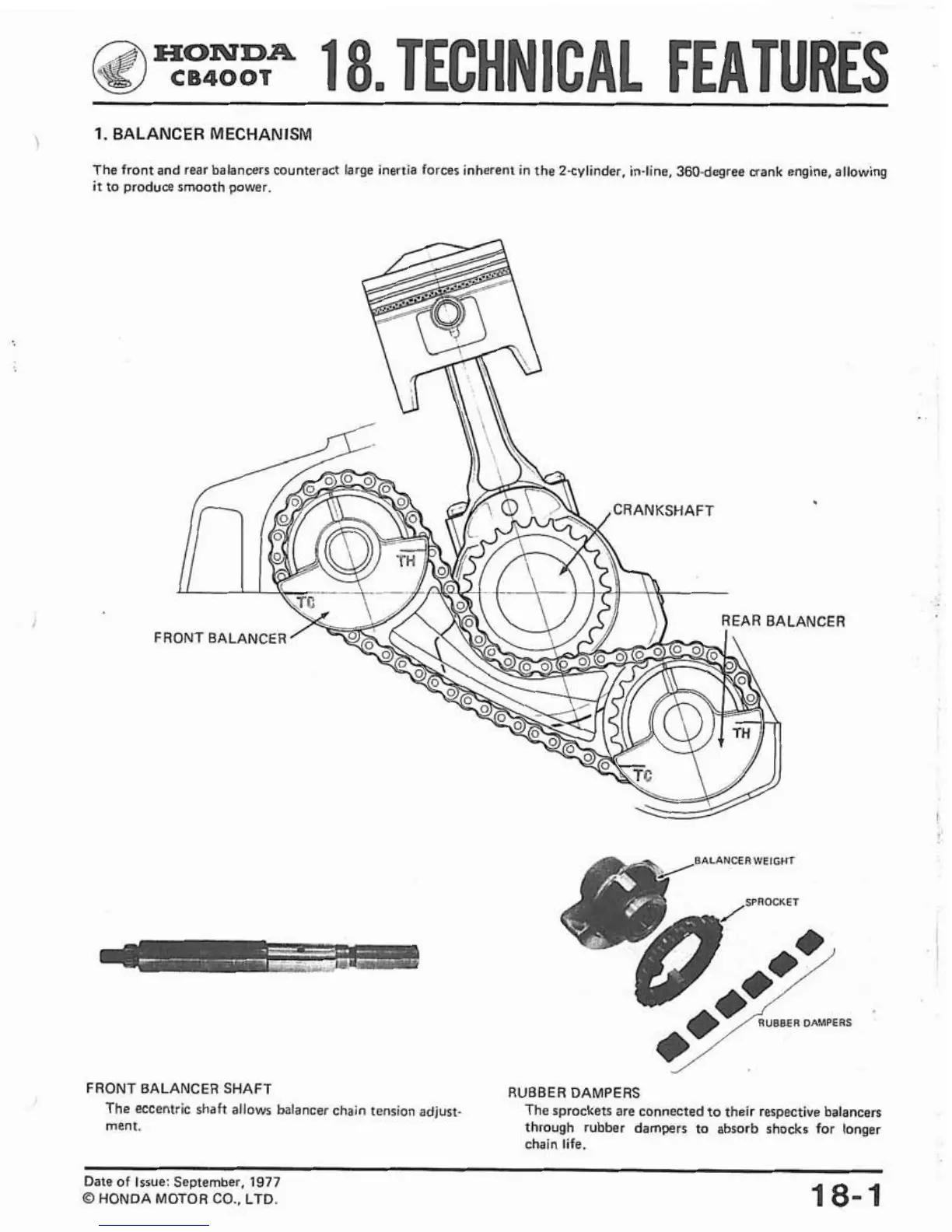

BALANCER MECHANISM
The front and rear balancers counteract large inertia forces inherent in the 2-cylinder, in-line, 360-degree crank engine, allowing
it
to produce smooth power.
FRONT BALANCER SHAFT RUBBER DAMPERS
The eccentric shaft allows balancer chain tension
adjust-
The sprockets are connected to their respective balancers
ment.
through rubber dampers to absorb shocks for longer
chain life.
Date of
Issue: September,
1977
o
HoNDA MOTOR
co.,
LTD.
18-1
