Honda CM400A - A.C. Generator Removal;Installation; Voltage Regulator Performance Test

HONDA
BATTERY/CHARGING SYSTEM CB4OOT

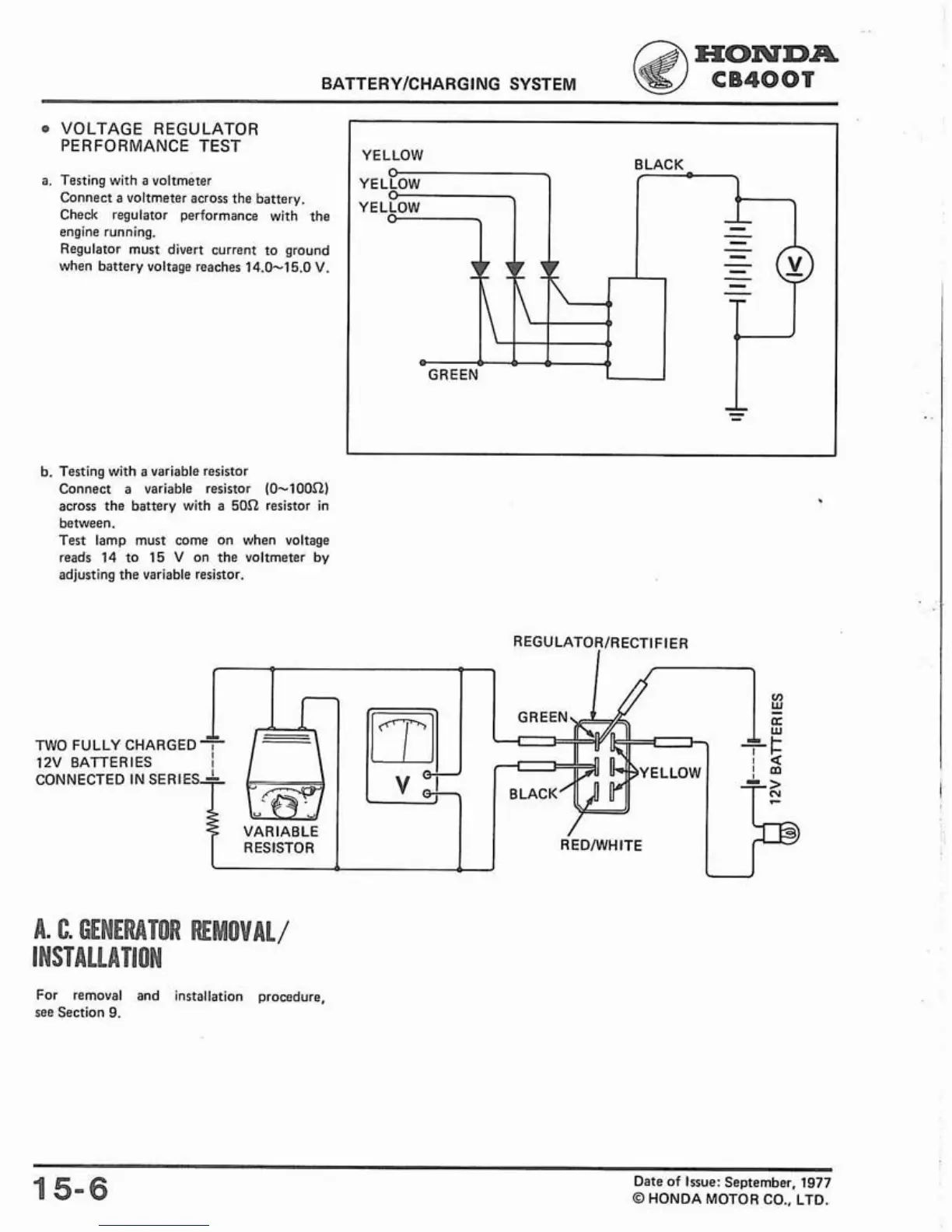

VOLTAGE REGULATOR
PERFORMANCE TEST
a. Testing with a voltmeter
Connect a voltmeter across the battery.
Check regulator performance with the
engine running.
Regulator must divert current to ground
when battery voltage reaches 14.0-15.0
V.
b. Testing with a variable resistor
Connect a variable resistor
(0-100CZ)
across the battery with a 50a resistor in
between.
Test lamp must come on when voltage
reads 14 to 15
V on the voltmeter by
adjusting the variable resistor.
TWOFULLYCHARGED
12V BATTERIES
CONNECTED IN SERIES
A. C. GENERATOR EMOVAL/
l WSTALLATBQM
For removal and installation procedure,
see Section 9.
15-6
Date of Issue: September, 1977
@ HONDA MOTOR CO.. LTD.
