SHOCK
ABSORBER

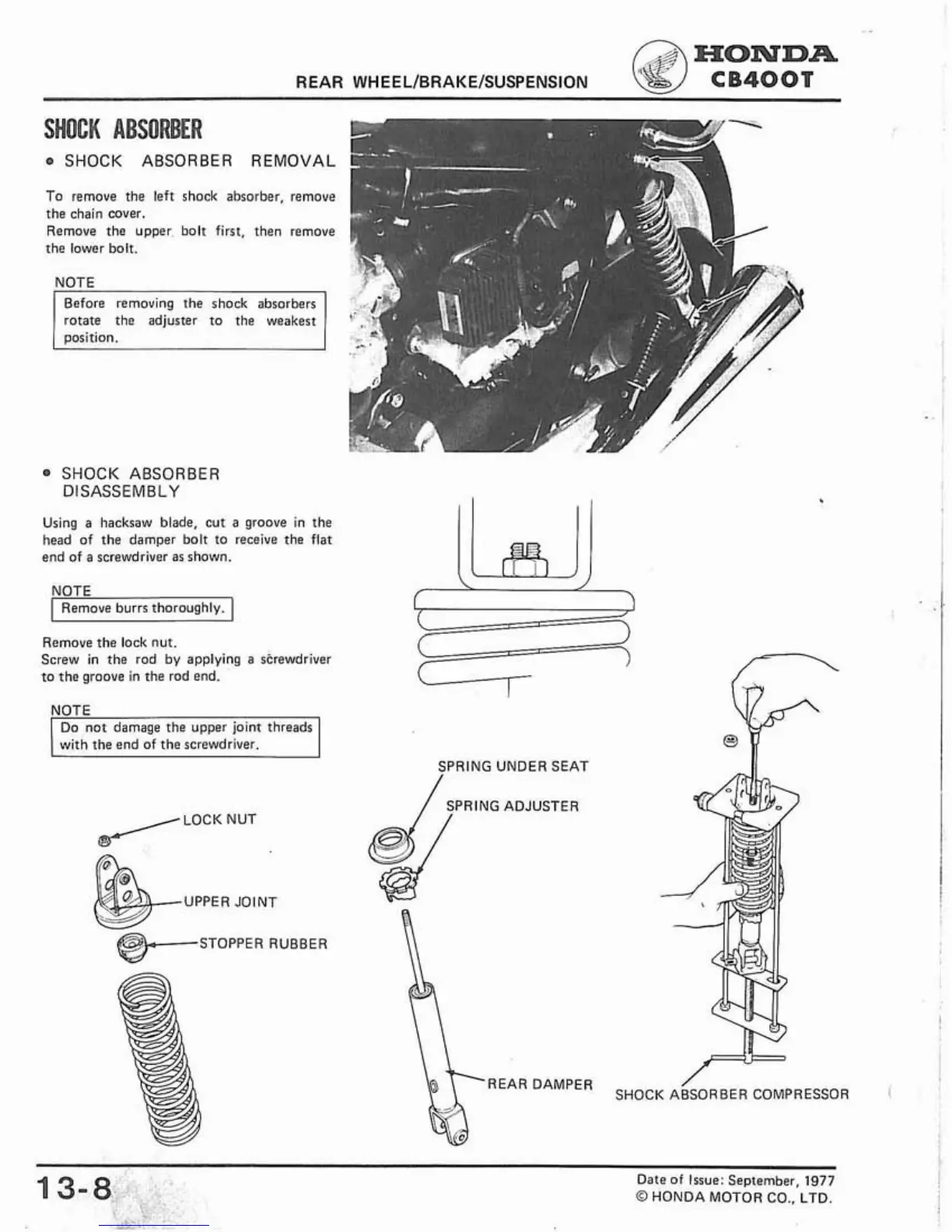

SHOCK ABSORBER REMOVAL
To remove the left shock absorber, remove
the chain cover.
Remove the upper, bolt first, then remove
the lower bolt.
rotate the adjuster to the weakest
SHOCK ABSORBER
DISASSEMBLY
Using a hacksaw blade, cut
a
groove in the
head of the damper bolt to receive the flat
end of
a
screwdriver as shown.
NOTE
Remove burrs thoroughly.
Remove the lock nut.
Screw in the rod by applying
a
screwdriver
to the groove in the rod end.
..-.-
Do not damage the upper joint threads
with the end of the screwdriver.
SPRING UNDER SEAT
/
/
SPRING ADJUSTER
SHOCK
A~SORBER
COMPRESSOR
