Honda CM400A - Brake Master Cylinder Service

HONDA
HYDRAULIC DISC BRAKE CB4OOT

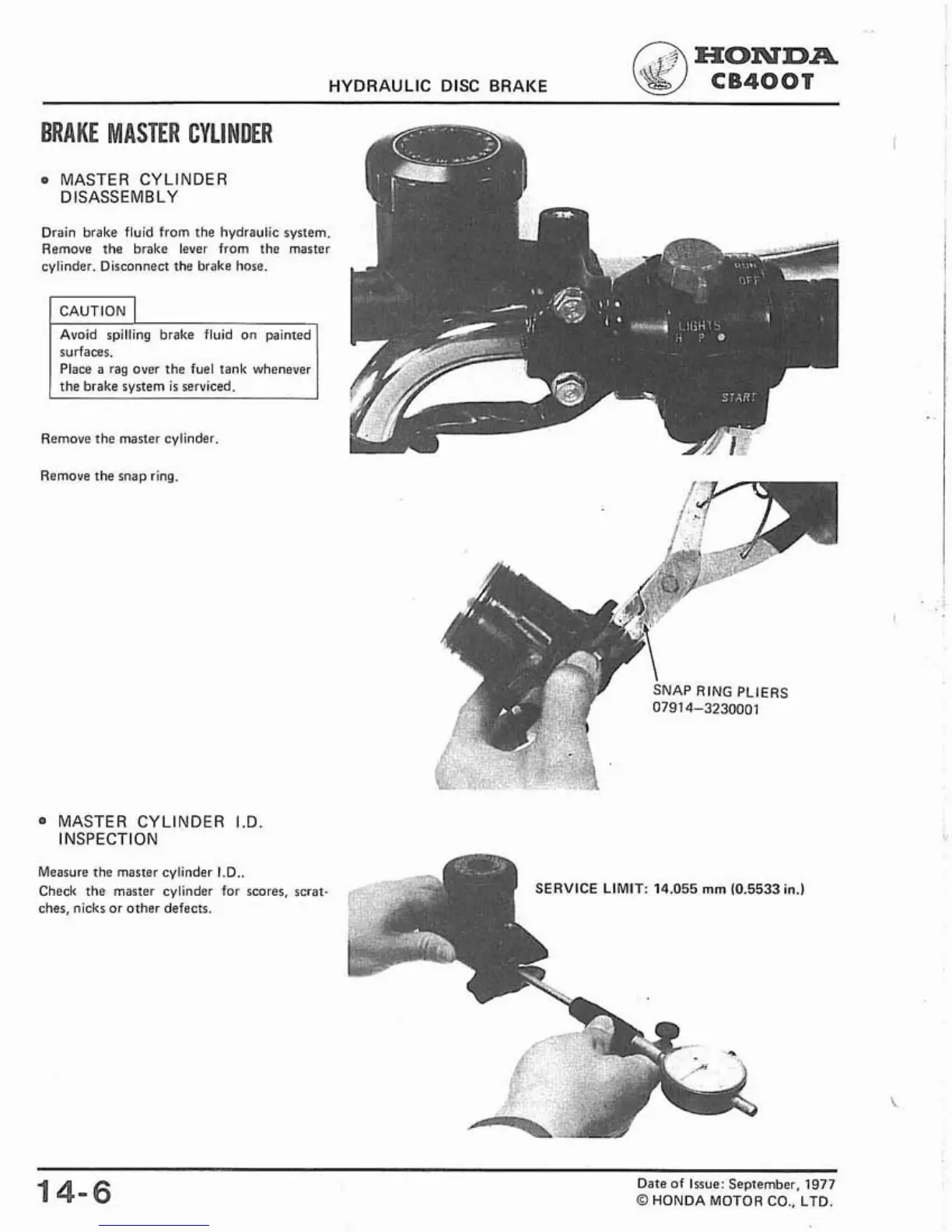

BRAKE MASTER CYLINDER
MASTER CYLINDER
DISASSEMBLY
Drain brake fluid from the hydraulic system.
Remove the brake lever from the master
cylinder. Disconnect the brake hose.
Avoid spilling brake fluid on painted
surfaces.
Place a rag over the fuel tank whenever
Remove the master cylinder
Remove the snap ring
MASTER CYLINDER I.D.
INSPECTION
Measure the master cylinder I.D..
Check the master cylinder for scores, scrat-
SERVICE LIMIT: 14.055 mm 10.5533 in.)
ches, nicks or other defects.
Date of Issue: September,
1977
O HONOA MOTOR CO., LTD.
