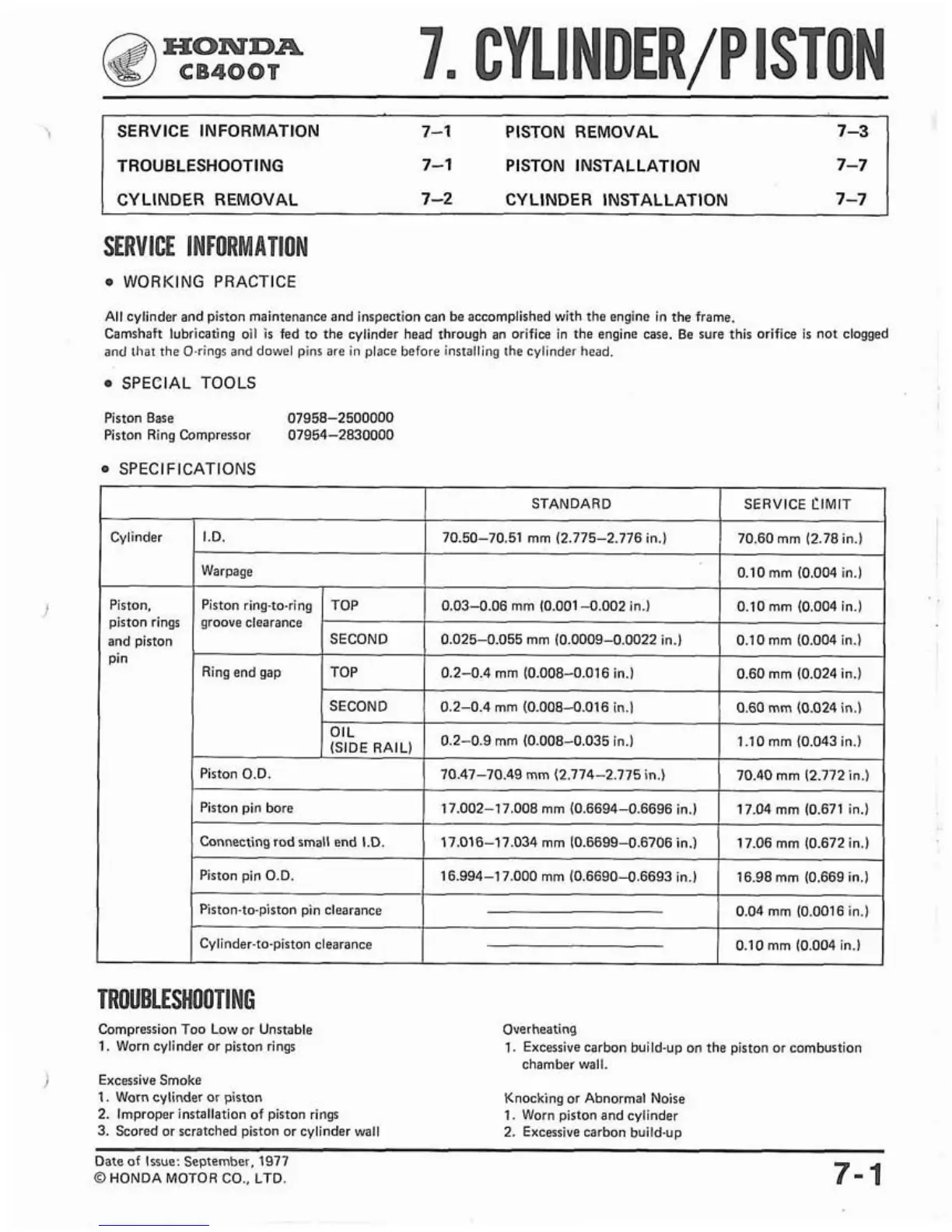

HONDA
CBL400B
SERVICE INFORMATION
7-1
PISTON REMOVAL
7-3
TROUBLESHOOTING
7-1
PISTON INSTALLATION
7-7
CYLINDER REMOVAL
7-2
CYLINDER INSTALLATION
7-7
SERVICE INFORMATION
WORKING PRACTICE
All cylinder and piston maintenance and inspection can be accomplished with the engine in the frame.
Camshaft lubricating oil
is
fed to the cylinder head through an orifice in the engine case. Be sure this orifice
is
not clogged
and that the O-rings and dowel pins are in place before installing the cylinder head.
SPECIAL TOOLS
Piston Base 07958-2500000
Piston Ring Compressor 07954-2830000
SPECIFICATIONS
TROUBLESHOOTING
Compression Too Low or Unstable
Overheating
1.
Worn cylinder or piston rings
1.
Excessive carbon build-up on the piston or combustion
chamber wall.
1
Excessive Smoke
1.
Worn cylinder or piston
Knocking or Abnormal Noise
2. Improper installation of piston rings
1.
Worn piston and cylinder
3.
Scored or scratched piston or cylinder wall
2.
Excessive carbon build-up
Date of Issue: September.
1977
O
HONDA MOTOR CO.,
LTD.
7-
1
