HONDA
HYDRAULIC
DISC
BRAKE
CB400T

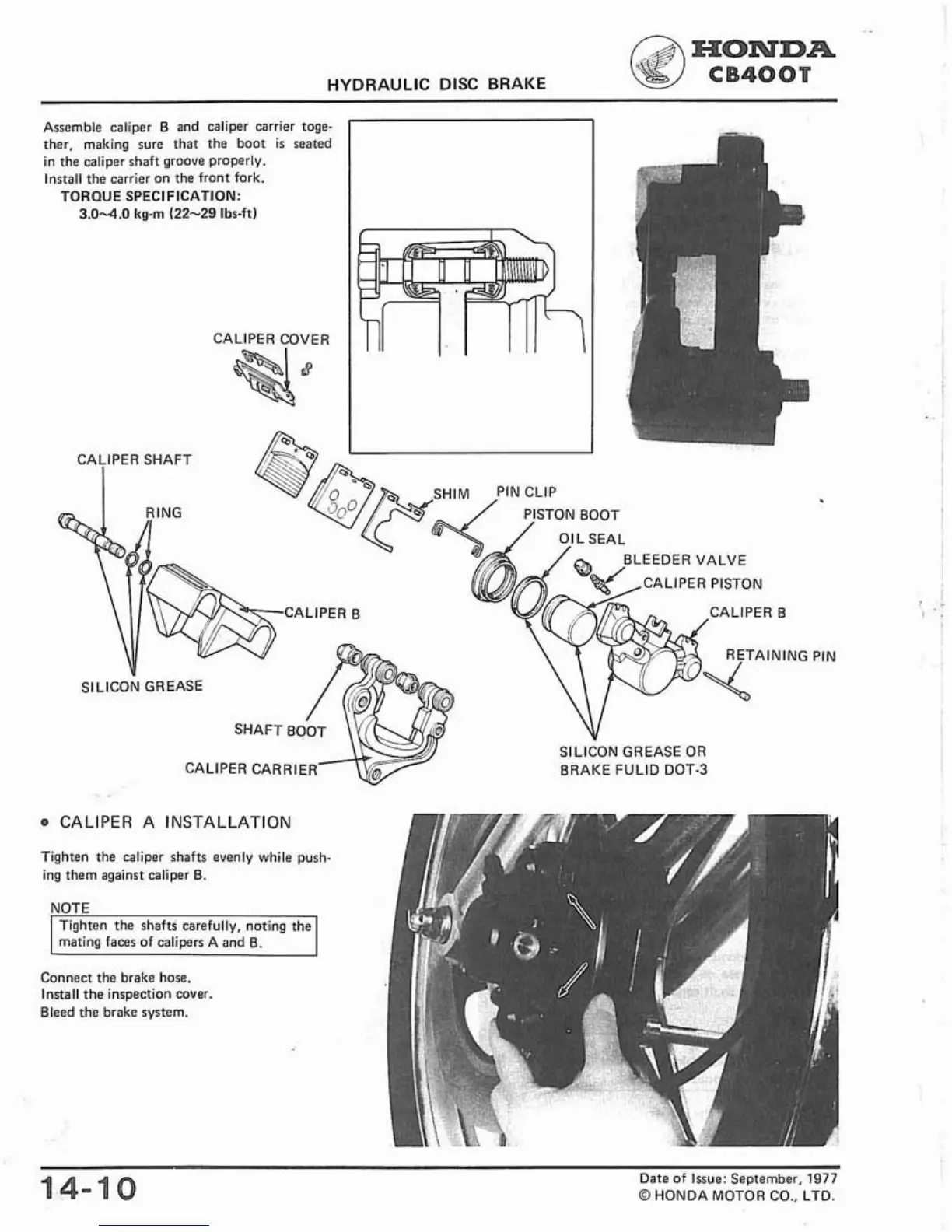

Assemble caliper B and caliper carrier toge-
ther, making sure that the boot
is
seated
in the caliper
shaft groove properly.
Install the carrier on the front fork.
TORQUE SPECIFICATION:
3.04.0
kg-m
(22-29
lbs-ft)
CALIPER COVER
q8
LEEDER VALVE
CALIPER PISTON
SILICON GREASE OR
CALIPER CARRIER BRAKE
FULlD DOT-3
CALIPER
A
INSTALLATION
Tighten the caliper shafts evenly while push-
ing them against caliper
B.
NOTE
I
Tighten the shafts carefully, noting the
I
[
mating faces of calipers A end B.
Connect the brake hose.
Install the inspection cover.
Bleed the brake system.
Date of Issue: September,
1977
O
HONDA MOTOR CO.,
LTD.
