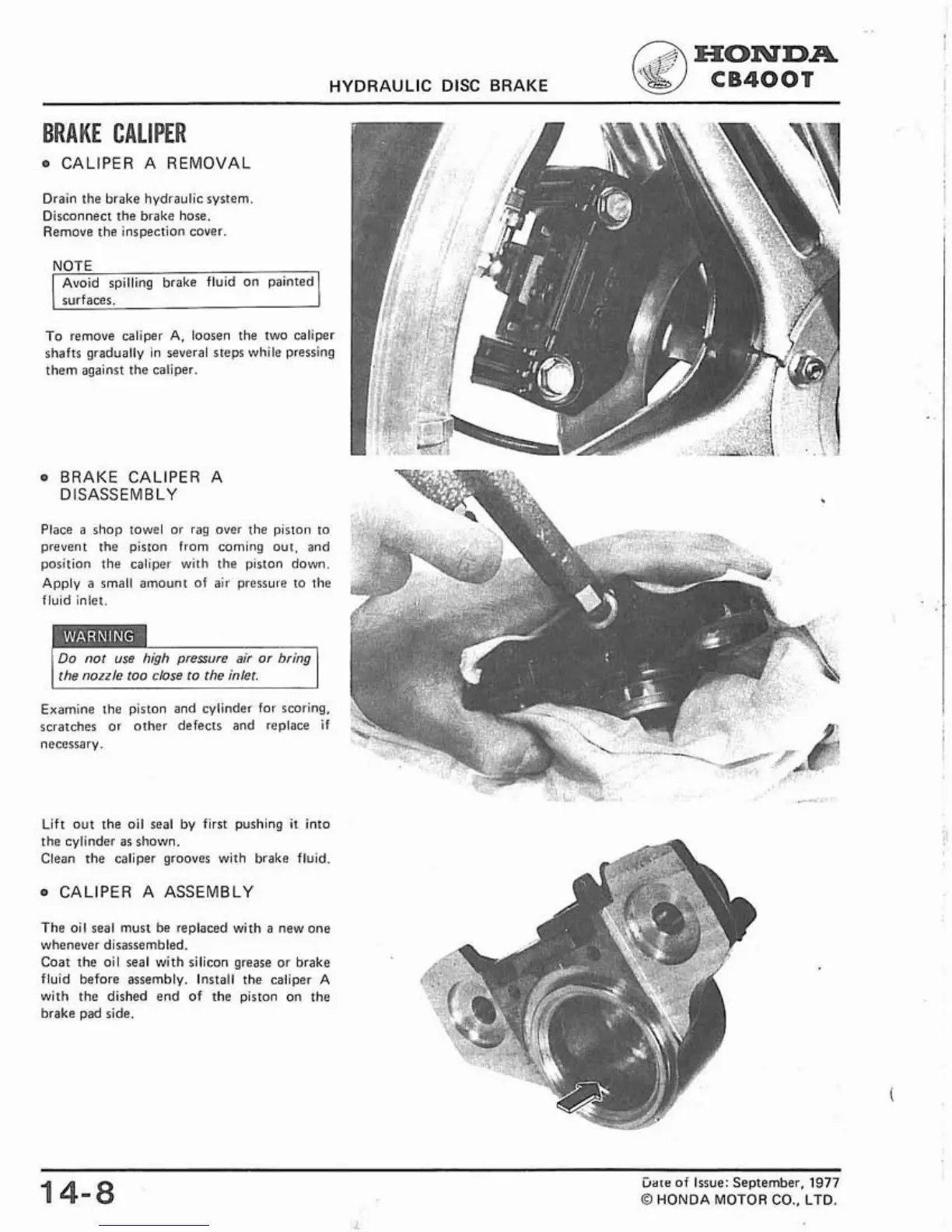

HYDRAULIC DISC BRAKE CB4OOT
BRAKE CALIPER
CALIPER A REMOVAL
Drain the brake hydraulic system
Disconnect the brake hose.
Remove the inspection cover.
NOTE
I Avoid spilling brake fluid on painted (
( surfaces. I
To remove caliper A, loosen the two caliper
shafts gradually in several steps while pressing
them against the caliper.
BRAKE CALIPER A
DISASSEMBLY
Place a shop towel or rag over the piston to
prevent the piston from coming out, and
position the caliper with the piston down.
Apply a small amount of air pressure to the
I.,
fluid inlet.
6'
1 Do not use high Dressure air or brino I
I
-. -
the nozzle too close to the inlet.
I
Examine the piston and cylinder for scoring,
'
scratches or other defects and replace if
>x-
necessarv.
Lift out the oil seal bv first
oushin~ it into
-
the cylinder as shown.
Clean the caliper grooves with brake fluid.
CALIPER A ASSEMBLY
The oil seal must be replaced with a new one
whenever disassembled.
Coat the oil seal with silicon grease or brake
fluid before assembly. Install the caliper A
with the dished end of the piston on the
brake pad side.
