CB400T TRANSMISSION

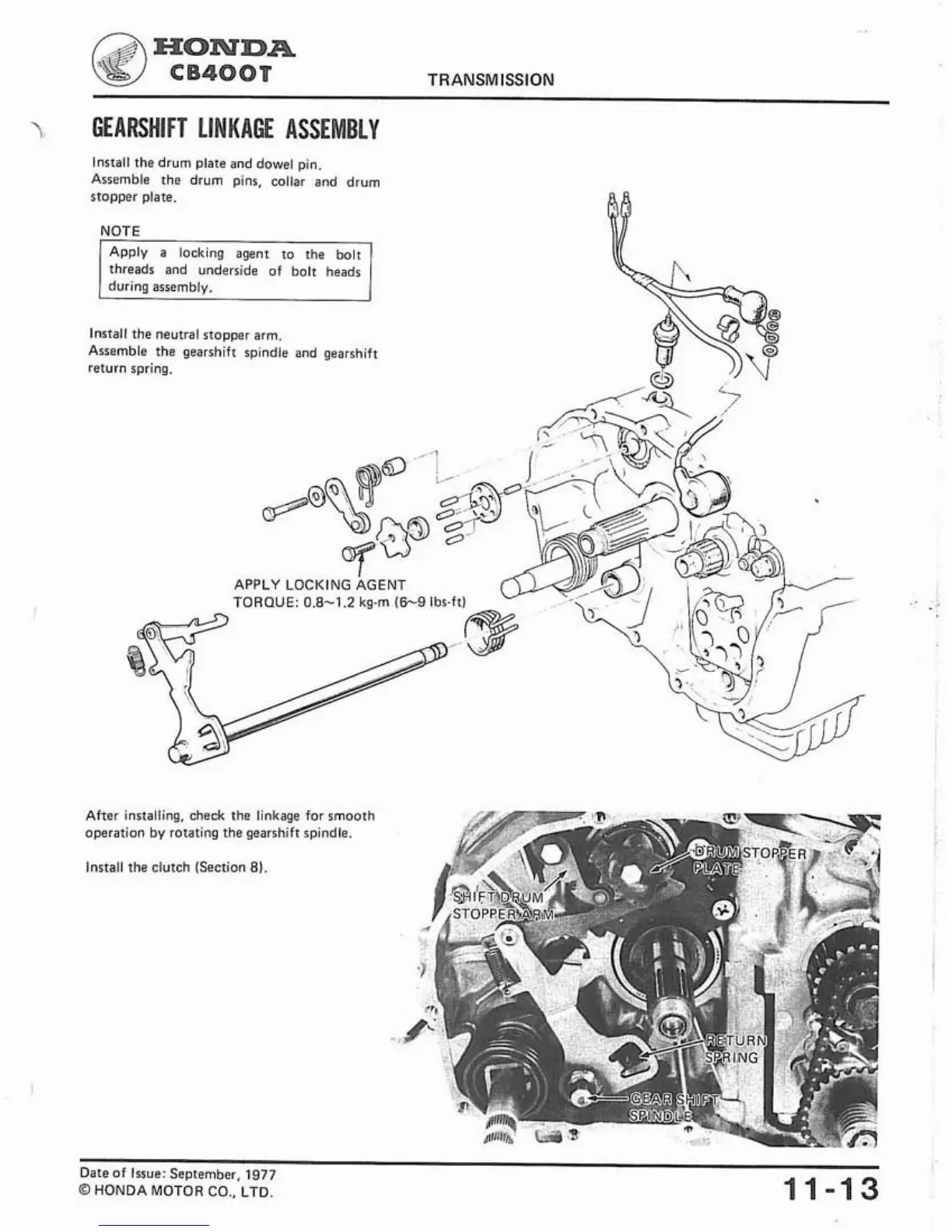

GEARSHIFT LINKAGE ASSEMBLY
Install the drum plate and dowel pin.
Assemble the drum pins, collar and drum
stopper plate.
NOTE
(Apply a locking agent to the bolt
I
I threads and underside of bolt heads I A
I durina assemblv. 1
Install the neutral stopper arm.
Assemble the gearshift
sp~ndle and gearshift
return spring.
APPLY LOCKING AGENT
TORQUE:
0.8-1.2 kg-m (6-9 lbs-ftl
After installing, check the linkage for smooth
operation by rotating the gearshift spindle.
Install the clutch (Section
8)
Date of Issue: September, 1977
o HONDA MOTOR CO., LTD. 11-13
