HONDA
CB4OOT

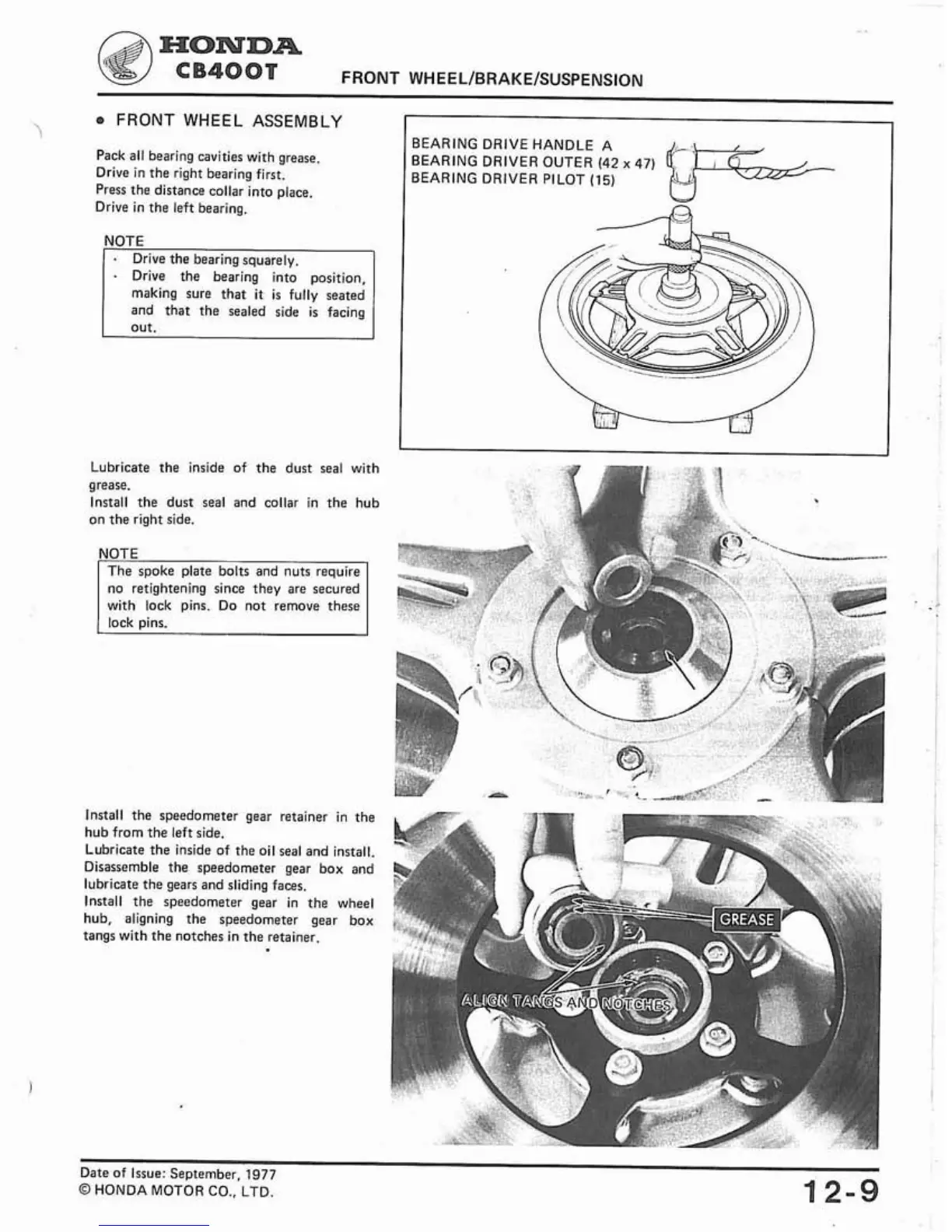

FRONT WHEEL/BRAKE/SUSPENSION
FRONT
WHEEL ASSEMBLY
I
I
Pack all bearing cavities with grease.
Drive in the right bearing first.
Press the distance collar into place.
Drive in the left bearing.
NOTE
Drive the bearing squarely.
Drive the bearing into position,
making sure that
it
is fully seated
and that the sealed side is facing
out.
Lubricate the inside of the dust seal with
grease.
Install the dust seal and collar in the hub
on the right side.
BEARING DRIVE HANDLE A
BEARING DRIVER OUTER
(42
x
47)
BEARING DRIVER PILOT
(15)
no retightening since they are secured
with lock pins. Do not remove these
lock oins.
Install the speedometer gear retainer in the
hub from the left side.
Lubricate the inside of the oil seal and install.
Disassemble the speedometer gear box and
lubricate the gears and sliding faces.
Install the speedometer gear in the wheel
hub, aligning the speedometer gear box
tangs with the notches in the retainer.
Date of
Issue: September,
1977
o
HONDA
MOTOR
co..
LTD.
12-9
