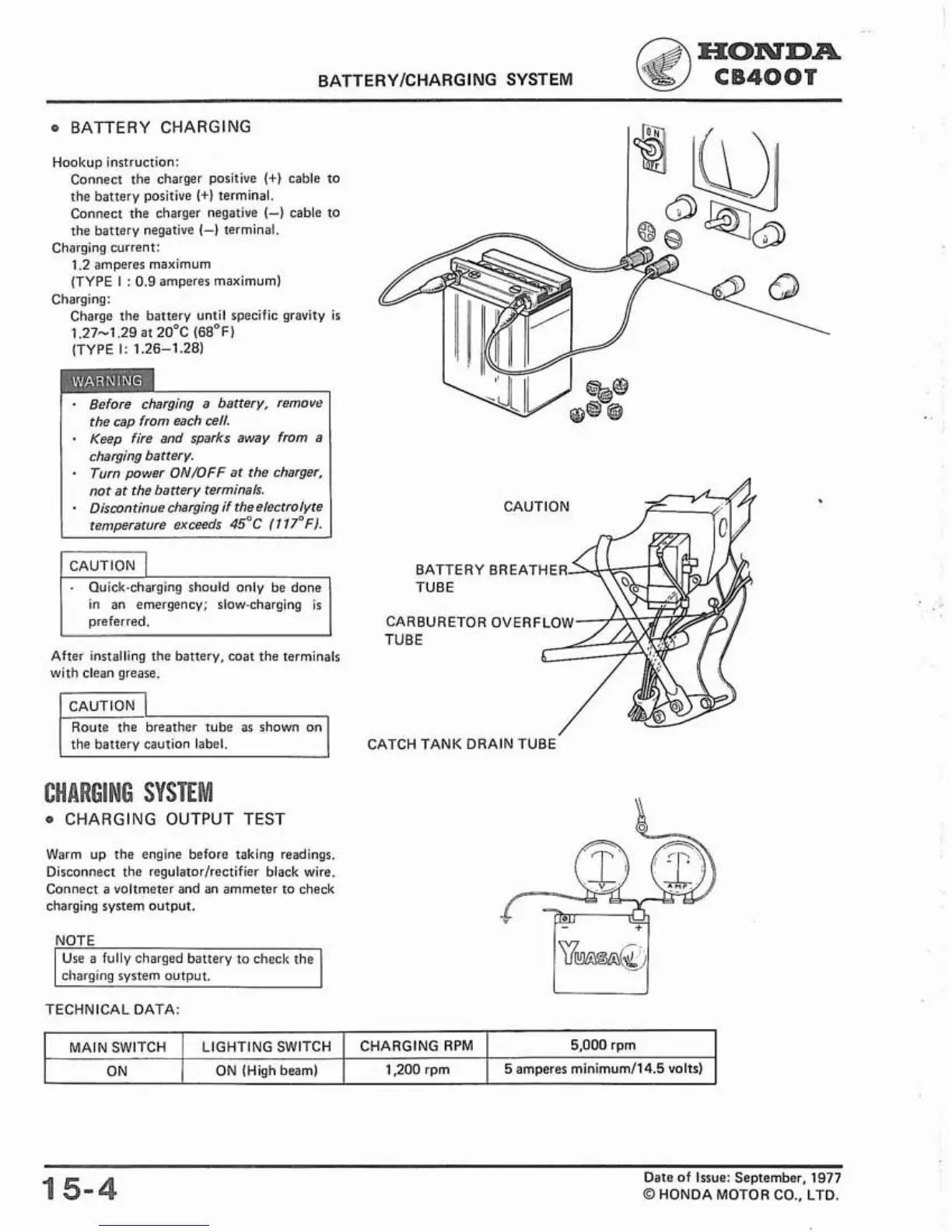

HONDA
BATTERYICHARGING SYSTEM
C5400T
a
BATTERY
CHARGING
Hookup instruction:
Connect the charger positive
(+)
cable to
the battery positive
(+)
terminal.
Connect the charger negative
(-)
cable to
the battery negative
(-)
terminal.
Charging current:
1.2 amperes maximum
(TYPE
I
:
0.9
amperes maximum)
Charging:
Charge the battery until specific gravity
is
1.27-1.29
at
20°C (6B°F)
(TYPE I: 1.26-1.28)
Before charging a battery,
removs
the cap from each cell.
Keep fire and sparks away
from
a
charging battery.
.
Turn power
ON/OFF
at the charger,
not at the battery terminals.
.
Discontinue charging
if
the electrolyte
temperature exceeds
45'C
(117"FJ.
CAUTION
I
.
0uick.charging should only be done
1
In an emergency; slow-charging
is
preferred.
I
After installing the battery, coat the terminals
with clean grease.
Route the breather tube as shown on
CMWR68#6
SYSTEM
a
CHARGING
OUTPUT
TEST
Warm up the engine before taking readings.
Disconnect the
regulatorlrectifier black wire.
Connect
a
voltmeter and an ammeter to check
charging system output.
NOTE
Use
a
fully charged battery to check the
charging system output.
CAUTION
BATTERYBREATHER
TUBE
CARBURETOR OVERFLOW
TUBE
TECHNICAL DATA:
15-4
Date of Issue: September, 1977
O
HONDA MOTOR CO.. LTD.
5,000 rpm
CHARGING RPM
MAIN SWITCH
LIGHTING SWITCH
5 amperes
minimum/l4.5 volts)
1,200 rpm
ON
ON (High beam)
