FRONT
WHEEL/BRAKE/SUSPENSION

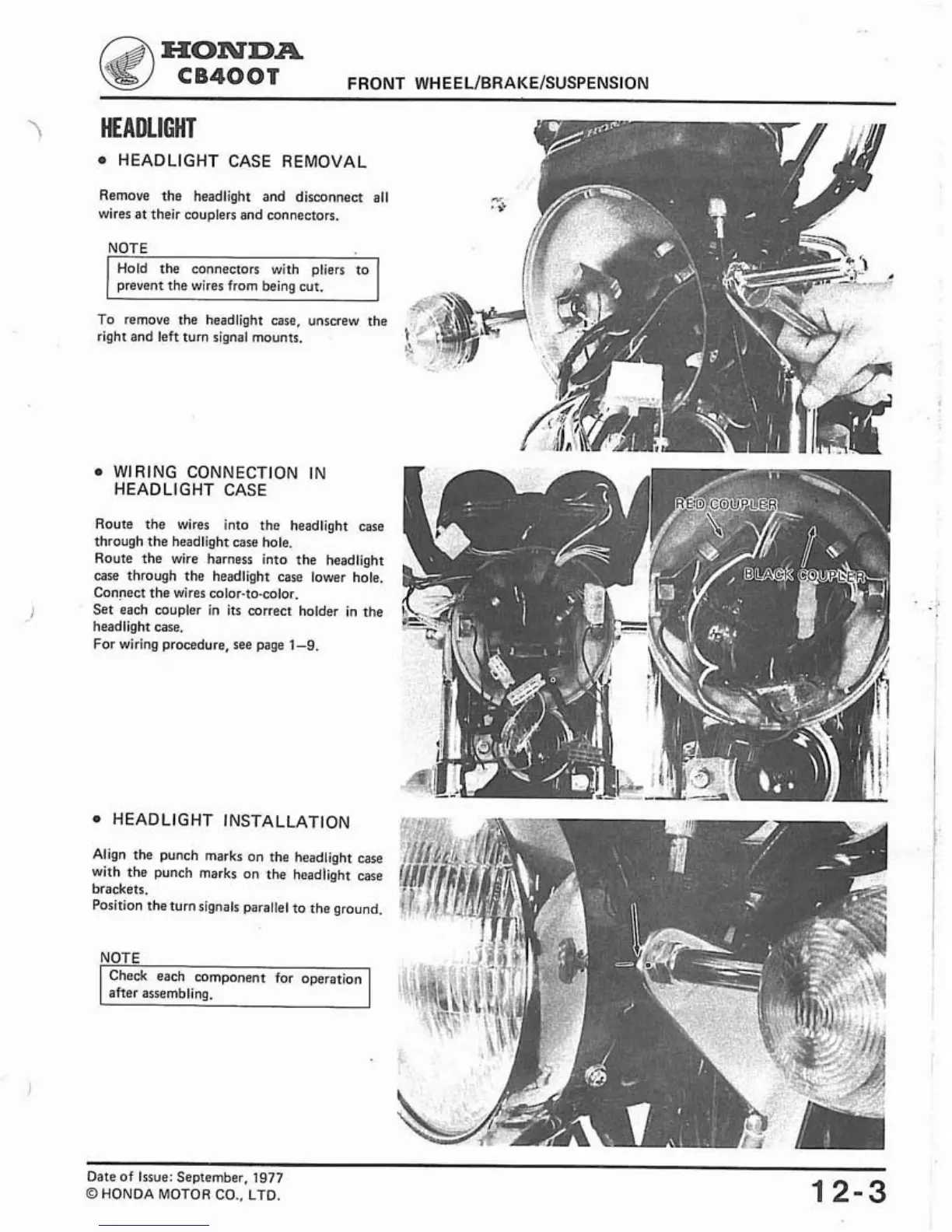

HEADLIGHT
HEADLIGHT CASE REMOVAL
Remove the headlight and disconnect all
wires at their couplers and connectors.
NOTE
Hold the connectors with pliers to
prevent the wires from being cut.
To remove the headlight case, unscrew the
right and left turn signal mounts.
WIRING CONNECTION IN
HEADLIGHT CASE
Route the wires into the headlight case
through the headlight case hole.
Route the wire harness into the headlight
case through the headlight case lower hole.
Connect the wires color-to-color.
Set each coupler in
its
correct holder in the
headlight case.
For wiring procedure,
see
page
1-9.
HEADLIGHT INSTALLATION
Align the punch marks on the headlight case
with the punch marks on the headlight case
brackets.
Position the turn signals parallel to the ground.
NOTE
Check each component for operation
after assembling.
Date of Issue: September,
1977
