HONDA
CB400T CRANKCASE

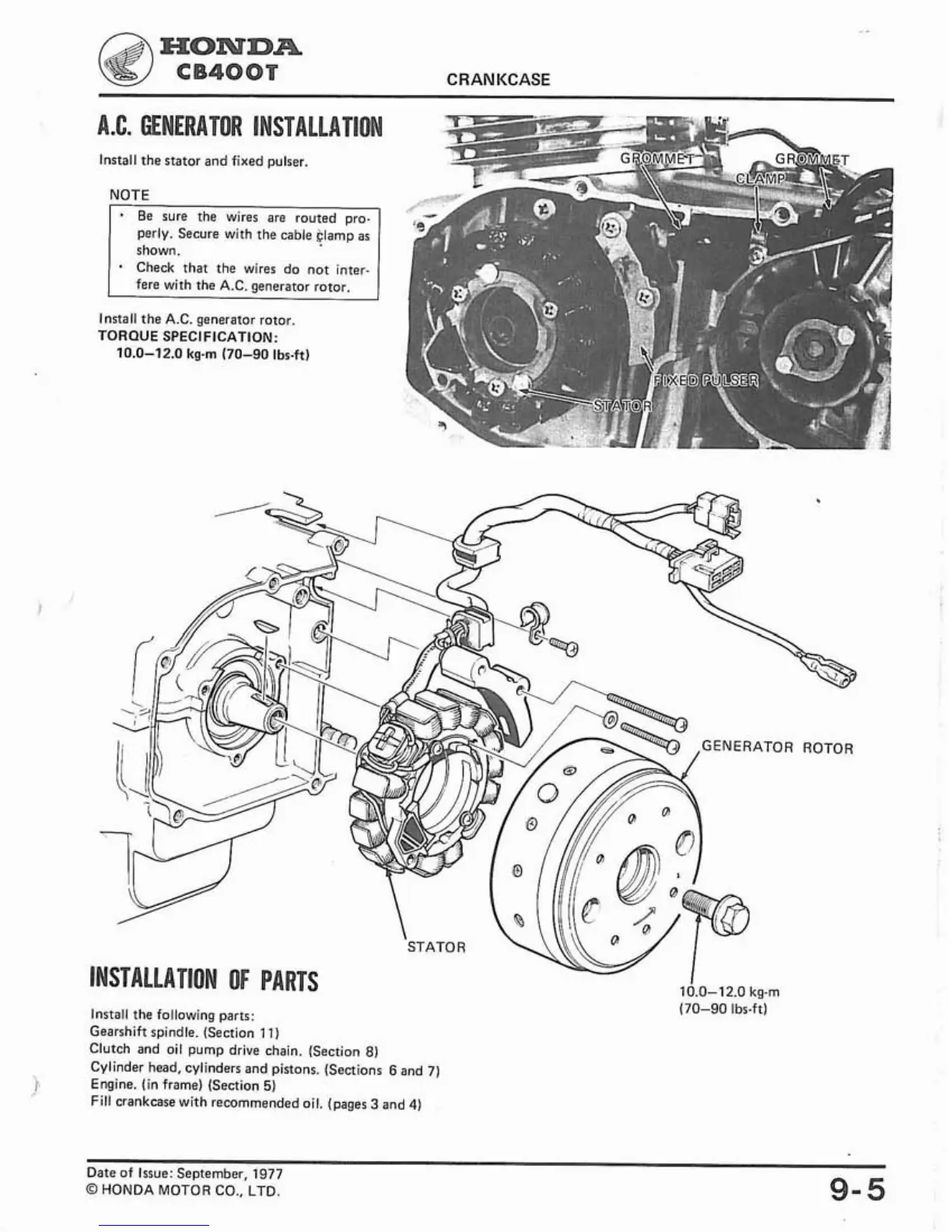

A.C. GENERATOR INSTALLATION
Install the stator and fixed pulser.
NOTE
I . Be sure the wires are routed pro- I
perly. Secure with the cable tlamp as
shown.
Check that the wires do not inter-
fere with the A.C. uenerator rotor.
Install the A.C. generator rotor.
TORQUE SPECIFICATION:
10.0-12.0 kg-m (70-90 lbr-ft)
GENERATOR ROTOR
INSTALLATION OF PARTS 10.0-12.0 kg-m
(70-90 lbs-ft)
Install the following parts:
Gearshift spindle. (Section
11)
Clutch and oil pump drive chain. (Section 8)
Cylinder head, cylinders and pinons. (Sections 6 and 7)
1,
Engine. (in frame) (Section 5)
Fill crankcase with recommended oil. (pages 3 and 4)
Date of Issue: September, 1977
0 HONDA MOTOR CO., LTD.
9- 5
