HONDA
CB400T
FRONT WHEEL/BRAKE/SUSPENSION

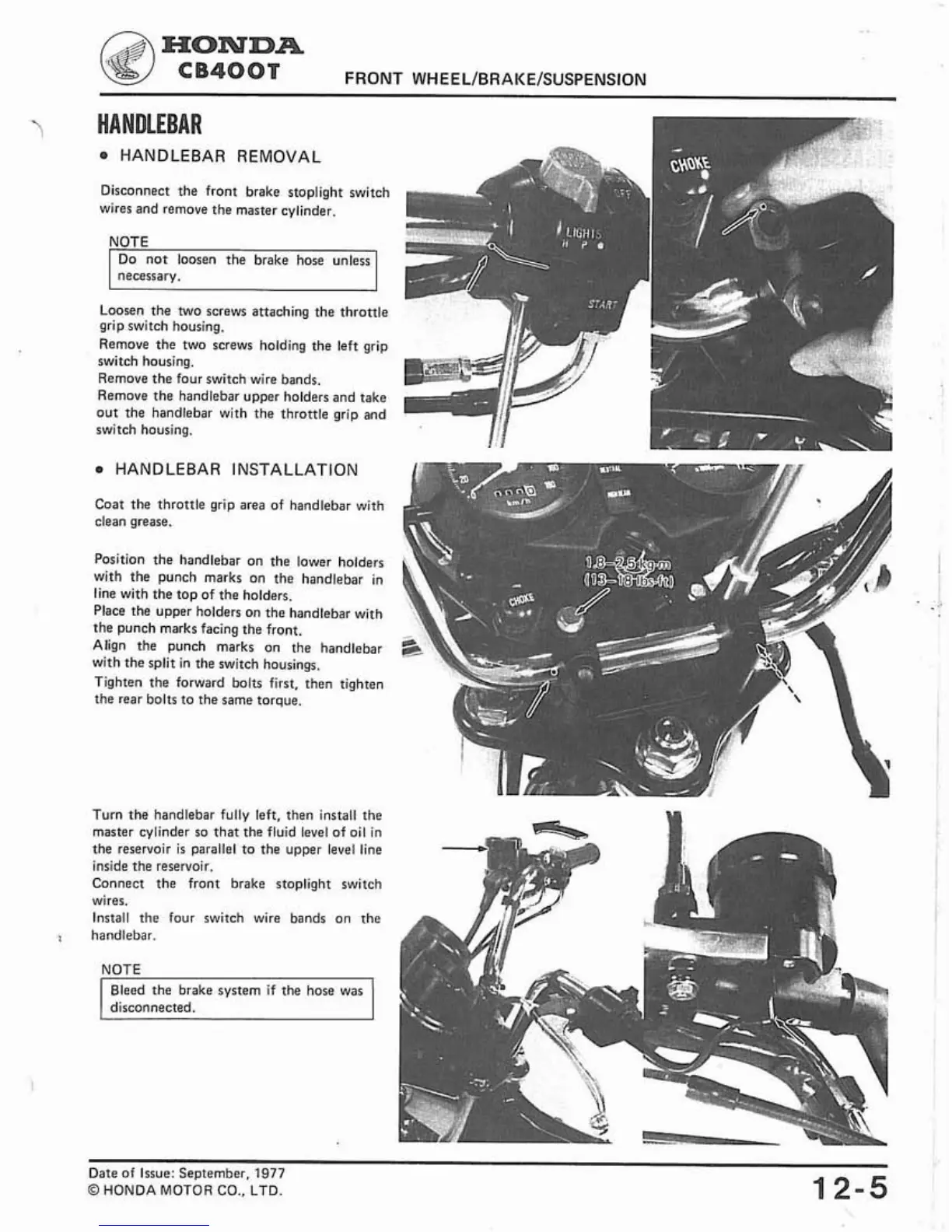

HANDLEBAR
HANDLEBAR REMOVAL
Disconnect the front brake stoplight switch
wires and remove the master cylinder.
NOTE
Do not loosen the brake hose unless
necessary.
Loosen the two screws attaching the throttle
grip switch housing.
Remove the two screws holding the left grip
switch housing.
Remove the four switch wire bands.
Remove the handlebar upper holders and take
out the handlebar with the throttle grip and
switch housing.
HANDLEBAR INSTALLATION
Coat the throttle grip area of handlebar with
clean grease.
Position the handlebar on the lower holders
with the punch marks on the handlebar in
line with the top of the holders.
Place the upper holders on the handlebar with
the punch marks facing the front.
Align the punch marks on the handlebar
with the split in the switch housings.
Tighten the forward bolts first, then tighten
the rear bolts to the same torque.
Turn the handlebar fully left, then install the
master cylinder so that the fluid level of oil in
the reservoir
is
parallel to the upper level line
inside the reservoir.
Connect the front brake stoplight switch
wires.
Install the four switch wire bands on the
handlebar.
NOTE
Bleed the brake system if the hose was
disconnected.
Date of Issue: September.
1977
o
HoNDA MOTOR
co.,
LTD.
6
2-5
