HONDA
CRANKCASE CB400T

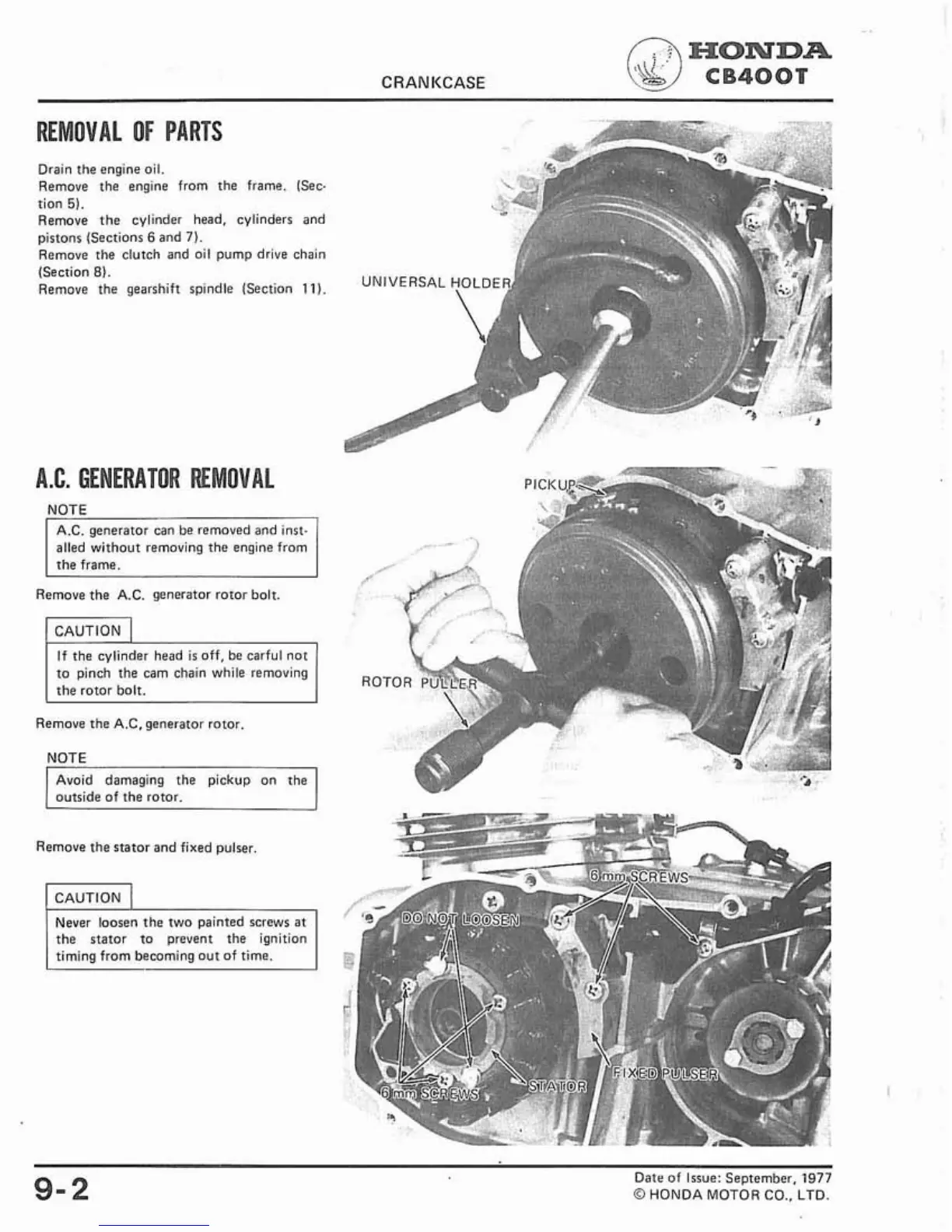

REMOVAL OF PARTS
tion 5).
Remove the cylinder head, cylinders and
pistons (Sections
6 and 7).
Remove the clutch and oil oumr, drive chain
Drain the engine oil.
--.
Remove the engine from the frame. (Sec. '. .':
(Section 81.
Remove the gearshift sp~ndle (Section 11 ).
UNIVERC
A.C. GENERATOR REMOVAL
alled without removing the engine from
the frame.
Remove the A.C. generator rotor bolt.
If the cylinder head
is off, be carful not
to pinch the cam chain while removing
Remove the
A.C, generator rotor.
NOTE
Avoid damaging the pickup on the
outside of the rotor.
Remove the stator and fixed
pulser.
CAUTION I
Never loosen the two painted screws at I
the stator to prevent the ignition
timing from becoming out of time.
9- 2
uatr of Issue: September, 1977
@ HONDA MOTOR CO., LTD.
