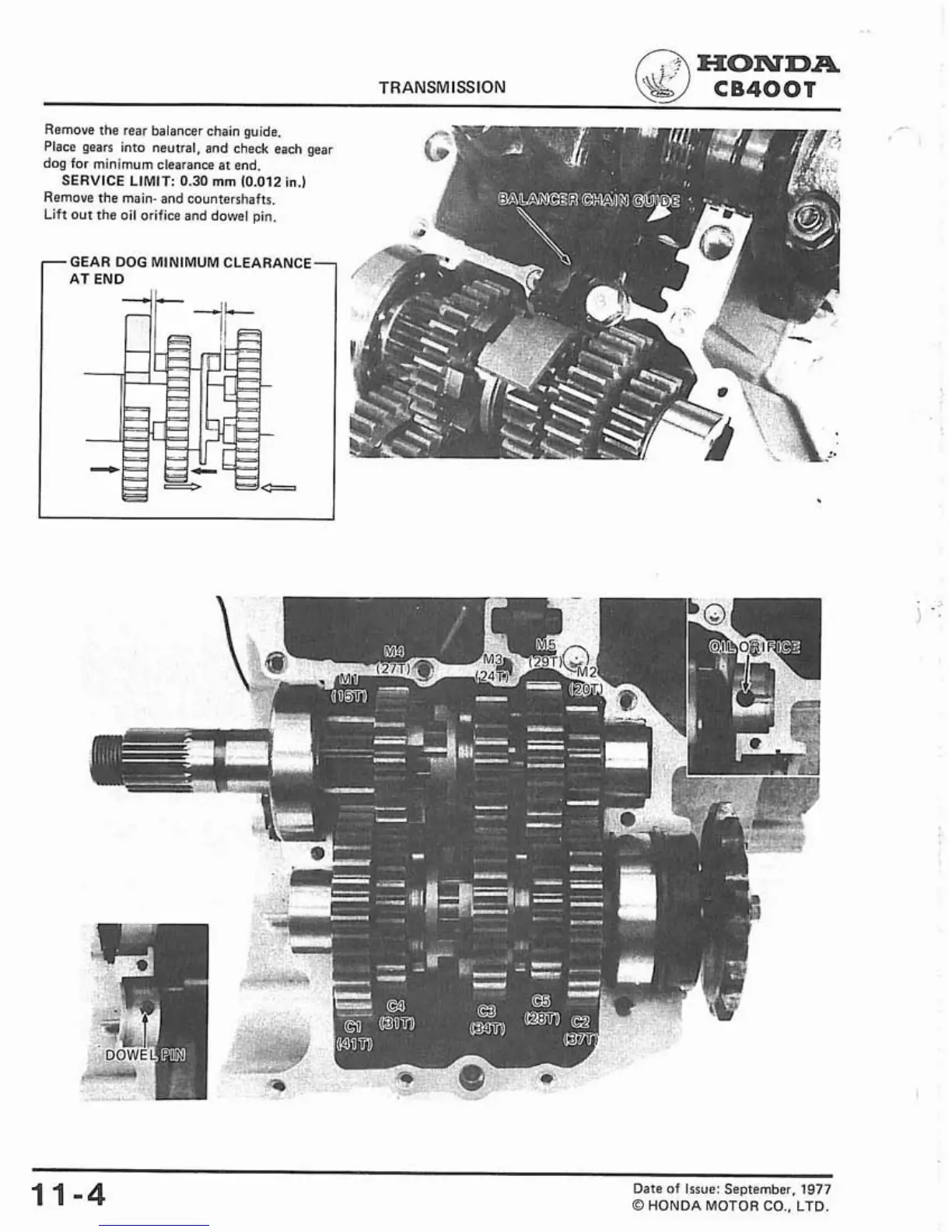

Honda CM400A - Gear Dog Minimum Clearance at End

HONDA
TRANSMISSION CB400T
Remove the rear balancer chain guide.
Place gears into neutral, and check each gear
dog for minimum clearance
at end.
SERVICE LIMIT:
0.30 mm (0.012 in.)
Remove the
main- and countershafts.
Lift out the oil orifice and dowel pin.
GEAR DOG MINIMUM CLEARANCE
rATEND4, ,, 1
Date of lrs~e: September. 1977
0 HONDA MOTOR CO.. LTD.
