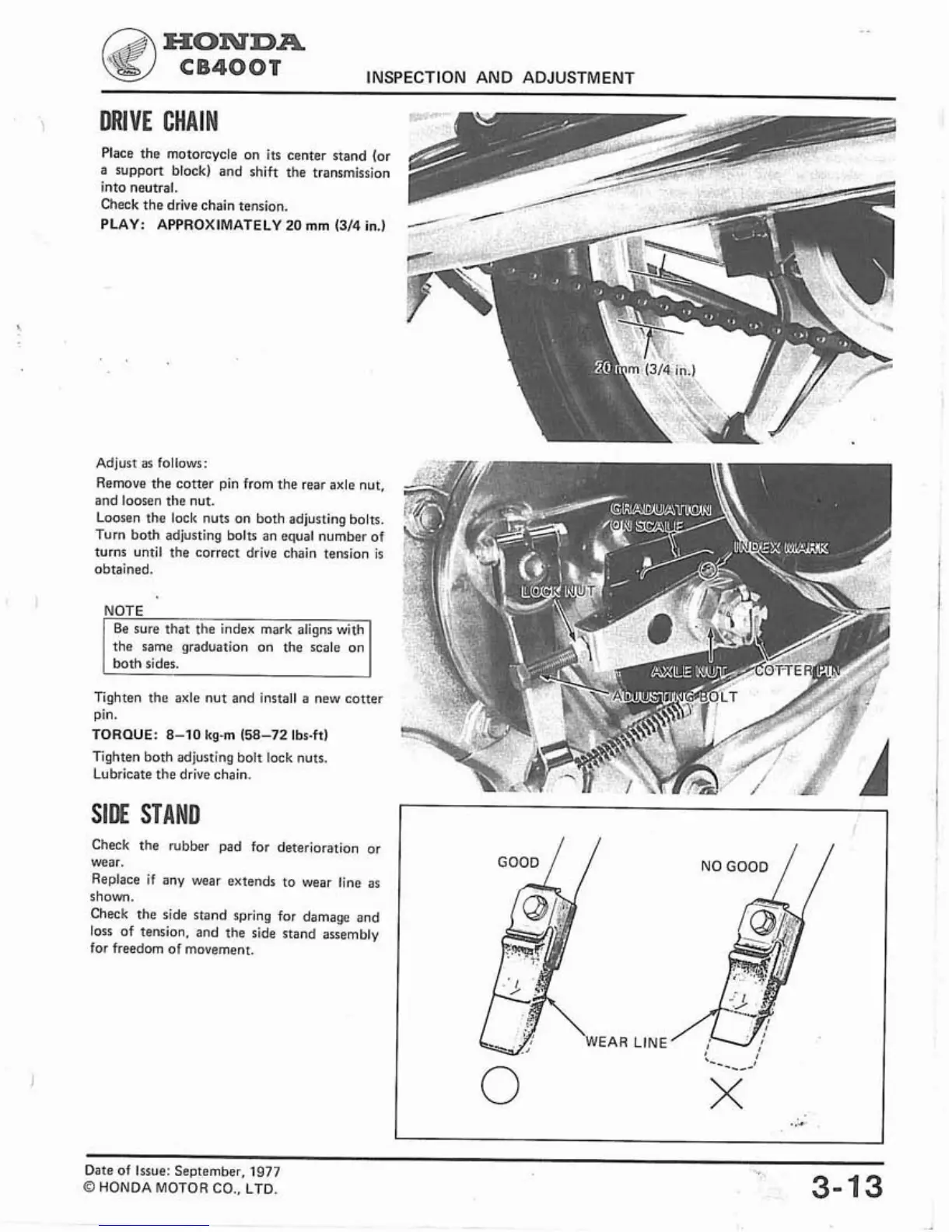

HONDA
CB4OOT
INSPECTION AND ADJUSTMENT
DRIVE CHAIN
Place the motorcycle on
its
center stand (or
a support block) and shift the transmission
into neutral.
Check the drive chain tension.
PLAY:
APPROXIMATELY
20
mm
(314
in.)
Adjust
as
follows:
Remove the cotter pin from the rear axle nut,
and loosen the nut.
Loosen the lock nuts on both adjusting bolts.
Turn both adjusting bolts an equal number of
turns until the correct drive chain tension
is
obtained.
Be sure that the index mark aligns with
the same graduation on the scale on
both sides.
Tighten the axle nut and install
a
new cotter
pin.
TORQUE:
8-10
kg-m
158-72
lbs-ft)
Tighten both adjusting bolt lock nuts.
Lubricate the drive chain.
SIDE STAND
Check the rubber pad for deterioration or
wear.
Replace
if
any wear extends to wear line
as
shown.
Check the side stand spring for damage and
loss of tension, and the side stand assembly
for freedom of movement.
Date of
Issue: September,
1977
o
HONDA
MOTOR
co.,
LTD.
3-
13
