HONDA
CLUTCHIOIL PUMP
CB400T

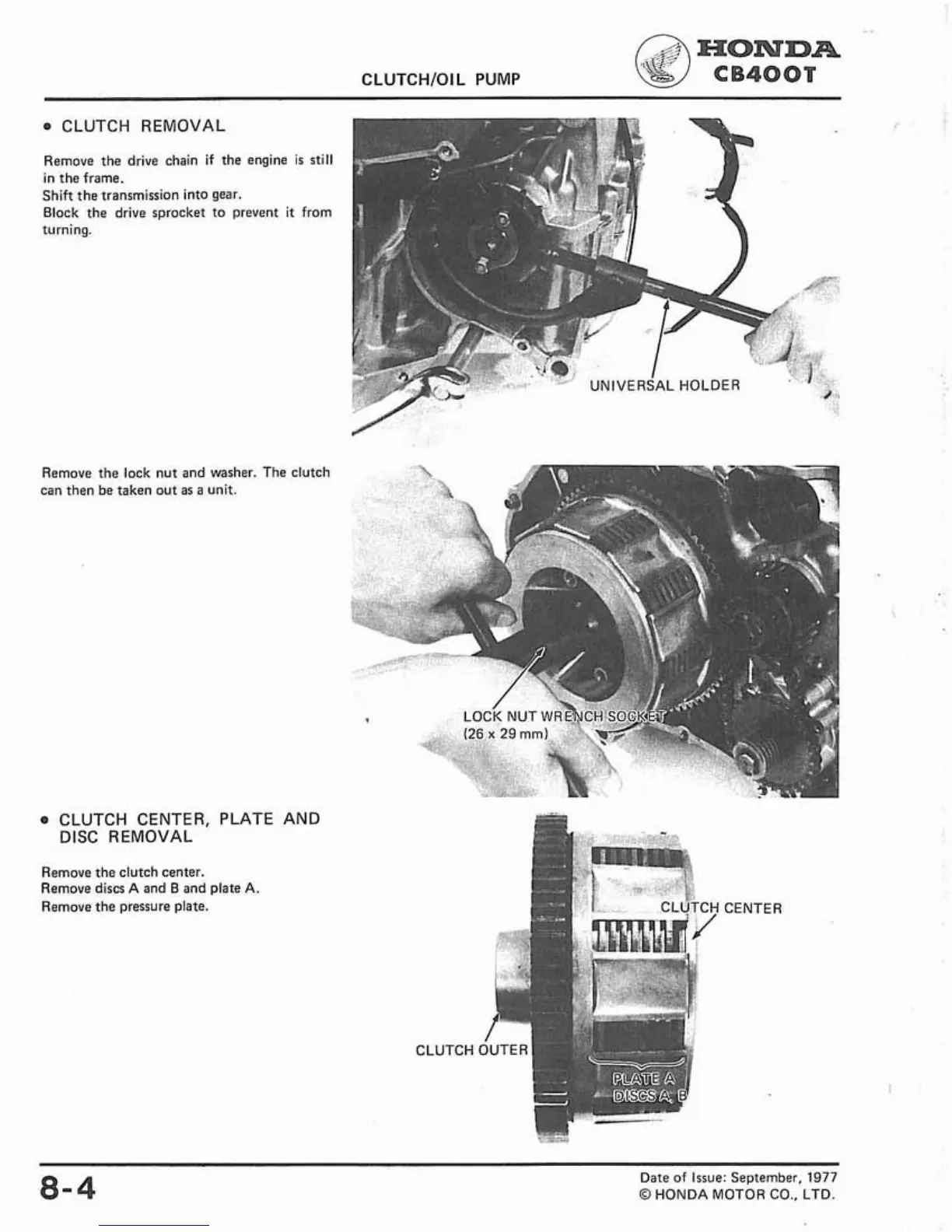

CLUTCH REMOVAL
Remove the drive chain if the engine
is
still
in the frame.
Shift the transmission into gear.
Block the drive sprocket to prevent it from
turning.
Remove the lock nut and washer. The clutch
can then be taken out as
a
unit.
CLUTCH CENTER, PLATE AND
DISC REMOVAL
Remove the clutch center.
Remove discs
A
and
B
and plate
A.
Remove the pressure plate.
CLUTCH
CENTER
8-4
Date of Issue: September,
1977
O
HONDA MOTOR CO., LTD.
