CLUTCHIOIL PUMP
a

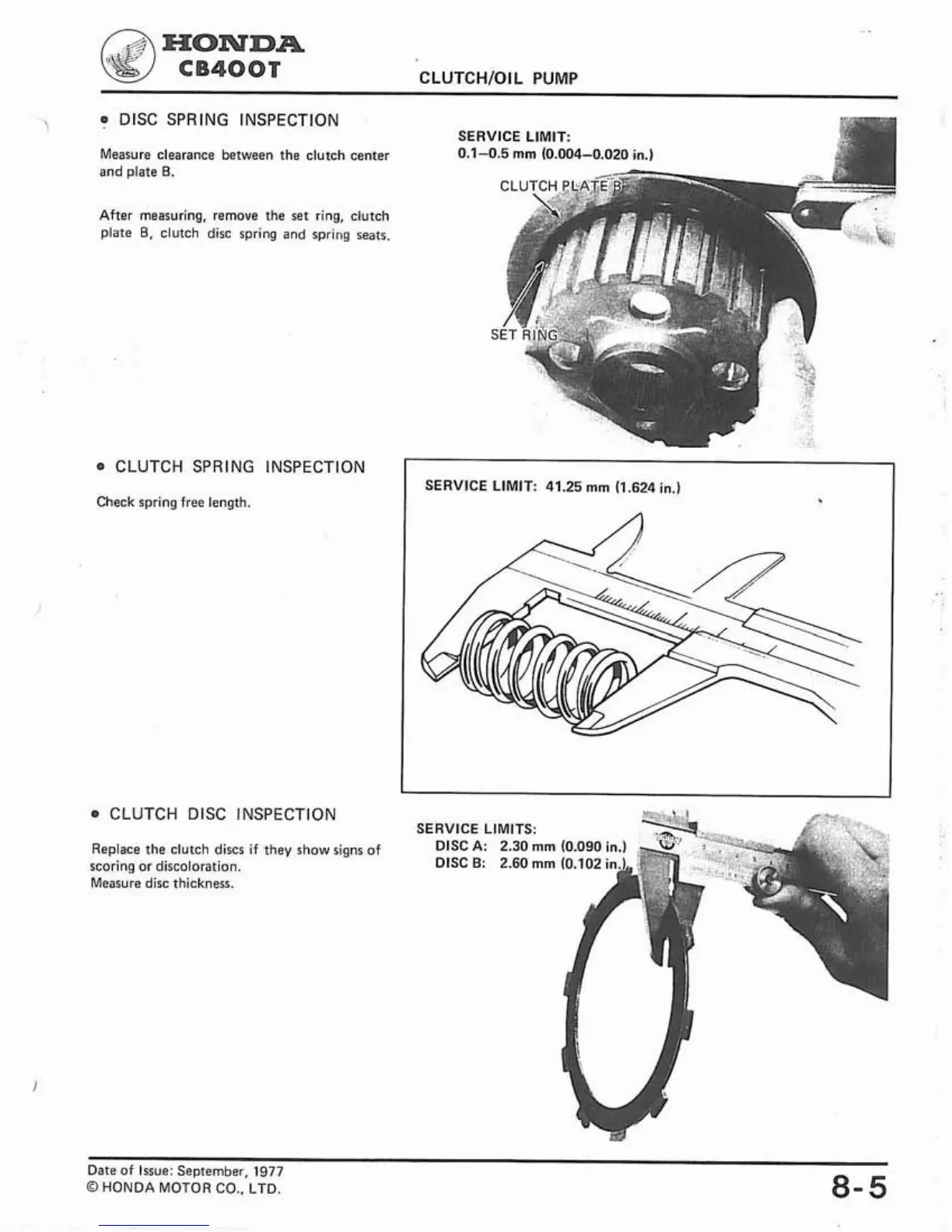

DlSC SPRING INSPECTION
Measure clearance between the clutch center
and plate
B.
After measuring, remove the set ring, clutch
plate
B,
clutch disc spring and spring seats.
SERVICE LIMIT:
0.1-0.5
mm
(0.004-0.020
in.)
CLUTCH SPRING INSPECTION
Check spring free length.
a
CLUTCH DlSC INSPECTION
Replace the clutch discs if they show signs of
scoring or discoloration.
Measure disc thickness.
SERVICE LIMIT:
41.25
mm
(1.624
in.)
SERVICE LIMITS:
DlSC
A:
2.30
mm
DlSC
B:
2.60
mm
1::
Date of Issue: September,
1977
o
HoNDA MOTOR
co.,
LTD.
8-
5
