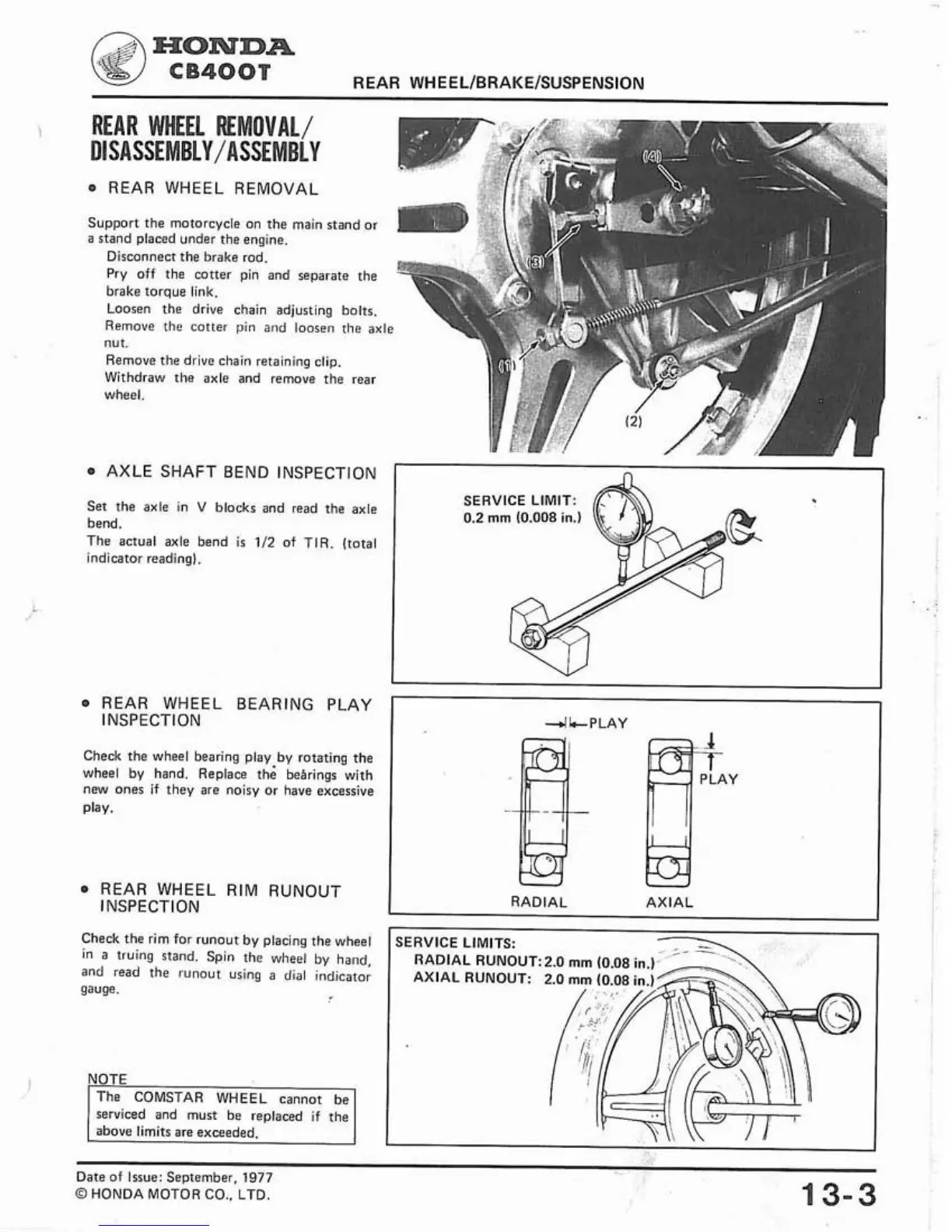

CB400T
REAR WHEELIBRAKEISUSPENSION
REAR WHEEL REMOVAL/
DISASSEMBLY /ASSEMBLY
REAR WHEEL REMOVAL
Support the motorcycle on the main stand or
a stand placed under the engine.
Disconnect the brake rod.
Pry off the cotter pin and separate the
brake torque link.
Loosen the drive chain adjusting bolts.
Remove the cotter pin and loosen the
axlt
nut.
Remove the drive chain retaining clip.
Withdraw the axle and remove the rear
wheel.
AXLE SHAFT BEND INSPECTION
Set the axle in V blocks and read the axle
bend.
The actual axle bend is
112 of TIR. (total
indicator reading).
REAR WHEEL BEARING PLAY
INSPECTION
Check the wheel bearing play by rotating the
wheel by hand. Replace
the bearings with
new ones if they are noisy or have excessive
play.
REAR WHEEL RIM RUNOUT
INSPECTION
Check the rim for runout by placing the wheel
in a truing stand. Spin the wheel by hand,
and read the
runout using a dial ind.icator
gauge.
serviced and must be replaced if the
SERVICE LIMIT:
0.2 mrn (0.008 in.)
RADIAL AXIAL
Date of
Issue: September, 1977
