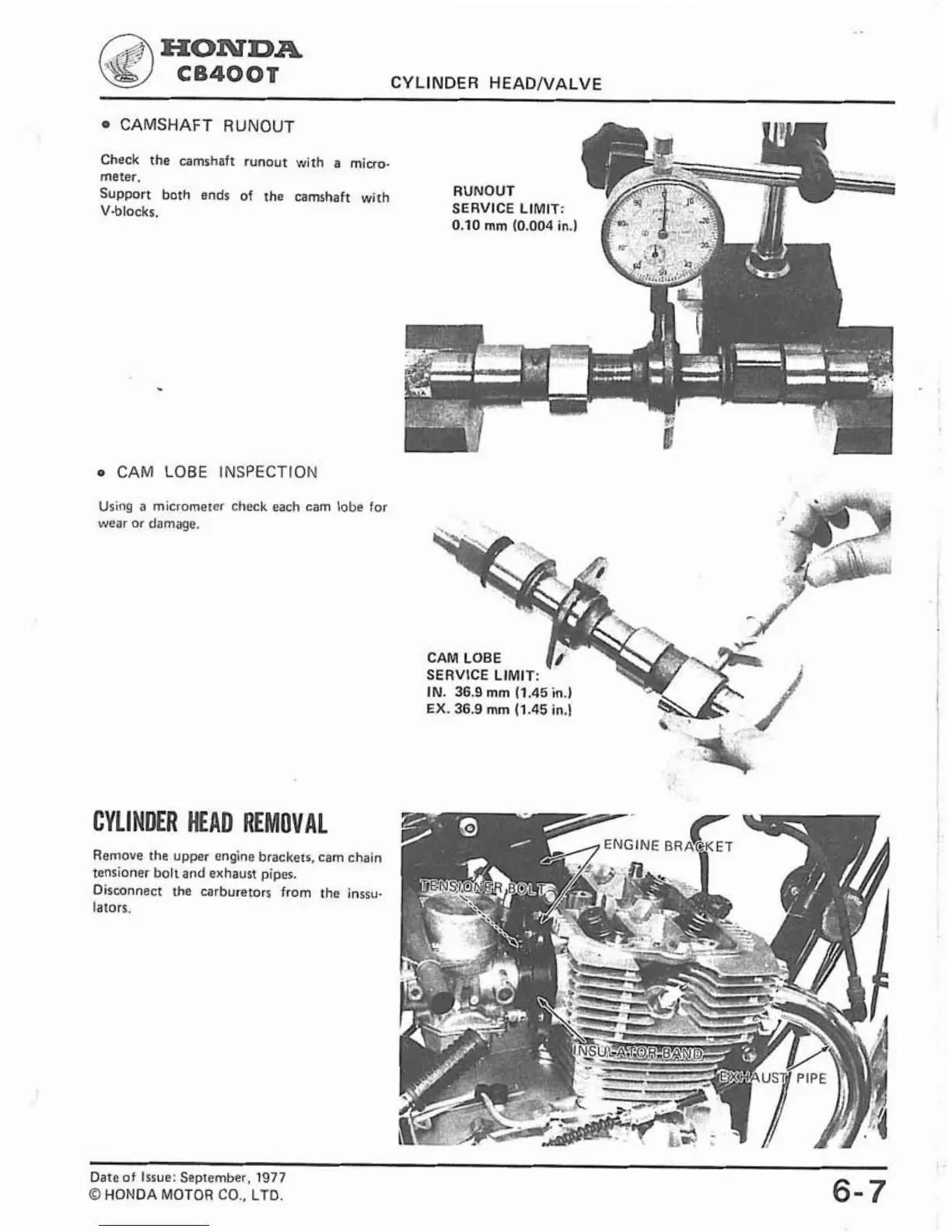

Honda CM400A - Cylinder Head Removal; Camshaft Runout; Cam Lobe Inspection

HONDA
CB400T
CYLINDER HEADIVALVE
* CAMSHAFT RUNOUT
Check the camshaft runout with a micro-
meter.
Support both ends of the camshaft with
V-blocks.
CAM LOBE INSPECTION
Using a micrometer check each cam lobe for
wear or damage.
CYLINDER HEAD REMOVAL
Remove the upper engine brackets, cam chain
tensioner bolt and exhaust
~ioes.
. .
Disconnect the carburetors from the inssu-
lators.
RUNOUT
SERVICE LIMIT:
CAM LOBE
SERVICE LIMIT:
IN.
36.9 mm (1.45 in.)
EX.
36.9 mm (1.45 in.)
Date of Issue: September,
1977
@ HONDA MOTOR CO., LTD.
6- 7
