Honda CM400A - Kick Starter Assembly

HONDA
C8400T TRANSMISSION

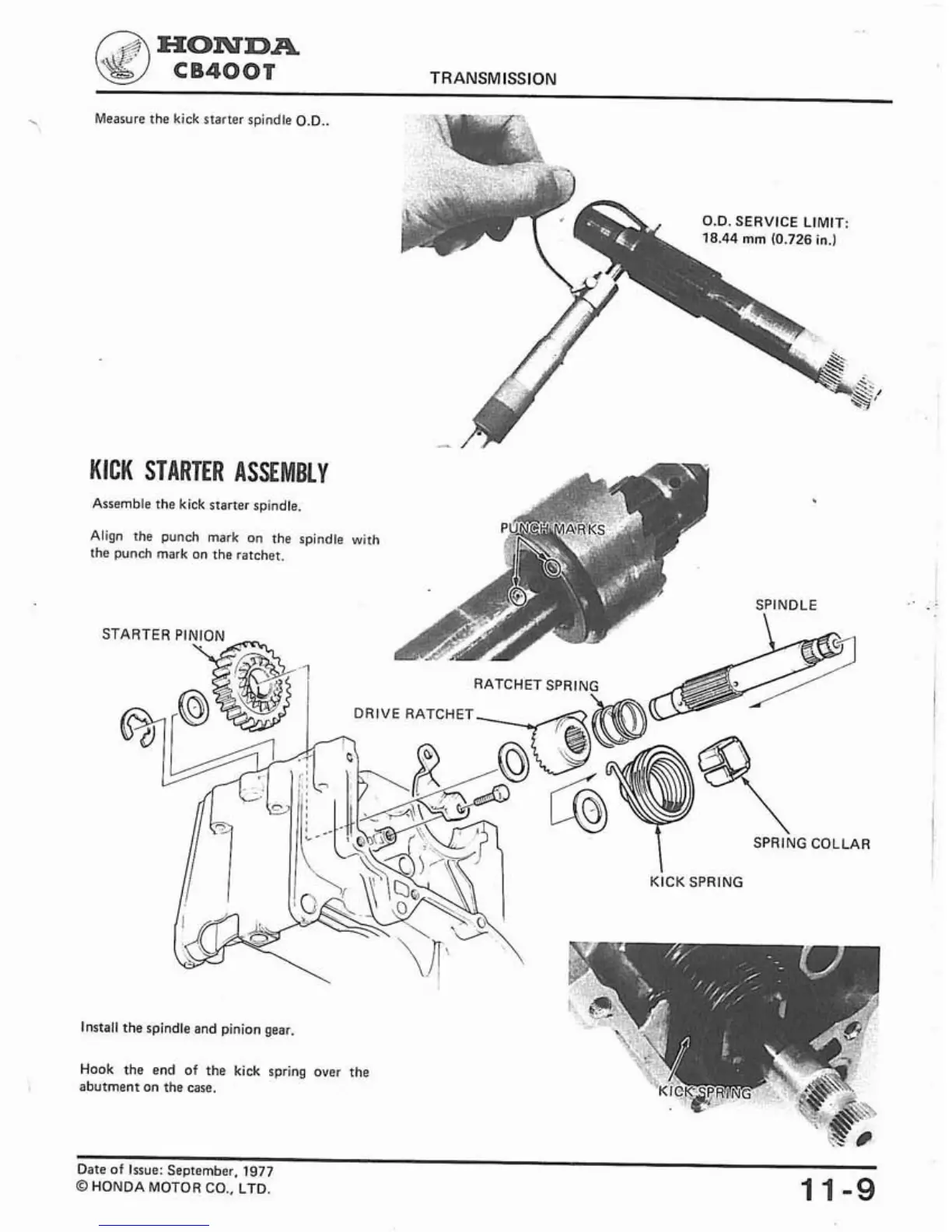

Measure the kick starter spindle O.D..
& O.D. .ER".E LIMIT:
18.44 rnm (0.726 in.)
STARTER
PlNlOF
'I-
SPINDLE
\
DRIVE RATCHET
Install the spindle and pinion gear.
Hook the end of the kick spring over the
abutment on the case.
-t
\
SPRING COLLAR
KICK SPRING
. .
KIC
Date of Issue: September. 1977
@ HONDA MOTOR CO., LTO.
11-9
