Honda CM400A - Ignition System

SERVICE INFORMATION 16-1
TROUBLESHOOTING 16-2
SPARK PLUG 16-3
IGNITION
COIL 16-3
C.D.I. UNIT 16-4
A.C. GENERATOR 16-4

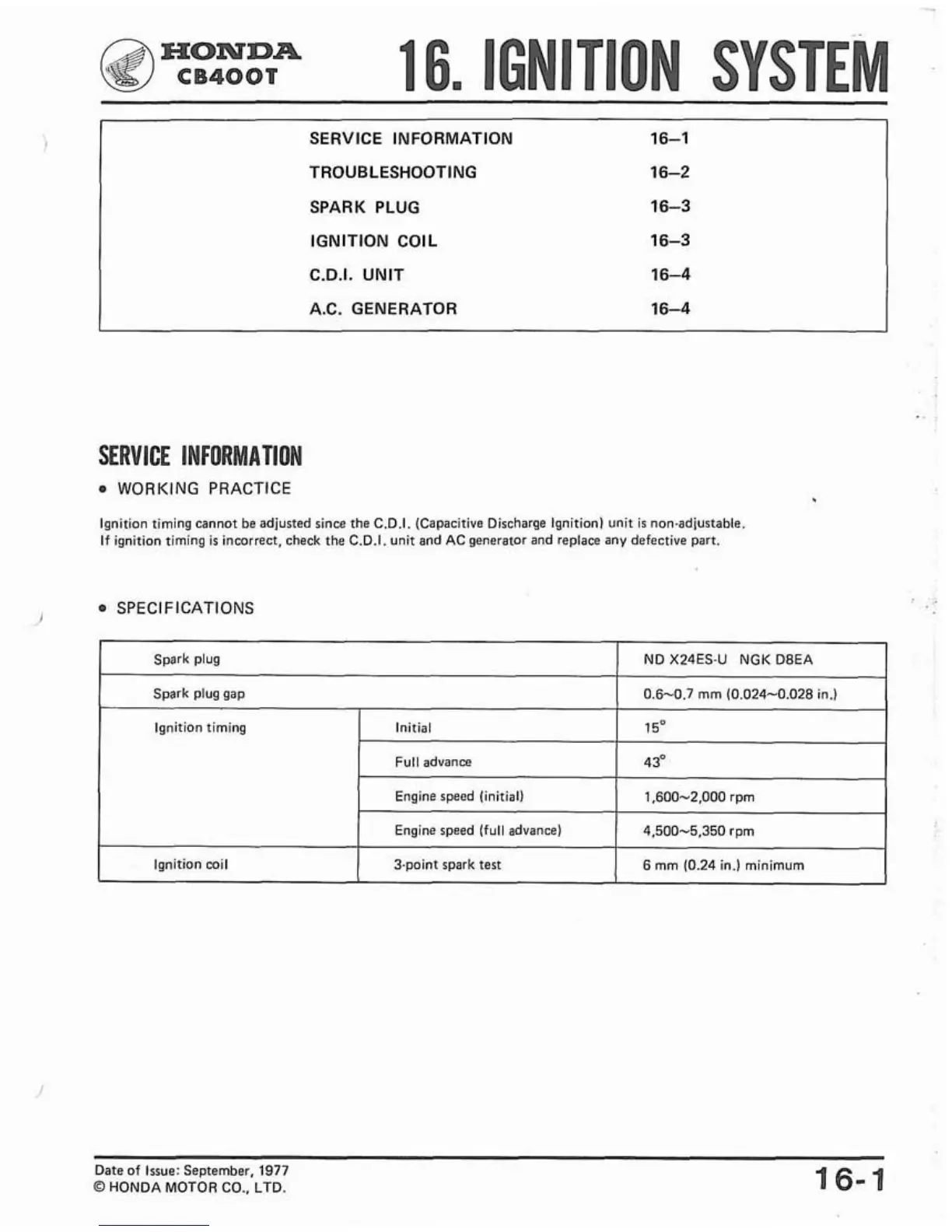

SERVICE INFORMATION
a WORKING PRACTICE
Ignition timing cannot be adjusted since the C.D.I. (Capacitive Discharge Ignition) unit is non-adjustable.
If ignition timing is incorrect, check the C.D.I. unit and AC generator and replace any defective part.
I
SPECIFICATIONS
Date of Issue: September, 1977
@ HONDA MOTOR CO., LTD.
ND
X24ES-U NGK D8EA
0.6-0.7 mm (0.024-0.028 in.)
15'
43"
1.600-2.000 rpm
4.500-5.350 rpm
6
mm (0.24 in.) minimum
Spark
plug
Spark plug gap
Ignition timing
Ignition coil
Initial
Full advance
Engine speed (initial)
Engine speed (full advance)
3-point spark test
