HONDA

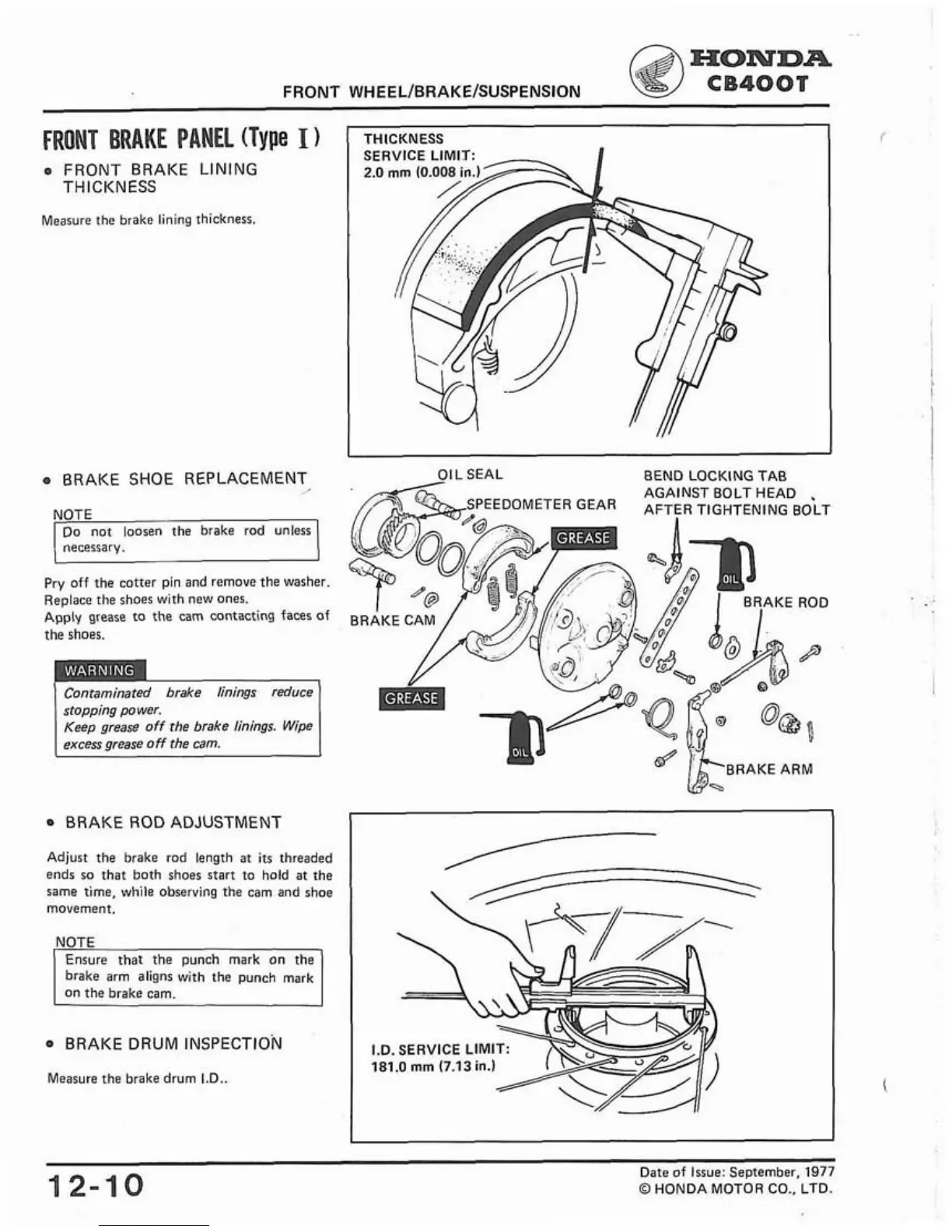

FRONT WHEEL/BRAKE/SUSPENSION CB400T
FRONT BRAKE PANEL (Type I )
FRONT BRAKE LINING
THICKNESS
Measure the brake lining thickness.
THICKNESS
BRAKE SHOE REPLACEMENT
NOTE
I Do not loosen the brake rod unless 1
necessary.
Pry off the cotter pin and remove the washer.
Replace the shoes with new ones.
Appty grease to the cam contacting faces of
the shoes.
stopping
PO wer.
Keep grease
off the brake linings. Wipe
BRAKE ROD ADJUSTMENT
Adjust the brake rod length at its threaded
ends so that both shoes start to hold
at the
same time, while observing the cam and shoe
movement.
brake arm aligns with the punch mark
BRAKE DRUM INSPECTION
Measure the brake drum 1.0..
I.D. SERVICE LlMl
181.0 mm (7.13 in.)
12-10
Date of Issue: September, 1977
O HONDA MOTOR CO.. LTD.
