HONDA
FRONT
WHEEL/BRAKE/SUSPENSION
CB4OOT

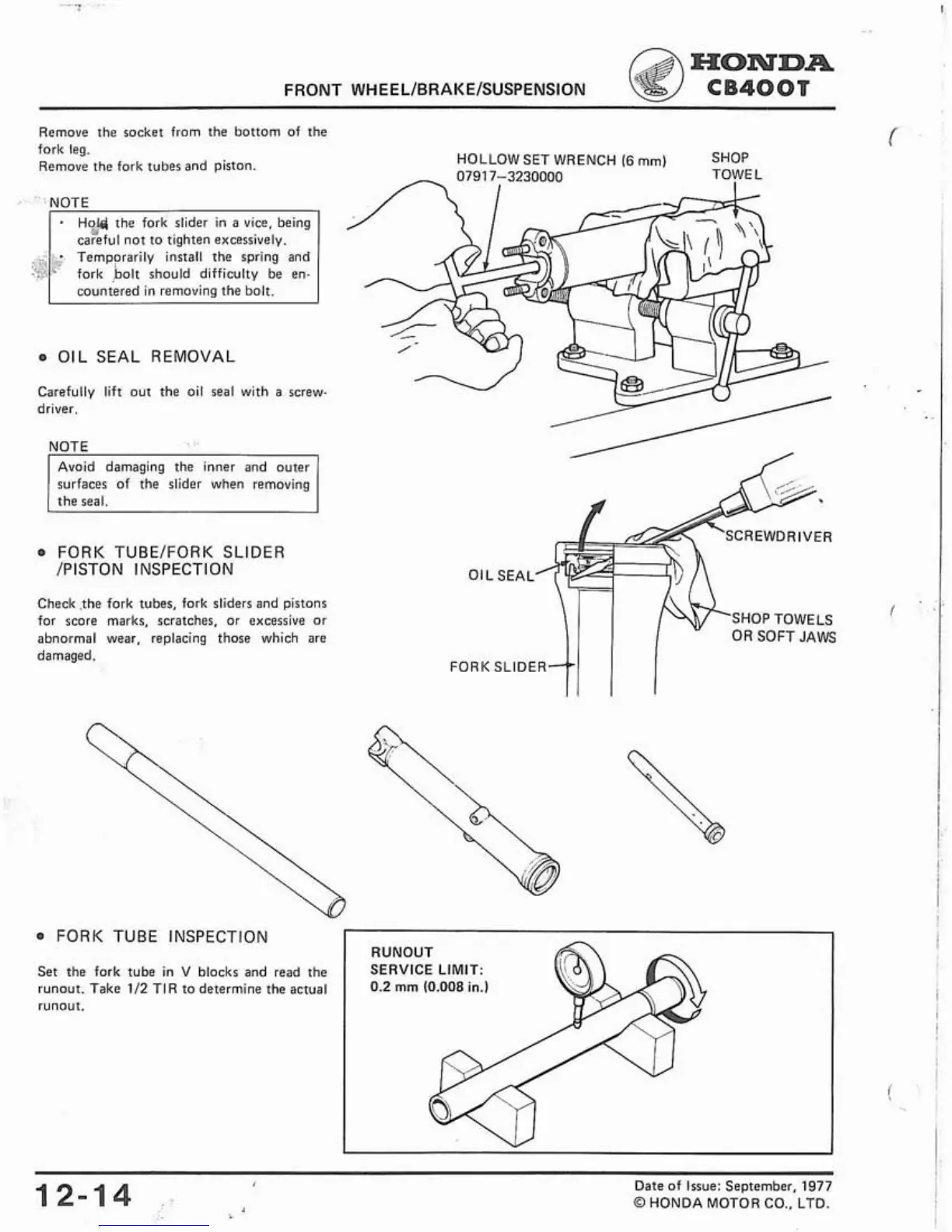

Remove the socket from the bottom of the
fork leg.
Remove the fork tubes and piston
"
NOTE
I
.
HoU the fork slider in a vice, beins
I
.
~.
ca?eful not to tighten excesrively.
-
.
.
Temporarily install the spring and
>
.
fork ,bolt should difficulty be en-
countered in rernovina the bolt.
OIL SEAL REMOVAL
Carefully lift out the oil seal with a screw-
driver.
NOTE
Avoid damaging the inner and outer
surfaces of the slider when removing
the seal.
FORK TUBEIFORK SLIDER
/PISTON INSPECTION
Check the fork tubes, fork sliders and pistons
for score marks, scratches, or excessive or
abnormal wear, replacing those which are
damaged.
HOLLOW SET WRENCH
(6
mm)
SHOP
791 7-3230000
OIL SEAL
SHOP TOWELS
OR SOFT JAWS
FORK TUBE INSPECTION
Set the fork tube in
V
blocks and read the
runout. Take 112 TIR to determine the actual
runout.
0.2
rnm
(0.008 in.)
12-14
..
