Honda CM400A - Master Piston O.D. Inspection

HONDA
CB400T
'79 ADDENDUM

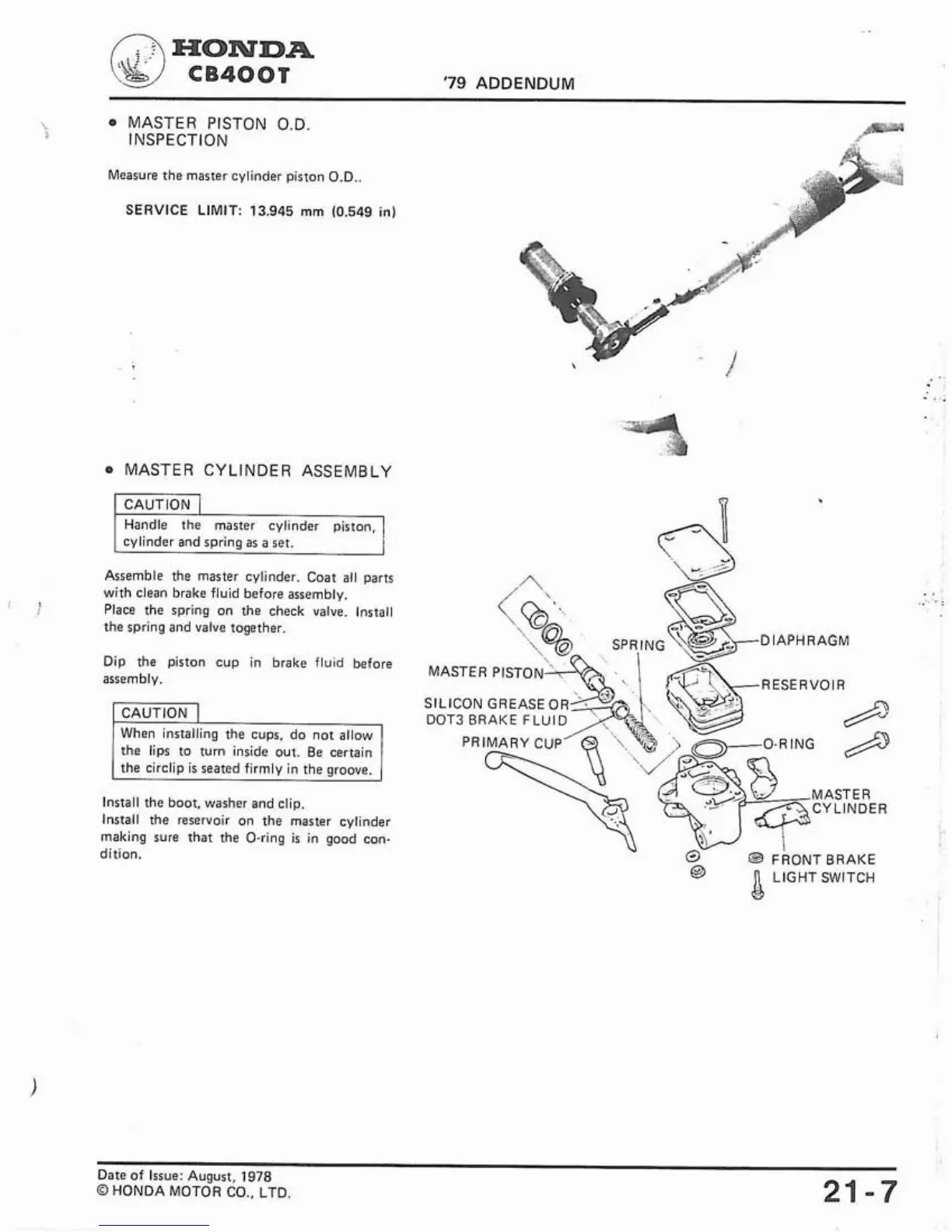

MASTER PISTON O.D.
INSPECTION
Measure the master cylinder piston O.D..
SERVICE LIMIT: 13.945 mm 10.549 in)
MASTER CYLINDER ASSEMBLY
CAUTION /
Handle the master cylinder piston. 1
/ cylinder and spring as a set.
I
Assemble the master cylinder. Coat all parts
with clean brake fluid before assembly.
1
Place the spring on the check valve. Install
the spring and valve together.
Dip the piston cup in brake fluid before
assembly.
DOT3 BRAKE FLUID
the lips to turn inside out. Be certain
Install the boot, washer and clip.
Install the reservoir on the master cylinder
making sure that the O-ring
is in good con-
dition.
€3 FRONT BRAKE
@ LIGHT SWITCH
Date of Issue: August,
1978
@ HONDA MOTOR CO.. LTD.
21 -7
