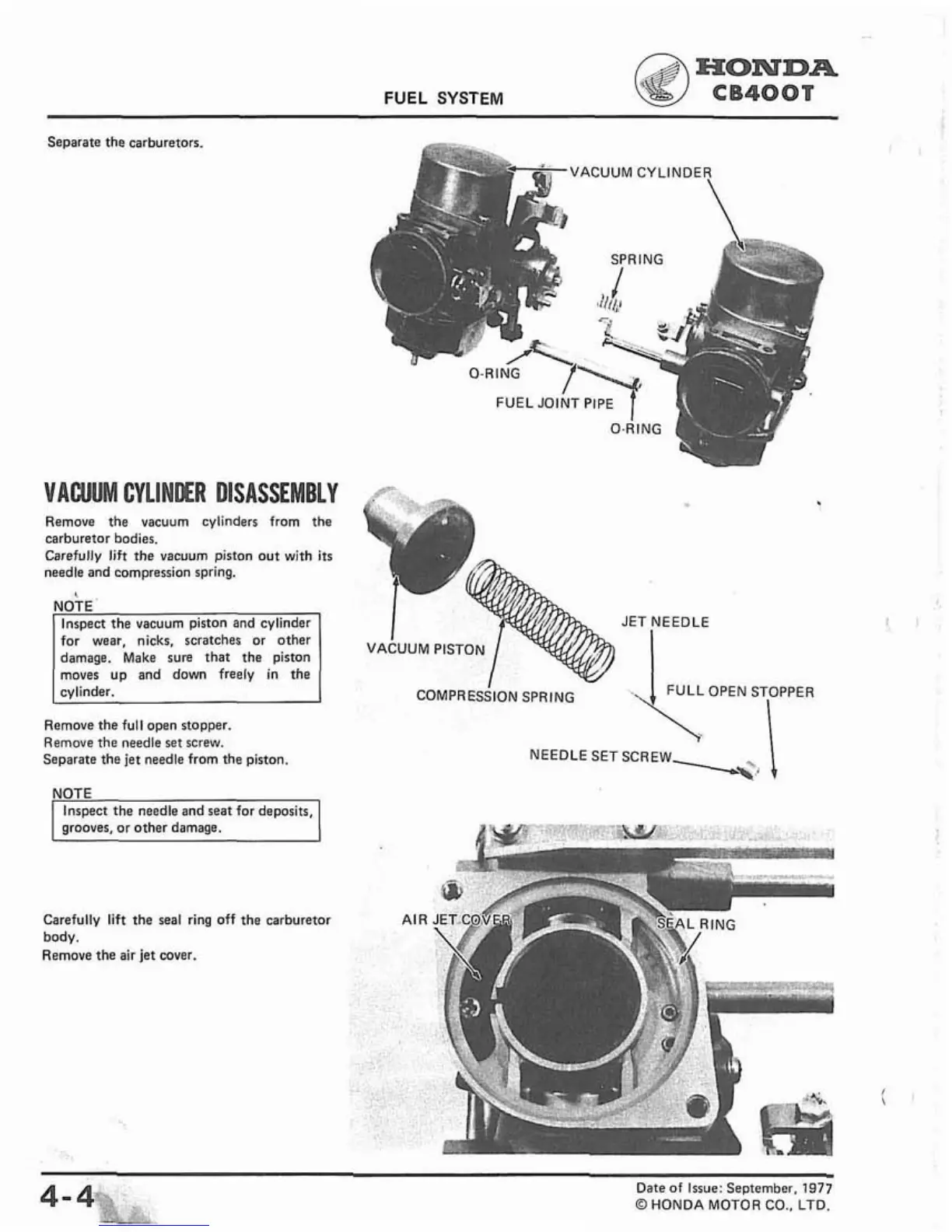

Separate the carburetors.
VACUUM CYLINOER DISASSEMBLY
Remove the vacuum cylinders from the
carburetor bodies.
Carefully lift the vacuum piston out with its
needle and compression spring.
I
for wear, nicks, scratches or other
damage. Make sure that the piston
moves up and down freely in the
cvlinder.
Remove the full open stopper.
Remove the needle set screw.
Separate the jet needle from the piston.
NOTE
Inspect the needle and seat for deposits,
grooves, or other damage.
Carefully
lift
the seal ring off the carburetor
body.
Remove the air jet cover.
AIR
NEEDLE SETSCREW
\<!
-
