CYLlNDERlPlSTON

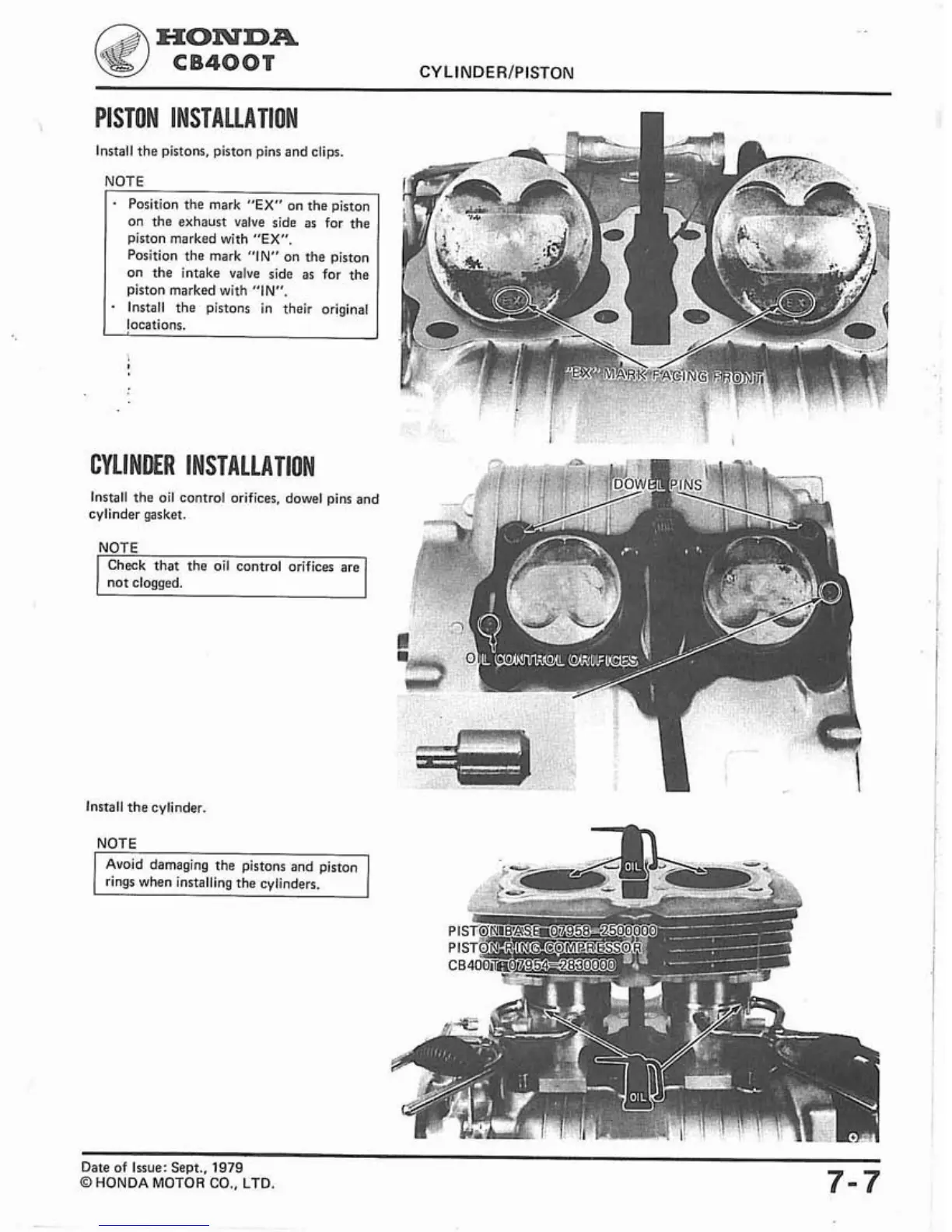

PISTON INSTALLATION
Install the pistons, piston pins and clips.
on the exhaust valve side
as
for the
piston marked with
"EX".
Position the mark "IN" on the piston
on the intake valve side
as
for the
piston marked with "IN".
Install the pistons in their original
CYLINDER INSTALLATION
Install the oil control orifices, dowel pins and
cylinder gasket.
NOTE
I
Check that the oil control orifices are
1
(
not clogged.
lnstall thecylinder.
NOTE
Avoid damaging the pistons and piston
rings when installing the cylinders.
Date of
Issue: Sept.,
1979
O
HONDA MOTOR CO., LTD.
7-7
