HONDA
CY
LINDERIPISTON
CB400T

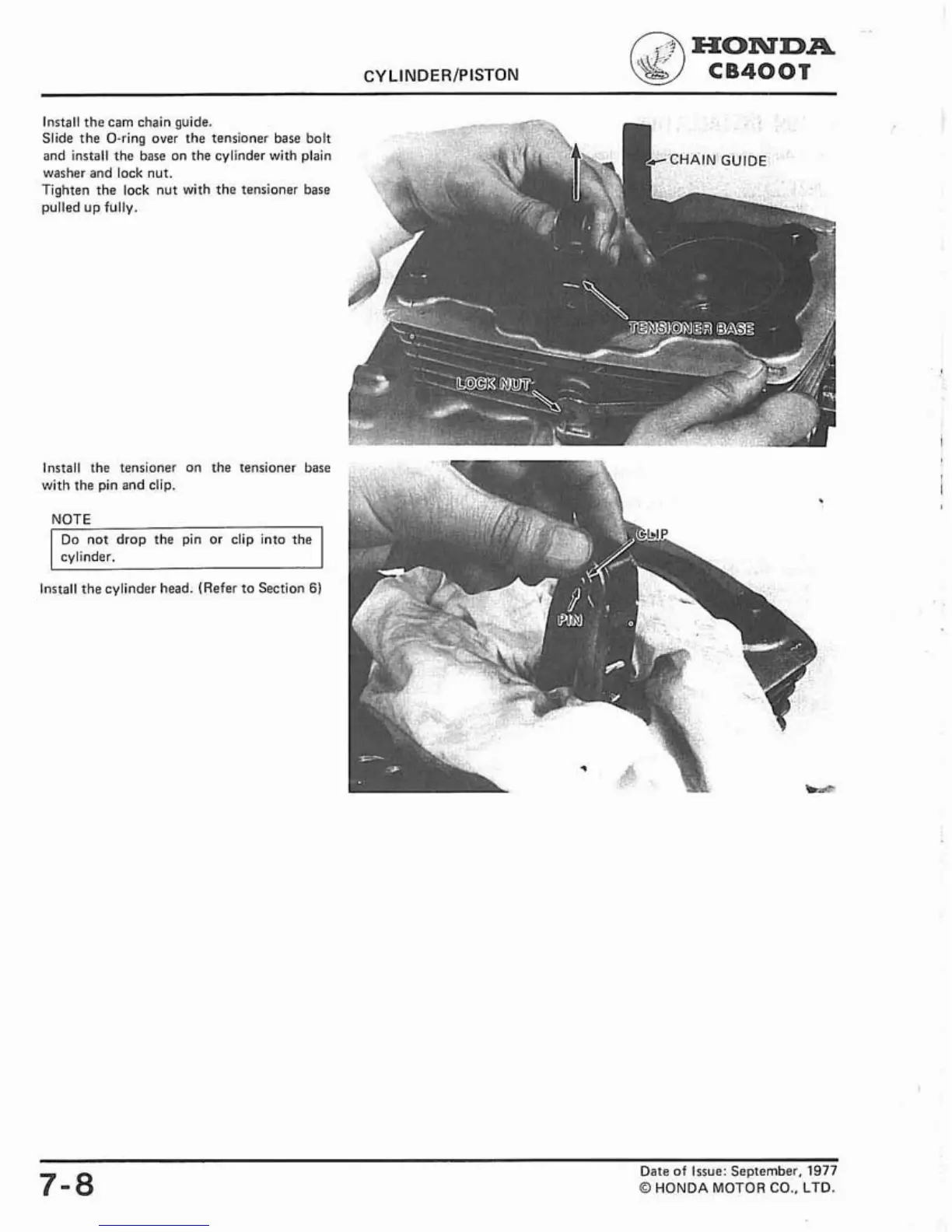

Install the cam chain guide.
Slide the O-ring over the tensioner base bolt
and install the base on the cylinder with plain
washer and lock nut.
Tighten the lock nut with the tensioner base
pulled up fully.
Install the tensioner on the tensioner base
with the pin and clip.
NOTE
Do not drop the pin or clip into the
cylinder.
Install the cylinder head. (Refer to Section
6)
7-8
Dateof Issue: September,
1977
O
HONDA MOTOR CO..
LTD.
