Honda CM400A - Front Fork Assembly

HONDA
CB480T FRONT WHEELIBRAKEISUSPENSION

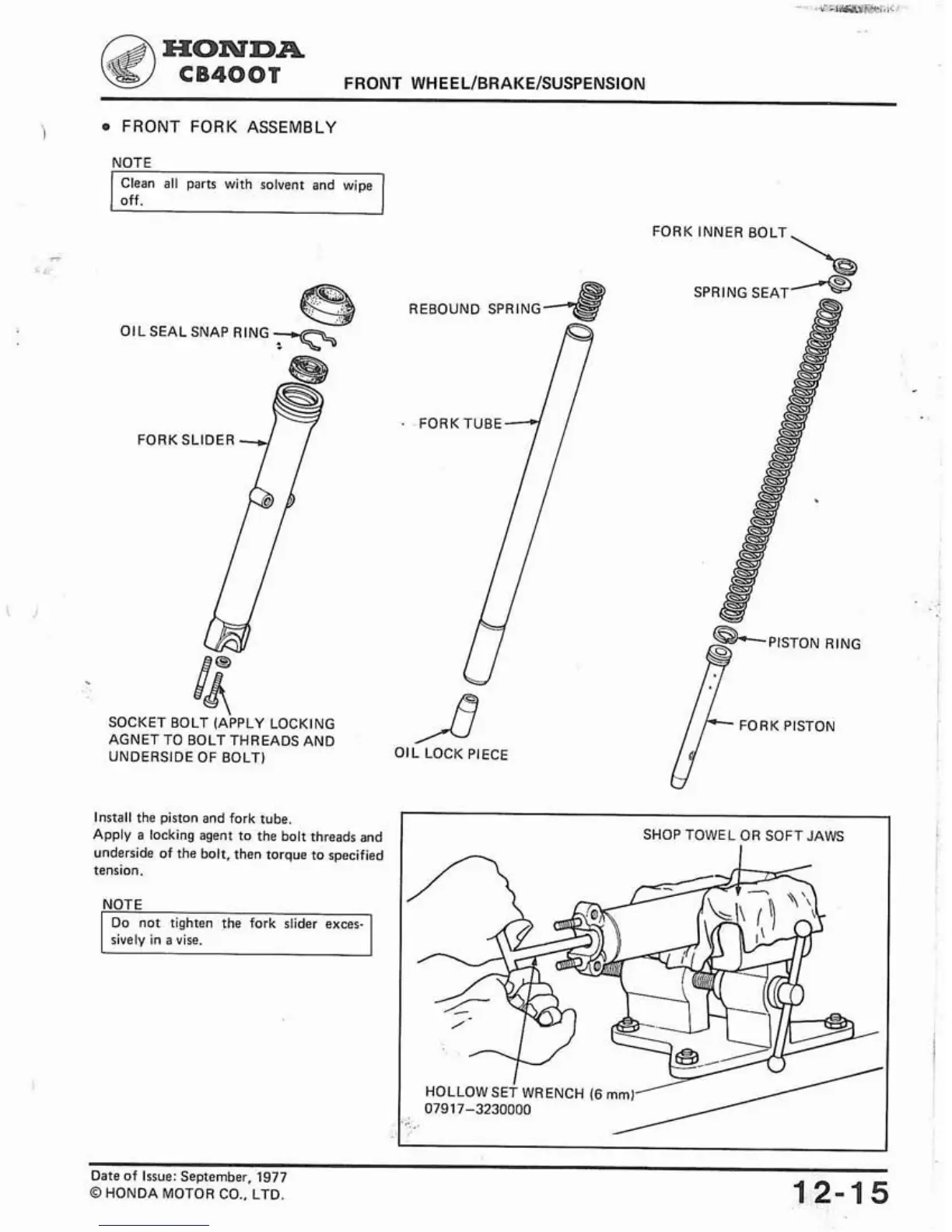

FRONT FORK ASSEMBLY
NOTE
Clean
all parts with solvent and wipe 1
I off.
OILSEAL SNAP RING
FORK SLIDER
SOCKET BOLT (APPLY LOCKING
AGNETTO BOLT THREADS AND
UNDERSIDE OF BOLT)
Install the piston and fork tube.
Apply
a locking agent to the bolt threads and
underside of the bolt, then torque to specified
tension.
NOTE
Do not tighten the fork slider exces-
sively in a vise.
3
OIL LOCK PIECE
SHOP TOWEL OR SOFT JAWS
I I
Date of Issue: September, 1977
o HONDA MOTOR co.. LTD.
12-15
