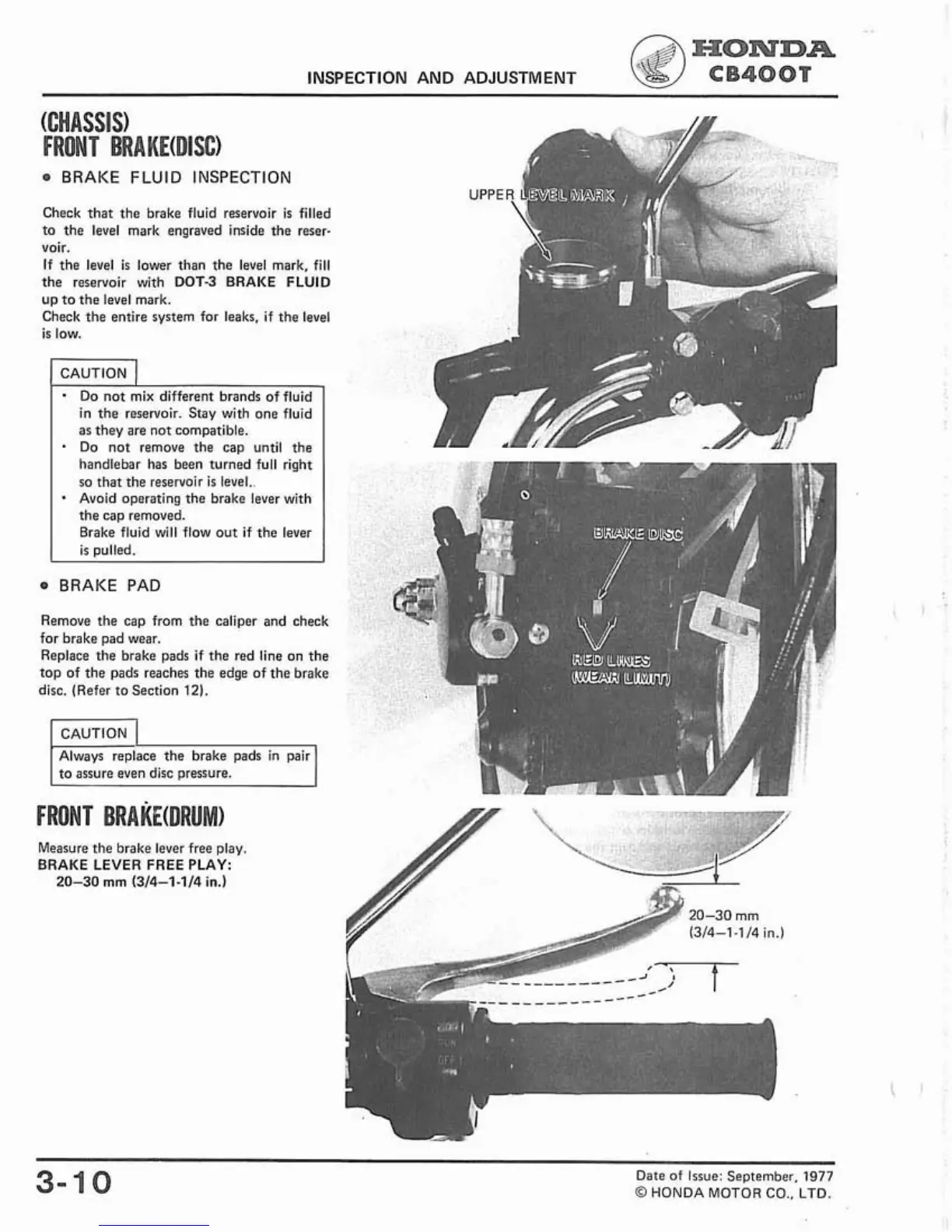

INSPECTION AND ADJUSTMENT CB4OOT
(CHASSIS)
FRONT BWAKE(DISC)
8 BRAKE FLUID INSPECTION
UPPE
Check that the brake fluid reservoir
is filled
.,. ,
to the level mark engraved inside the reser-
voir.
If the level
is lower than the level mark, fill
the reservoir with
DOT-3 BRAKE FLUID
up to the level mark.
Check the entire system for leaks, if the level
is low.
CAUTION
- Do not mix different brands of fluid
in the reservoir. Stay with one fluid
as they are not
compatible.
Do not remove the cap until the
handlebar has been turned full right
so that the reservoir
is level..
Avoid operating the brake lever with
the cap removed.
Brake fluid will flow out if the lever
is pulled.
BRAKE PAD
Remove the cap from the caliper and check
for brake pad wear.
Replace the brake pads if the red line on the
top of the pads reaches the edge of the brake
disc. (Refer to Section
12).
to assure even disc pressure.
FRONT BRAK~DRUM)
Meas~re the brake lever free play.
BRAKE LEVER FREE PLAY:
20-30 mm (314-1.114 in.)
3-10
