Honda CM400A - AC Generator Inspection

HONDA
CB40OT

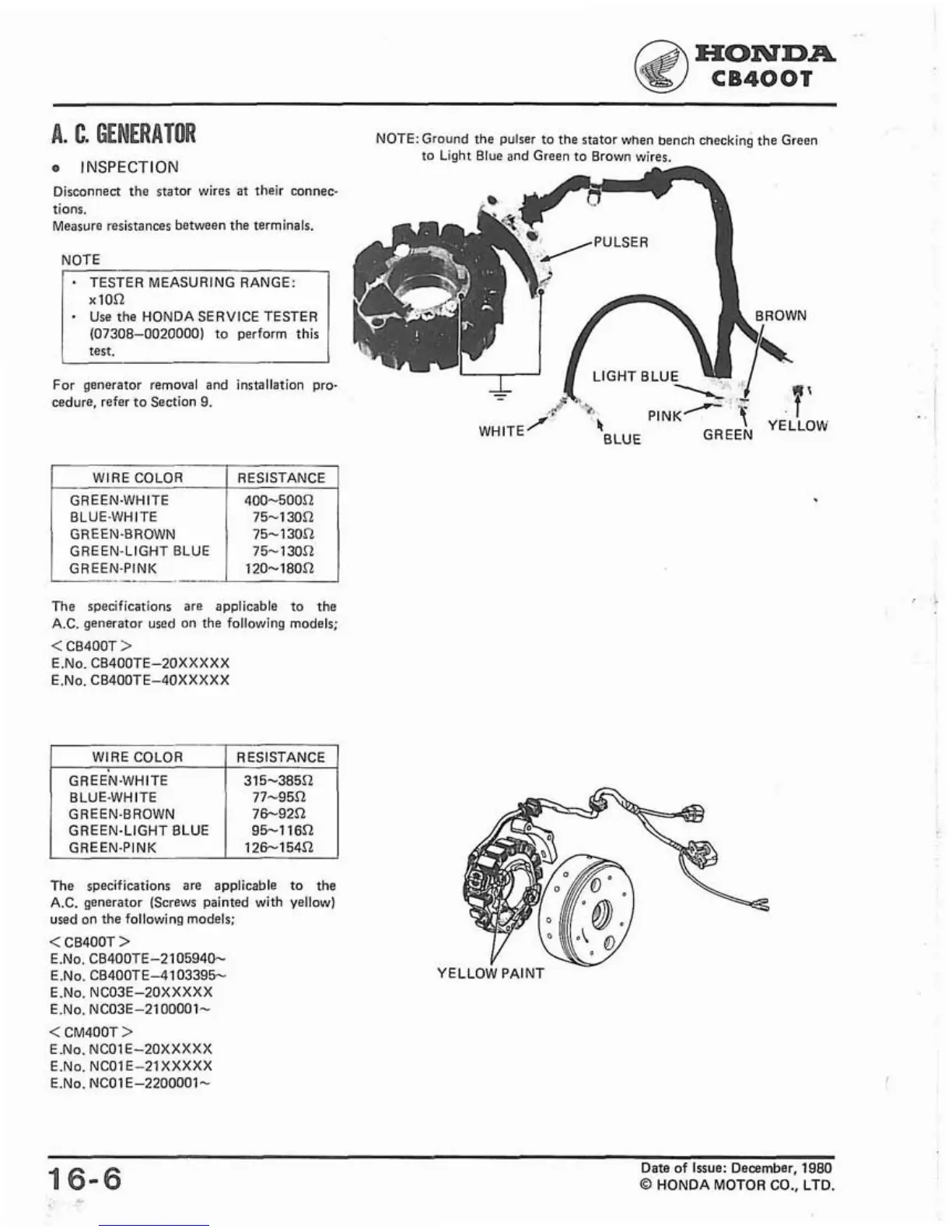

A. C. GENERATOR
INSPECTION
Disconnect the stator wires at their connec-
tions.
Measure resistances between the terminals.
Use the HONDASERVICE TESTER
(07308-0020000) to perform this
test.
For generator removal and installation pro-
cedure. refer to Section 9.
GREEN-WHITE
400-5OOfZ
BLUE-WHITE 75-1 30S2
GREEN-BROWN 75-130.Q
GREEN-LIGHT BLUE 75-1
30S2
GREEN-PINK 120-18OS2
The specifications are applicable to the
A.C. generator used on the following models;
< CB400T >
E.No. CB400TE-20XXXXX
E.No. CB400TE-40XXXXX
--
WIRE COLOR I RESISTANCE
GREE'N-WHITE 315-385S2
BLUE-WHITE 77-950
GREEN-BROWN 76-92.Q
GREEN-LIGHT BLUE 95-1
16S2
GREEN-PINK 126-154.Q
The specifications are applicable to the
A.C. generator (Screws painted with yellow)
used on the following models:
< CB400T >
E.No. CB400TE-2105940-
E.No. CB400TE-4103395-
E.No. NC03E-20XXXXX
E.No. NC03E-2100001-
< CM400T >
E.No. NCOlE-20XXXXX
E.No. NCOlE-21XXXXX
E.No. NCOlE-2200001-
N0TE:Ground the pulser to the stator when bench cneckins the Green
-
to Light Blue and Green to Brown wires.
YELLOW PAINT
16-6
Date of Issue: December, 1980
O HONDA MOTOR CO., LTD.
