HONDA

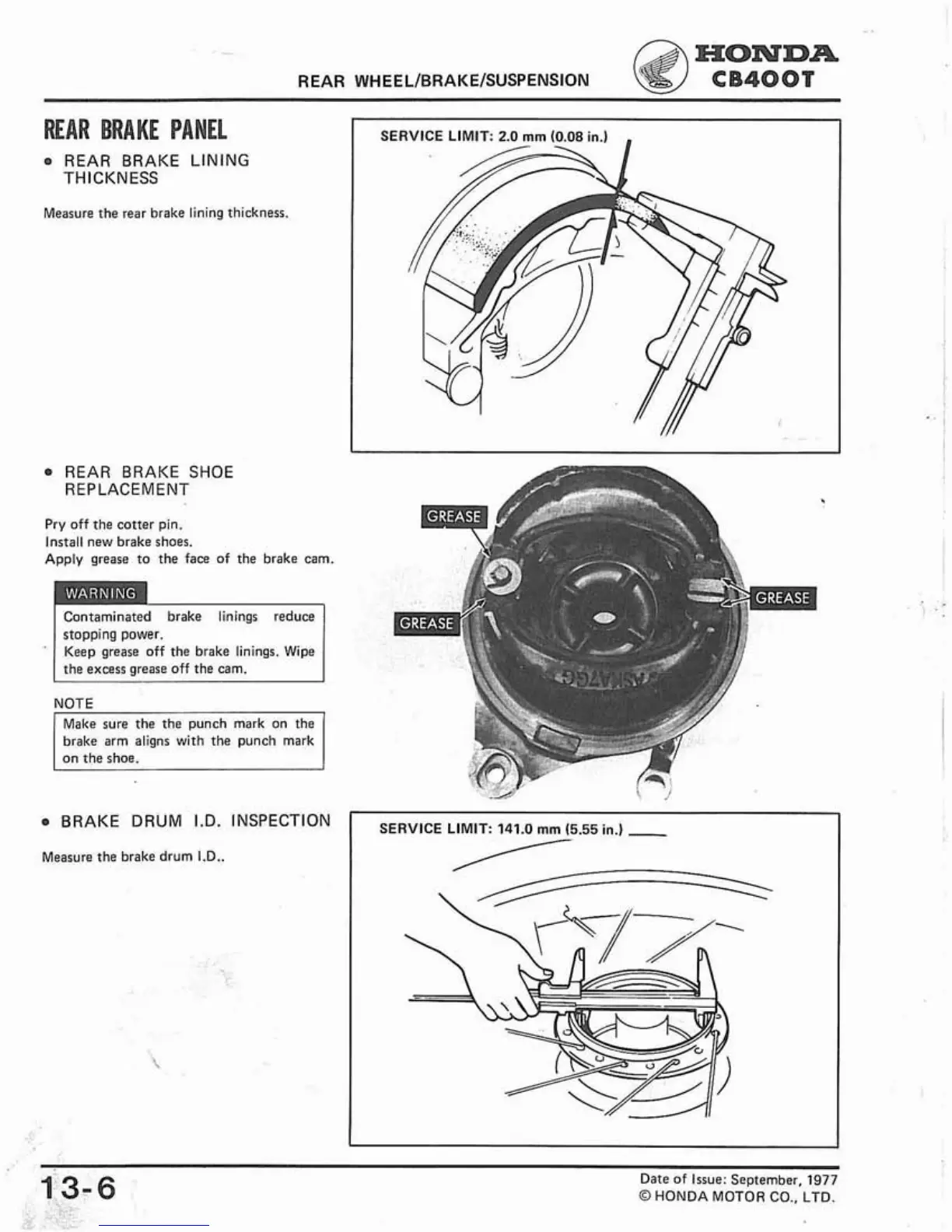

REAR WHEEL/BRAKE/SUSPENSlON CB400T
REAR BRAKE PANEL
REAR BRAKE LINING
THICKNESS
Measure the rear brake lining thickness.
REAR BRAKE SHOE
REPLACEMENT
Pry off the cotter pin.
Install new brake shoes.
Apply grease to the face of the brake cam.
stopplng power.
Make sure the the punch mark on the
brake arm aligns with the punch mark
on the shoe.
i""
BRAKE DRUM I.D. INSPECTION
Measure the brake drum I.D..
SERVICE LIMIT: 141.0 mm (5.55 in.) -
/
1'3- 6
Date of Issue: September, 1977
@ HONDA MOTOR CO., LTD.
