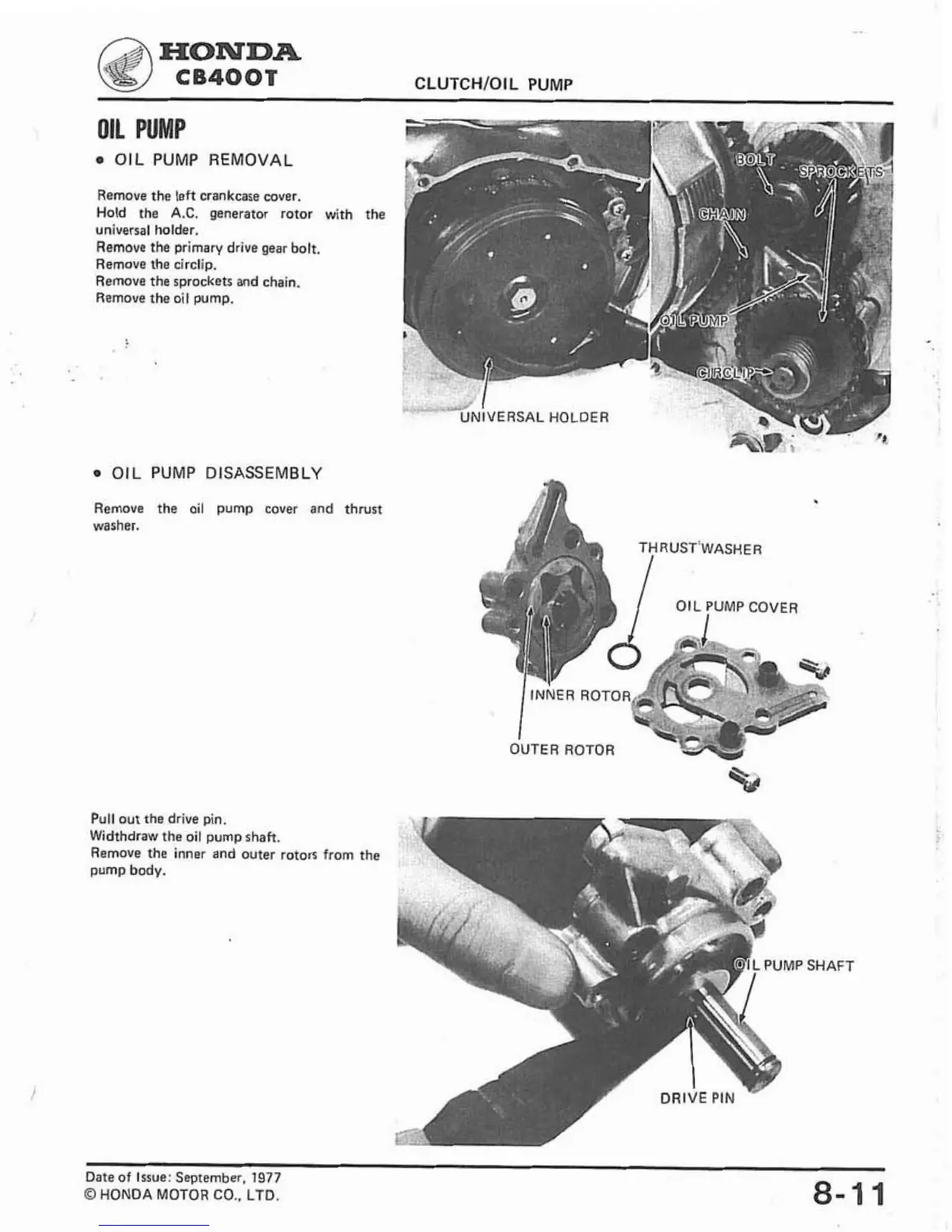

CB400T CLUTCHIOIL PUMP
011 PUMP
OIL PUMP REMOVAL
Remove the left crankcase cover.
Hold the
A.C. generator rotor with the
universal holder.
Remove the primary drive gear bolt.
Remove the circlip.
Remove the sprockets and chain.
Remove the oil pump.
OIL PUMP DISASSEMBLY
Remove the oil pump cover and thrust
washer.
Pull out the drive pin.
Widthdraw the oil pump shaft.
Remove the inner and outer rotors from
pump body.
the
SHAFT
