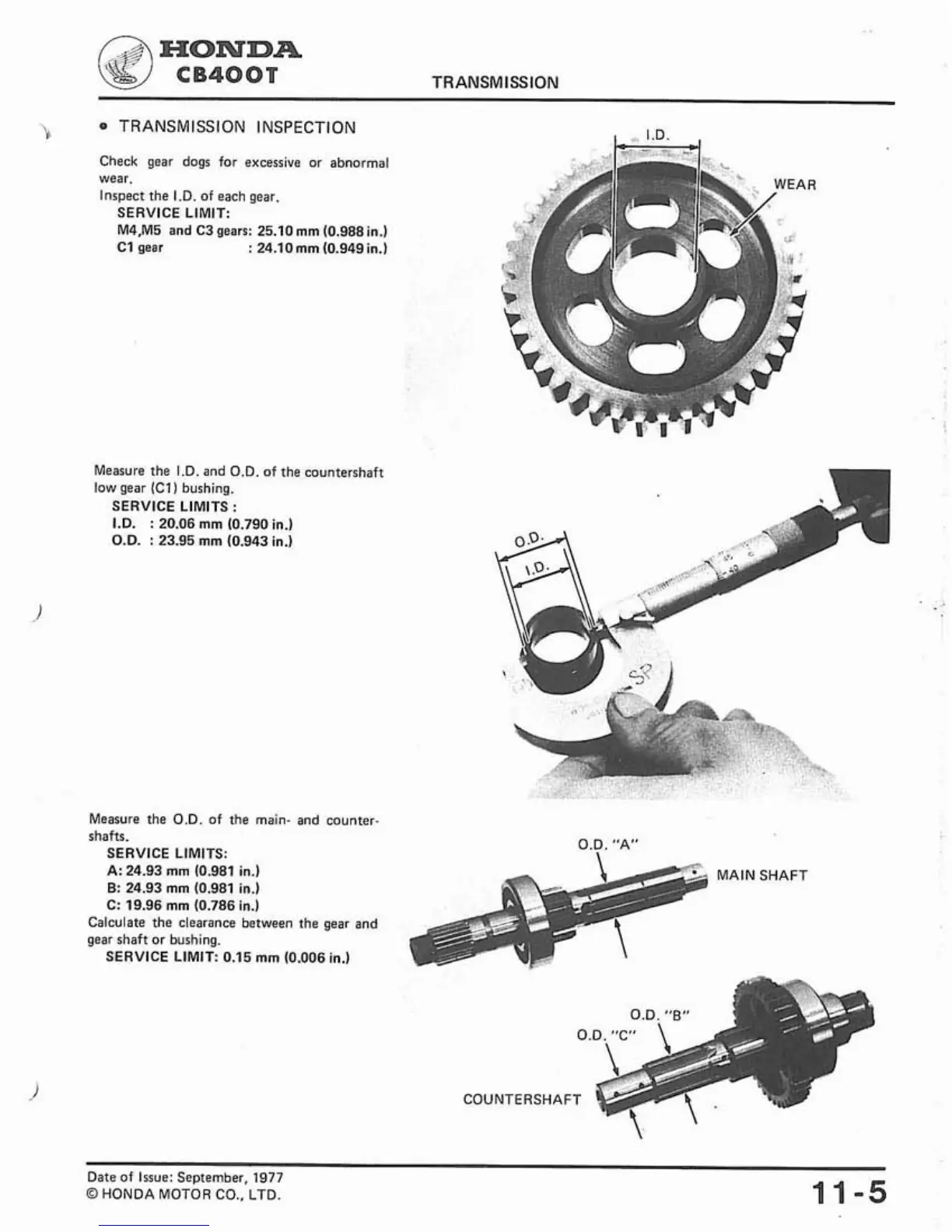

HONDA
C5400T
TRANSMISSION
TRANSMISSION INSPECTION
Check
gear dogs for excessive or abnormal
wear.
Inspect the
1.0.
of each gear.
SERVICE LIMIT:
M4,M5 and C3 gears: 25.10mm (0.988in.)
C1 gear
:
24.10 mm (0.949in.1
Measure the I.D. and O.D. of the countershaft
low gear
(C1) bushing.
SERVICE LIMITS
:
1.0.
:
20.06 mm (0.790 in.)
O.D.
:
23.95 mm (0.943 in.)
Measure the O.D. of the main- and
counter-
shafts.
SERVICE LIMITS:
A:
24.93 mm (0.981 in.)
B:
24.93 mm (0.981 in.)
C: 19.96 mm (0.786 in.)
Calculate the clearance between the gear and
gear shaft or bushing.
SERVICE LIMIT: 0.15 mm (0.006 in.)
O.D. "A"
MAIN SHAFT
Date of Issue: September, 1977
O
HONDA MOTOR CO., LTD.
11
-5
