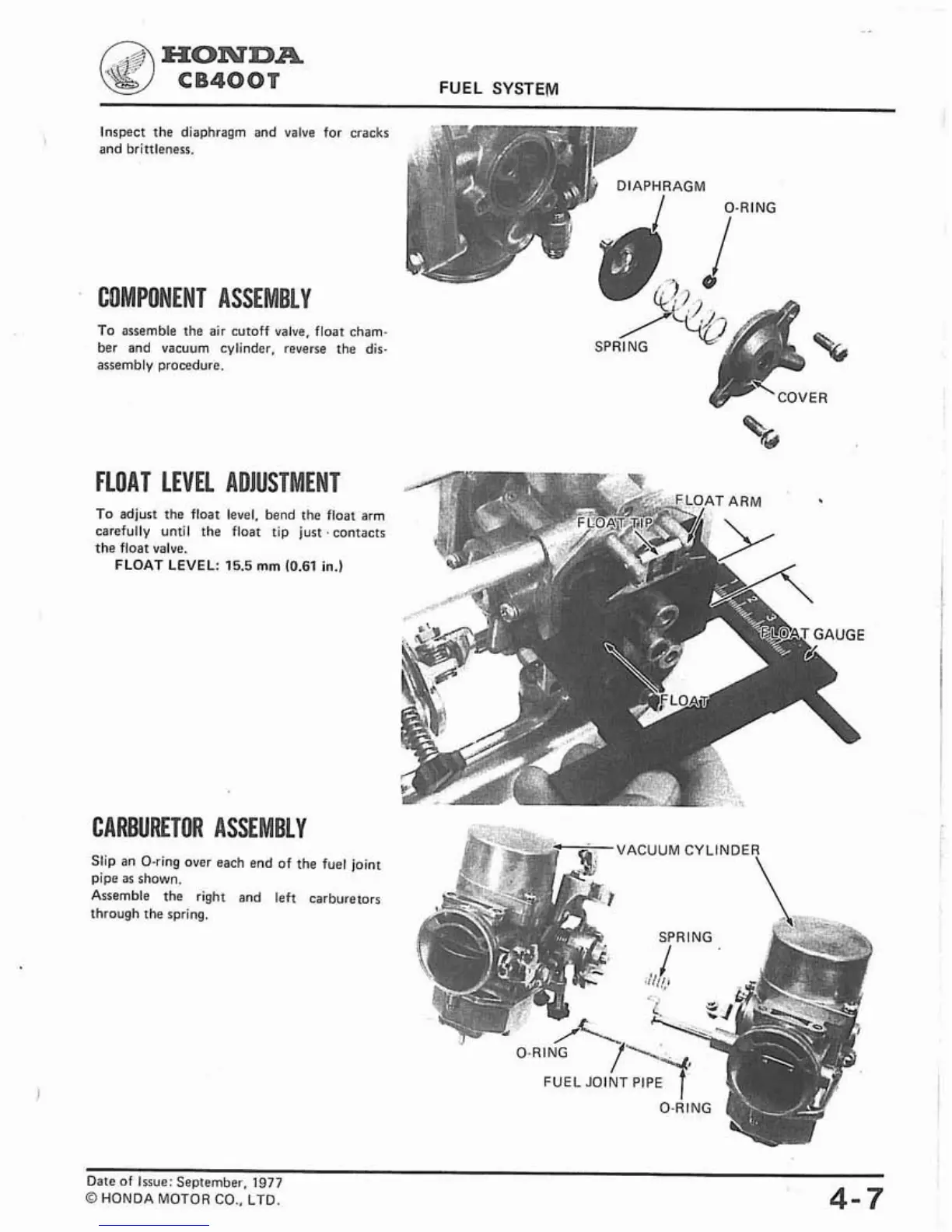

CB400T FUEL SYSTEM
Inspect the diaphragm and valve for cracks
and brittleness.
COMPONENT ASSEMBLY
To assemble the air cutoff valve, float cham-
ber and vacuum cylinder, reverse the dis-
assembly procedure.
FLOAT LEVEL ADJUSTMENT
To adjust the float level, bend the float arm
carefully until the float tip just .contacts
the float valve.
FLOAT LEVEL: 15.5 mm 10.61 in.)
pry-
..*'!'
CARBURETOR ASSEMBLY
Slip an O-ring over each end of the fuel joint
pipe as shown.
Assemble the right and left carburetors
through the spring.
FUEL JOINT PIPE
