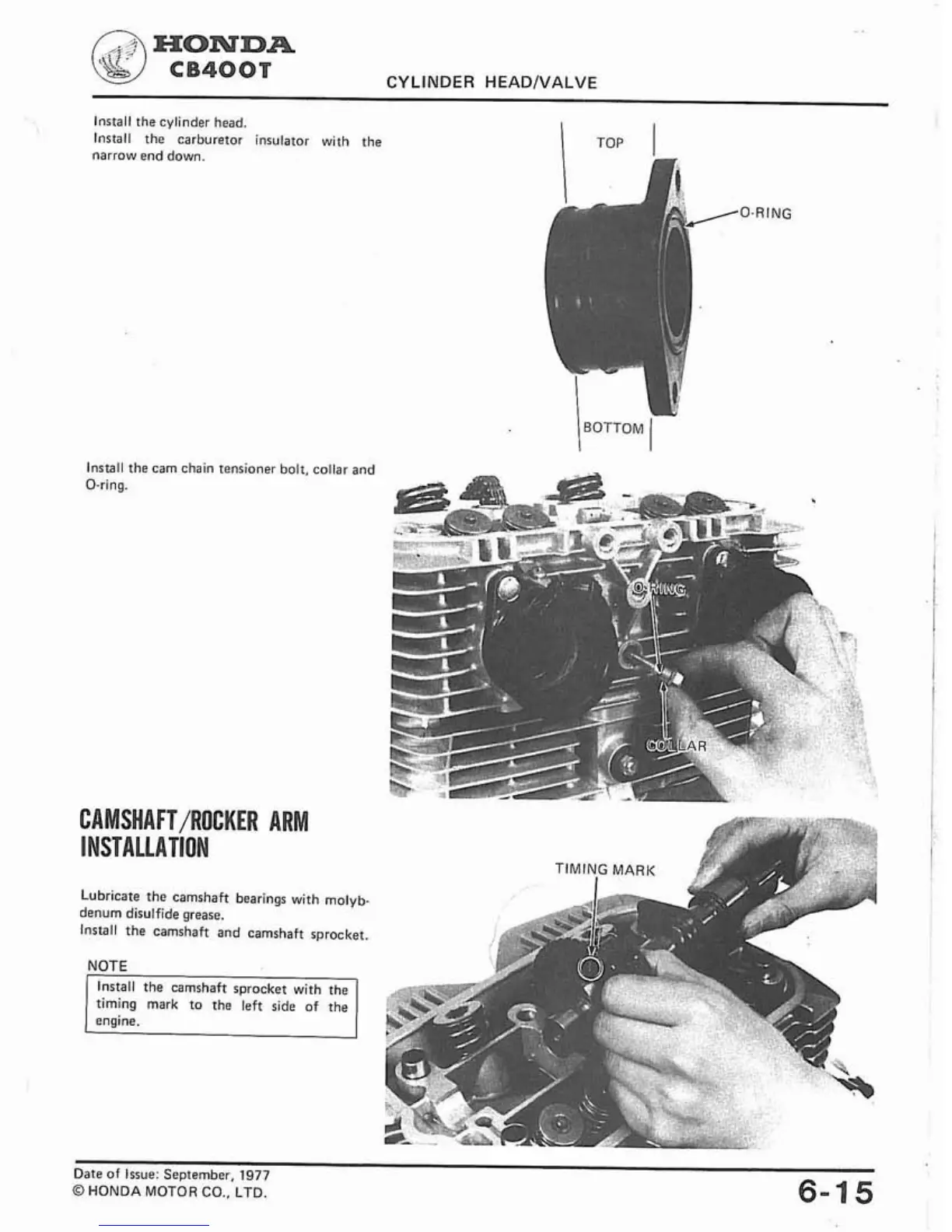

HONDA
CB400T
CYLINDER HEADIVALVE
Install the cylinder head.
Install the carburetor insulator with the
1 TOP
I
narrow
rend down
Install the
O-ring.
cam chain
- bolt,
collar and
CAMSHAFT/ROCKER ARM
I NSTALLATIBN
Lubricate the camshaft bearings with molyb-
denum disulfide grease.
lnstall the camshaft and camshaft sprocket.
NOTE
I Install the camshaft sprocket with the I
timing mark to the left side of the
engine.
Date of Issue: September,
1977
o HONDA MOTOR co., LTD.
6-15
