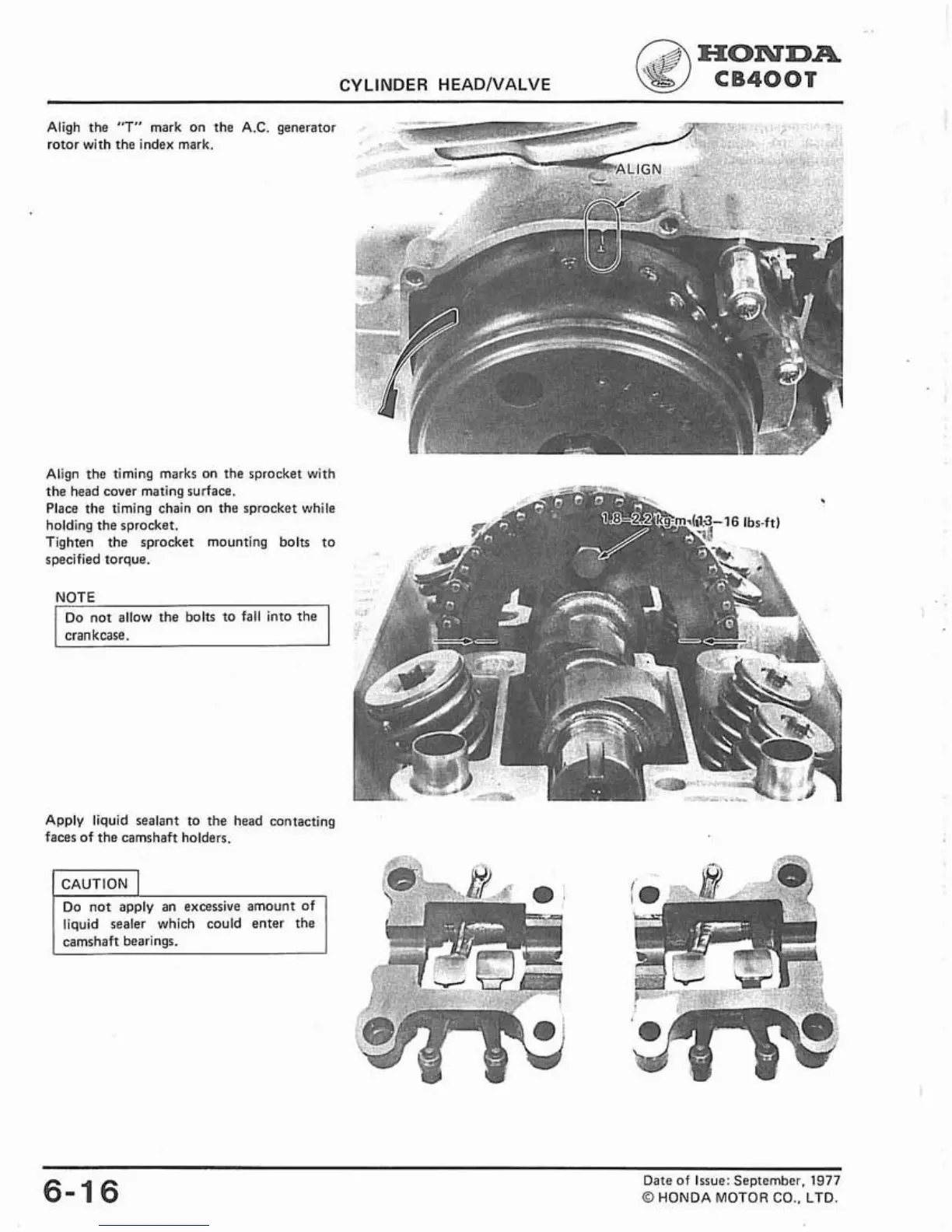

CYLINDER HEADIVALVE
HONDA
CB400T
Aligh the "T" mark on the A.C. generator
rotor with the index mark.
,
.
Aliqn the timing marks on the sprocket with
-
.
the head cover mating surface.
Place the timing chain on the sprocket while
holding the sprocket.
Tighten the sprocket mounting bolts to
specified torque.
NOTE
I
Do not allow the bolts to fall into the
I
crankcase.
Apply liquid sealant to the head contacting
faces of the camshaft holders.
Do not apply an excessive amount of
liquid sealer which could enter the
6-16
Date of Issue: September.
1977
O
HONDA MOTOR CO., LTD.
