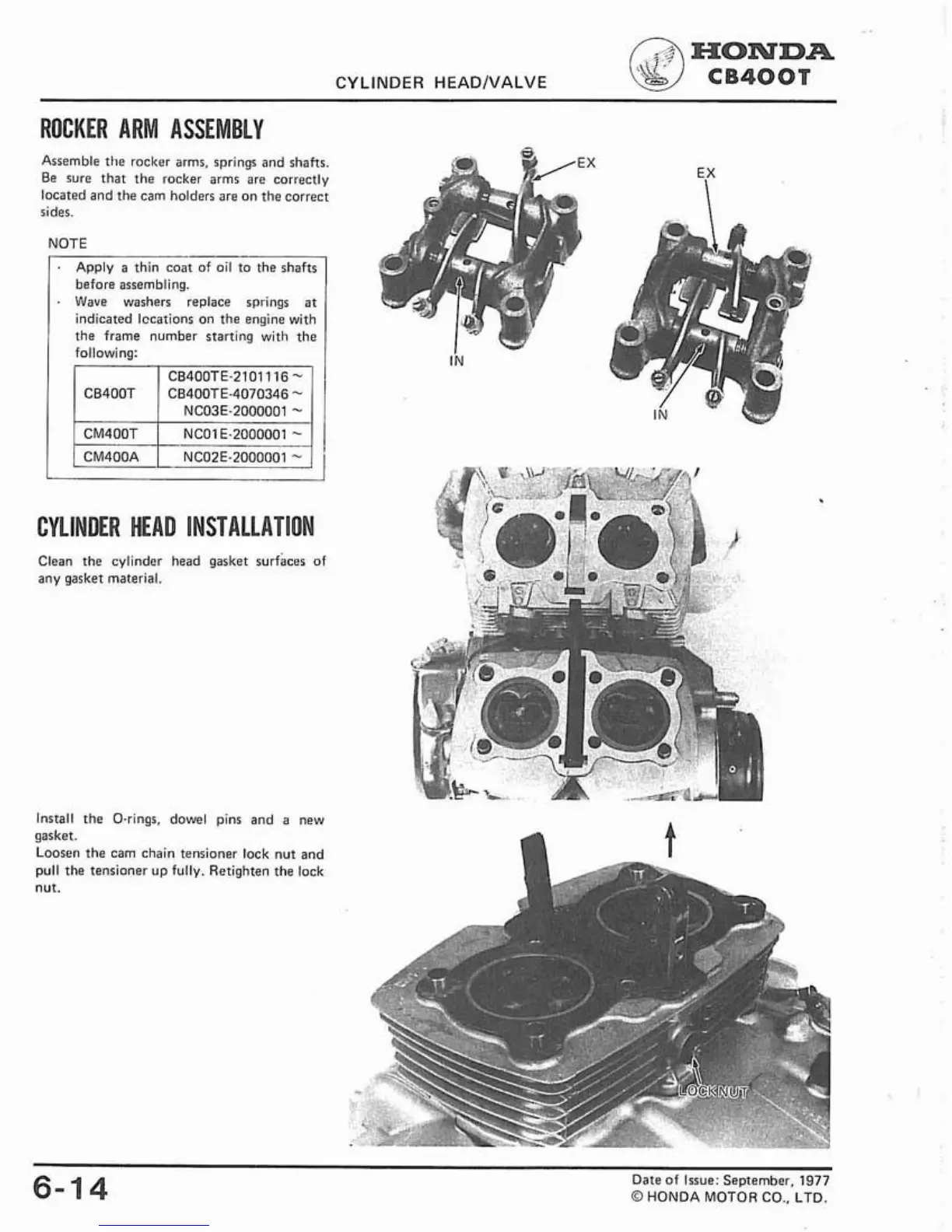

Honda CM400A - Rocker Arm Assembly; Cylinder Head Installation

CYLINDER HEADIVALVE
HONDA
CB4OOT
ROCKER ARM ASSEMBLY
Assemble the rocker arms, springs and shafts.
Be sure that the rocker arms are correctly
located and the cam holders are on the correct
sides.
NOTE
before assembling.
Wave washers replace springs at
indicated locations on the engine with
the frame number starting with the
following:
CYLINDER HEAD INSTALLATION
Clean the cylinder head gasket surfaces of
any gasket material.
Install the O-rings, dowel pins and a new
gasket.
Loosen the cam chain tensioner lock nut and
pull the tensioner up fully. Retighten the lock
nut.
6-14
Date of Issue: September, 1977
O HONDA MOTOR CO.. LTD.
