HONDA

CYLINDERIPISTON

CB400T

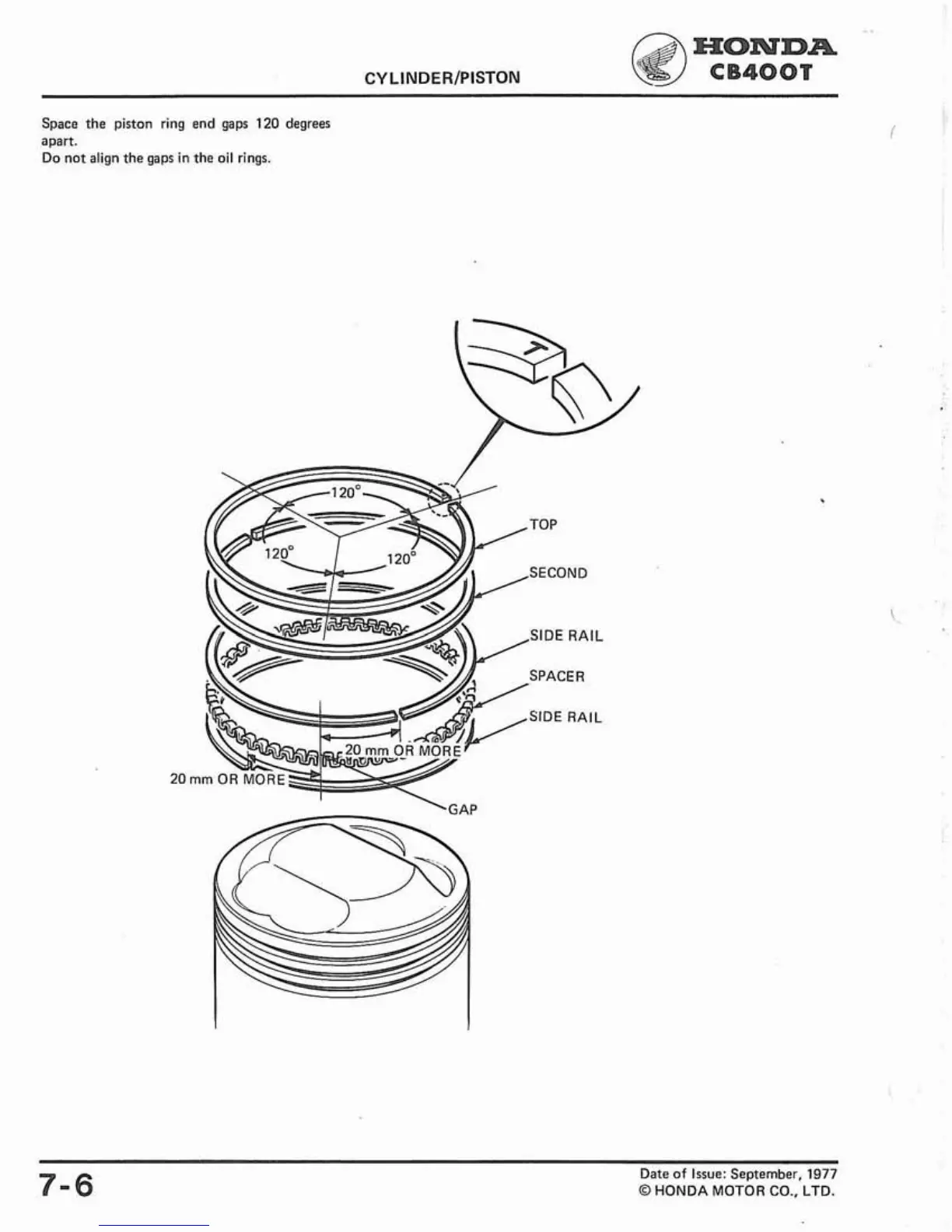

Space the piston ring end gaps

120

degrees

apart.

not align the gaps in the oil rings.

7-6

Date of Issue: September,

1977

HONDA MOTOR CO.,

LTD.
