HONDA
TRANSMISSION
CBLCQOT

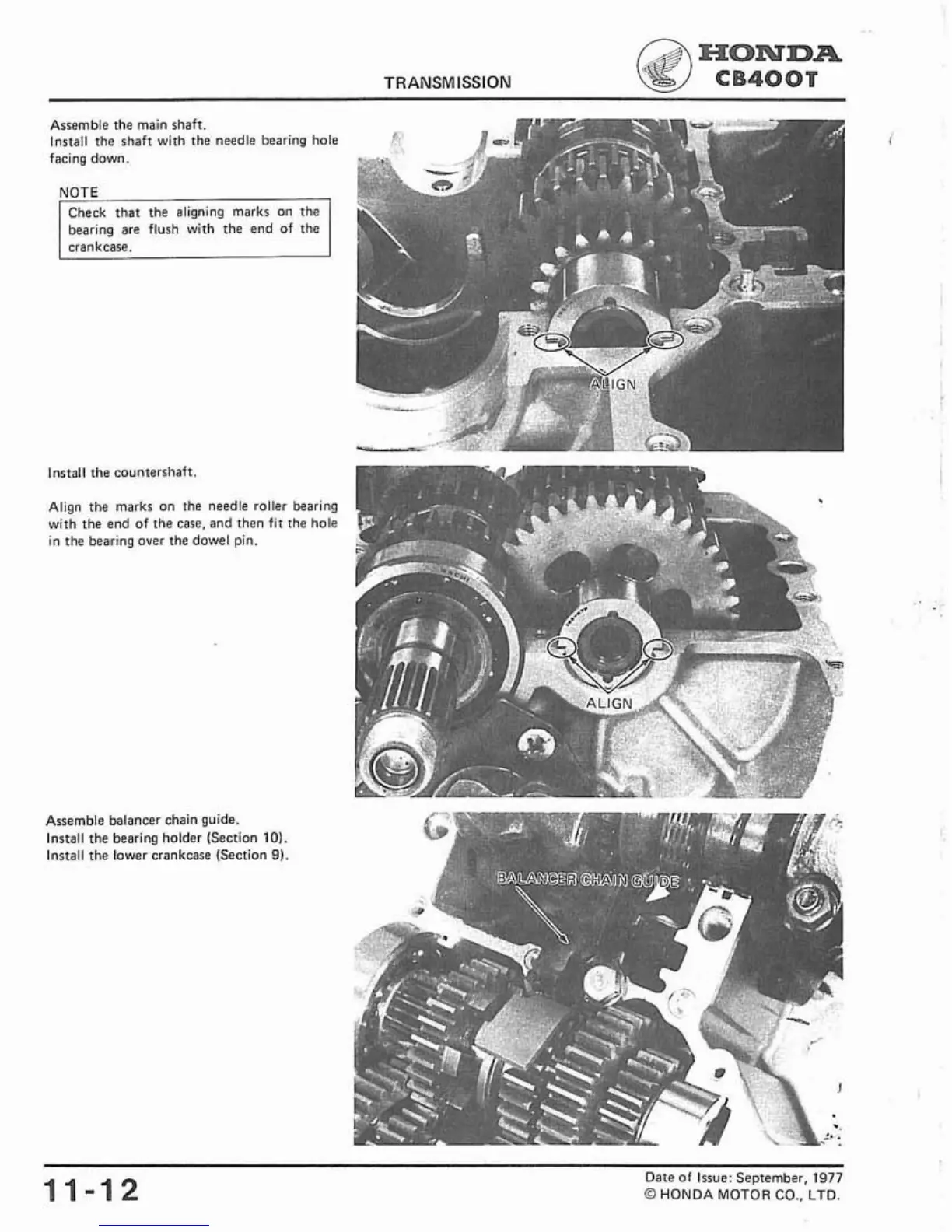

Assemble the main shaft.
Install the shaft with the needle bearing hole
facing down.
bearing are flush with the end of the
crankcase.
Assemble balancer chain guide.
Install the bearing holder (Section 10).
Install the lower crankcase (Section
9).
lnstall the countershaft.
Align the marks on the needle roller bearing
with the end of the case, and then fit the hole
in the bearing over the dowel pin.
11
-1
2
Date of Issue: September, 1977
O
HONDA MOTOR
CO.,
LTD.
