a HONDA
'81 ADDENDUM

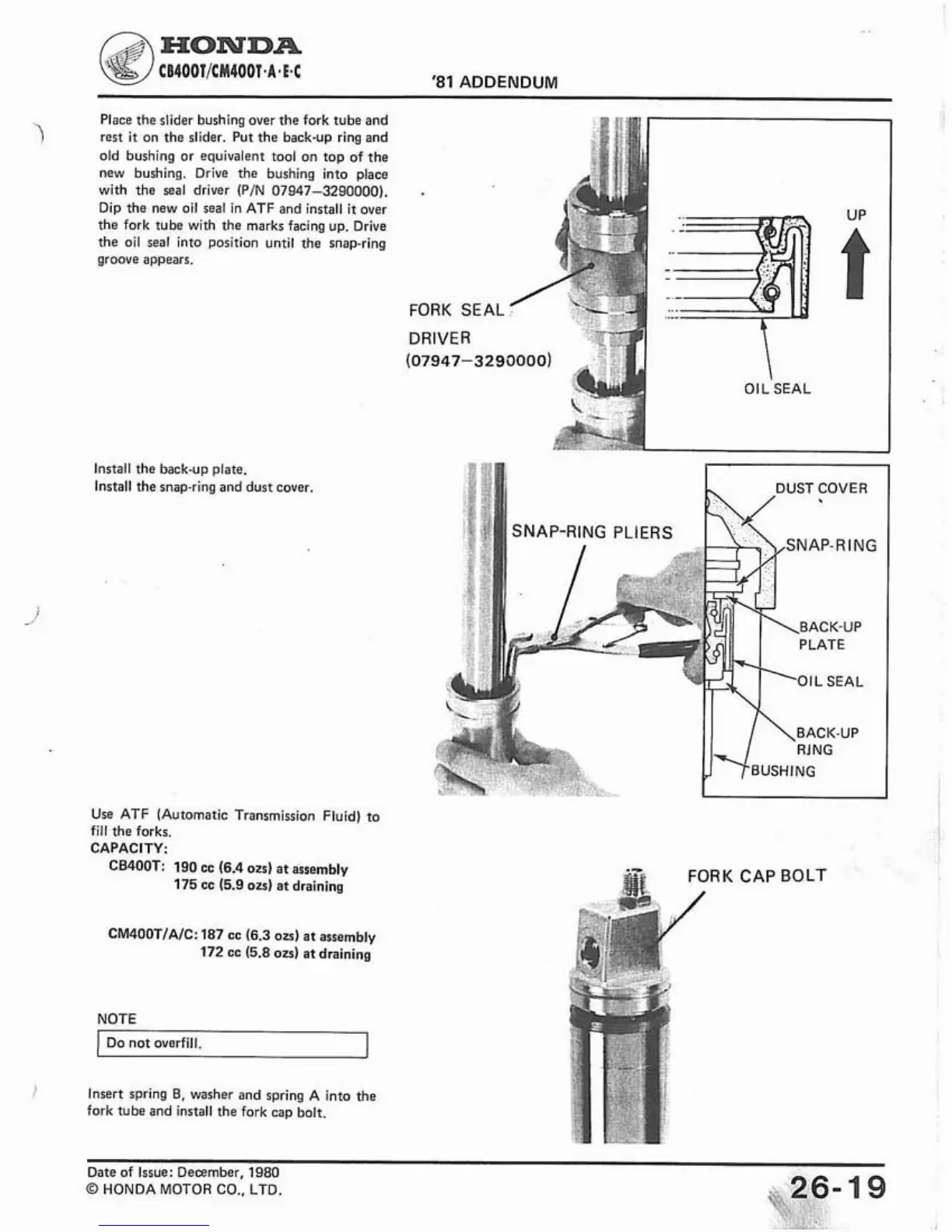

Place the slider bushing over the fork tube and
rest
it on the slider. Put the back-up ring and
old bushing or equivalent tool on top of the
new bushing. Drive the bushing into
place
with the seal driver (PIN 07947-3290000).
.
Dip the new oil seal in ATF and install it over
the fork tube with the marks facing up. Drive
the oil seal into position until the snap-ring
groove appears.
DRIVER
(07947-3290000)
Install the back-up plate.
Install the snap-ring and dust cover.
Use ATF (Automatic Transmission Fluid) to
fill the forks.
CAPACITY:
CB400T: 190 cc (6.4 02s) at assembly
175 cc (5.9 ozs) at draining
CM400TlAlC: 187 cc (6.3 ozs) at assembly
172 cc (5.8 ozsl at draining
NOTE
I Do not overfill. I
Insert spring 8, washer and spring A into the
fork tube and install the fork cap bolt.
FORK CAP BOLT
Date of issue: December, 1980
O HONDA MOTOR CO., LTD.
4- 26- 19
