HONDA
C114001/CM400T.A~E.C '81 ADDENDUM

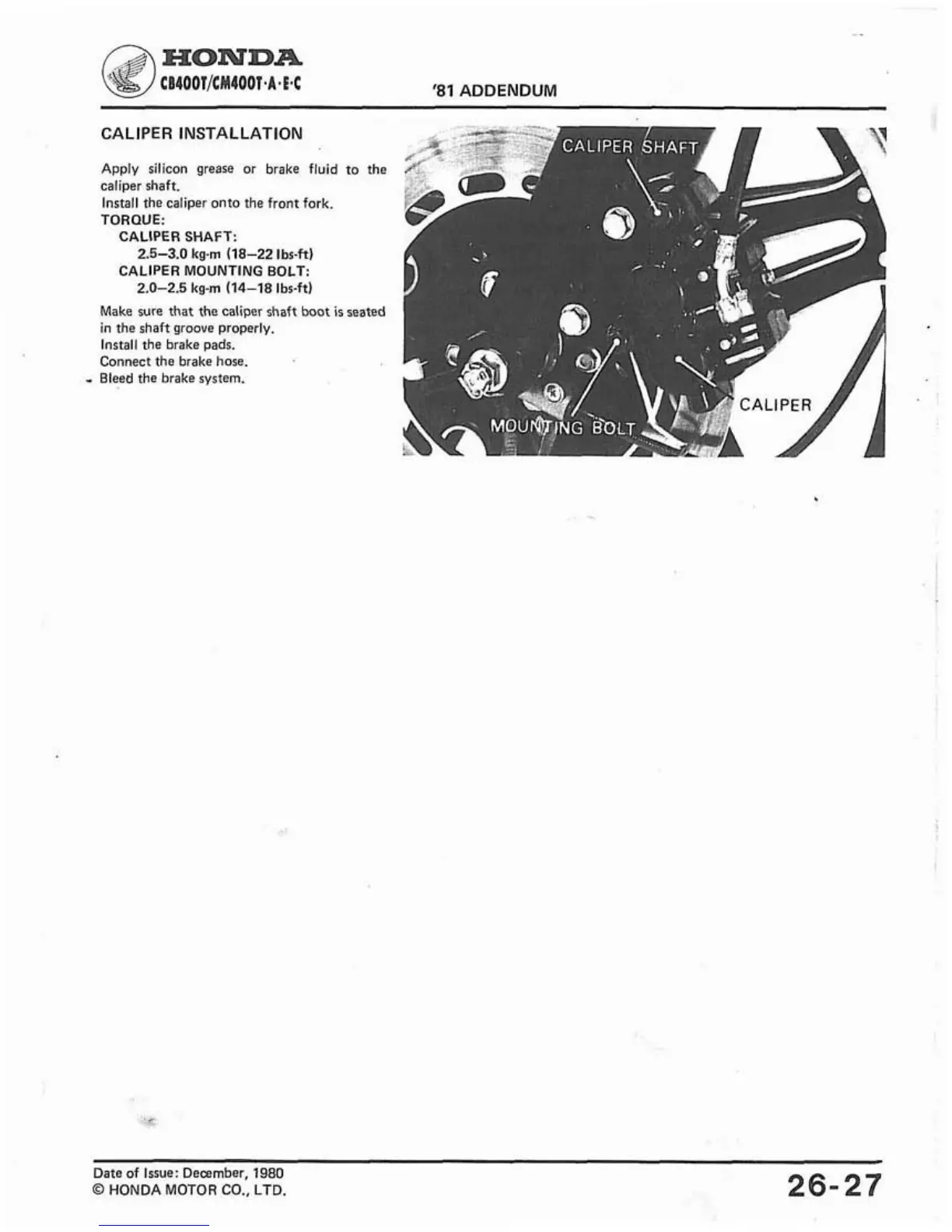

CALIPER INSTALLATION
Apply silicon grease or brake fluid
caliper shaft.
Install the caliper onto the front fork.
TORQUE:
CALIPER SHAFT:
2.5-3.0 kg-rn (18-22 lbs-ft)
CALIPER MOUNTING BOLT:
2.0-2.5 kg-m (14-18 lbs-ft)
Make sure that the caliper shaft boot i!
in the shaft groove properly.
Install the brake pads.
Connect the brake hose.
- Bleed the brake system.
to the
; seated
Date of Issue: December,
1980
o HONDA MOTOR CO., LTD.
26-27
