HONDA
'81 ADDENDUM CB400T/CM400TA.E.C

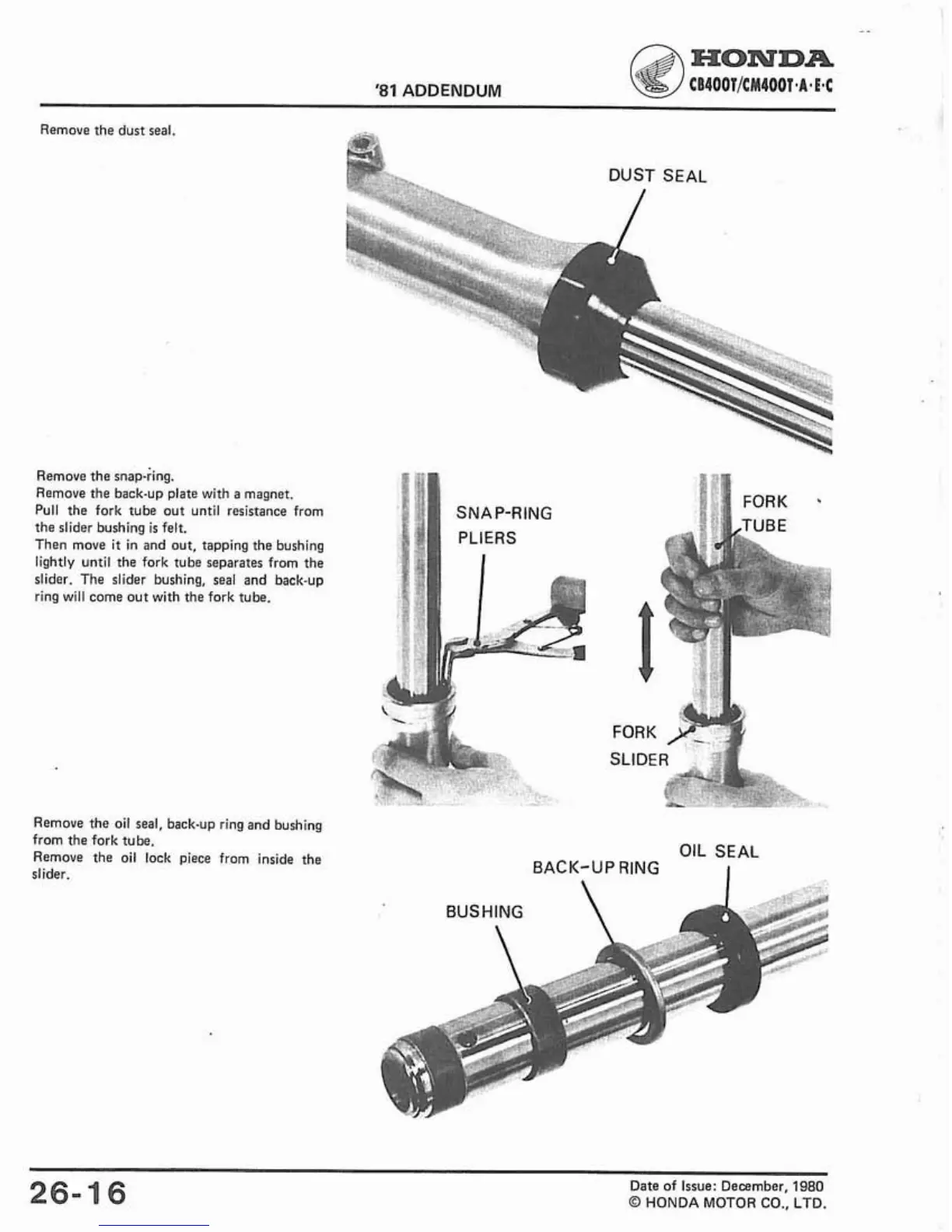

Remove the dust seal.
DUST SEAL
Remove the snap-iing.
Remove the back-up plate with a magnet.
Pull the fork tube out until resistance from
the slider bushing
is felt.
Then move it in and out, tapping the bushing
lightly until the fork tube separates from the
slider. The slider bushing.
seal and back.up
ring will come out with the fork tube.
Remove the oil seal, back-up ring and bushing
from the fork tube.
Remove the oil lock piece from inside the
slider.
"'1
FORK .
OIL SEAL
BACK-UP
RING I
FORK
.j
SLIDER
p..
. .,.
26-16
Date of Issue: December. 1980
0 HONDA MOTOR CO., LTD.
